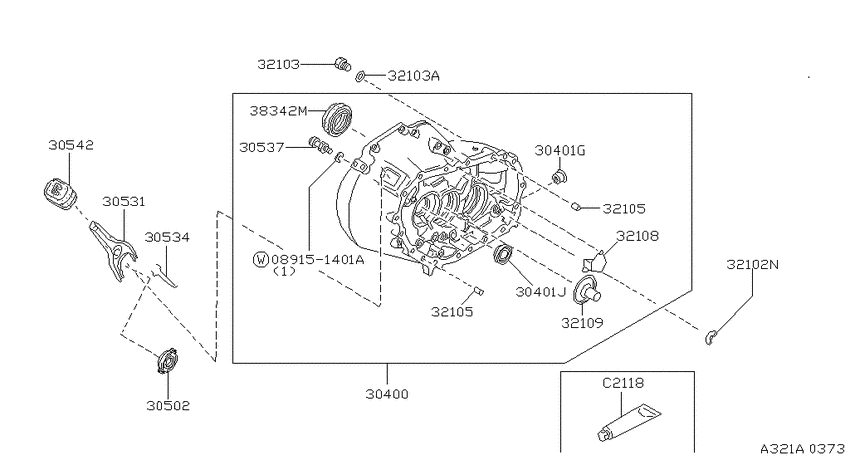

Transmission case & clutch release (1997-06-01 ~ ; CLUTCH HOUSING; MT) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30400
|
30400
30400-30R03
Housing Assy-Clutch
1997-06-01 ~ ; MT; , |
30400-30R03 |
— | ||
|
30401G
|
30401G
32858-03E00 SEAL-OIL,STRIKING ROD1997-06-01 ~ ; MT; , |
32858-03E00 |
from US $6.40 |
||
|
30401J
|
30401J
32113-03E00 SEAL-OIL,INPUT1997-06-01 ~ ; MT; , |
32113-03E00 |
from US $4.01 |
||
|
30502
|
30502
30502-0W715 Bearing-Clutch Release2000-10-01 ~ 2000-11-01; MT; , |
30502-0W715 |
US $75.60 |
||
|
30502
|
30502
30502-0W718 Bearing-Clutch Release1997-06-01 ~ 2000-10-01; MT; , |
30502-0W718 |
US $75.60 |
||
|
30502
|
30502
305021W718 Bearing-Clutch Release2000-11-01 ~ ; MT; , |
305021W718 |
from US $31.62 |
||
|
30531
|
30531
305319E000 LEVER-WITHDRAWAL,CLUTCH1997-06-01 ~ ; MT; , |
305319E000 |
from US $48.67 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER1997-06-01 ~ ; MT; , |
3053403E00 |
from US $1.79 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever1997-06-01 ~ ; MT; , |
305370H601 |
from US $3.64 |
||
|
30542
|
30542
30542-03E10 COVER-DUST,WITHDRAWAL LEVER1997-06-01 ~ ; MT; , |
30542-03E10 |
from US $11.51 |
||
|
32102N
|
32102N
32105-03E01 MAGNET-TRANSAXLE1997-06-01 ~ ; MT; , |
32105-03E01 |
US $3.46 |
||
|
32103
|
32103
32103-03E01 Plug-Drain1997-06-01 ~ ; MT; , |
32103-03E01 |
US $4.18 |
||
|
32103
|
32103
3210303E0A
Plug-Drain
2006-12-01 ~ ; MT; , |
3210303E0A |
— | ||
|
32103
|
32103
18151-10600 Washer-Drain Plug1997-06-01 ~ ; MT; , |
18151-10600 |
US $1.73 |
||
|
32103
|
32103
181511060A
Gasket-Drain Plug
2006-12-01 ~ ; MT; , |
181511060A |
— | ||
|
32103A
|
32103A
18151-10600 Washer-Drain Plug1997-06-01 ~ ; MT; , |
18151-10600 |
US $1.73 |
||
|
32103A
|
32103A
181511060A
Gasket-Drain Plug
2006-12-01 ~ ; MT; , |
181511060A |
— | ||
|
32105
|
32105
32105-C6900 Pin1997-06-01 ~ ; MT; , |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32105-C6900 Pin1997-06-01 ~ ; MT; , |
32105-C6900 |
US $4.18 |
||
|
32108
|
32108
32108-03E00 POCKET-OIL,CLUTCH HOUSING1997-06-01 ~ ; MT; , |
32108-03E00 |
US $2.45 |
||
|
32109
|
32109
32109-03E00 CHANNEL-OIL,MAIN SHAFT FRONT1997-06-01 ~ ; MT; , |
32109-03E00 |
US $1.67 |
||
|
32109
|
32109
32106-03E02 Channel-Oil, Input Shaft Rear1997-06-01 ~ ; MT; , |
32106-03E02 |
US $2.36 |
||
|
38342M
|
38342M
38342-03E01
SEAL-OIL,DIFFERENTIAL CLUTCH HOUSING
1997-06-01 ~ ; MT; , |
38342-03E01 |
— | ||
| replacement | |||||
|
38342M
|
38342M
3834281X01 Seal-Oil, Differential Converter Housing1997-06-01 ~ ; MT; , |
3834281X01 |
from US $6.85 |
||
|
C2118
|
C2118
KP610-00250 Sealant-Fluid1997-06-01 ~ ; MT; , |
KP610-00250 |
US $35.66 |
||
