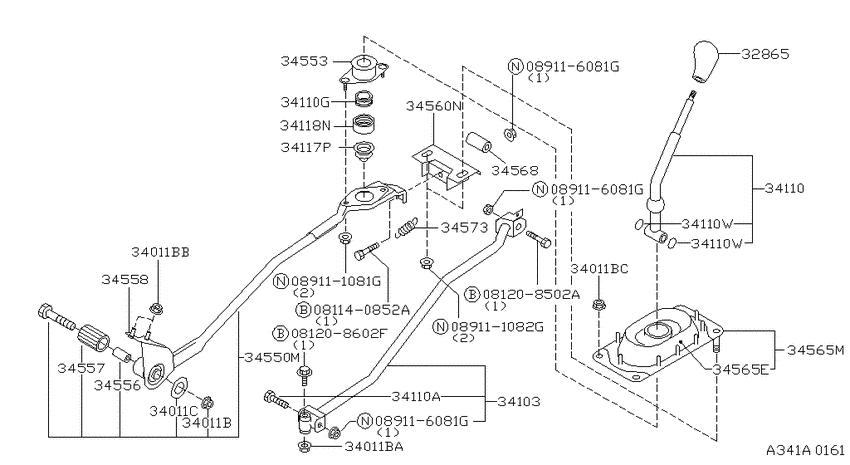

Transmission control & linkage (1999-08-01 ~ ; KA24DE) Diagram Nissan ALTIMA
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081140852A
|
081140852A
08114-0852A
Bolt-hexagon
|
08114-0852A |
— | ||
|
081208502A
|
081208502A
08120-8502A
Bolt-hexagon
|
08120-8502A |
— | ||
|
081208602F
|
081208602F
08120-8602F
Bolt-hexagon
|
08120-8602F |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
32865
|
32865
32865-5B660
Knob-Control Lever
1997-06-01 ~ ; KA24DE.SE.MT; , |
32865-5B660 |
— | ||
|
34011B
|
34011B
0122500261 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500261 |
from US $0.57 |
||
|
34011B
|
34011B
0122500102 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.57 |
||
|
34011B
|
34011B
0122500102 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.57 |
||
|
34011B
|
34011B
0122500371 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500371 |
US $1.73 |
||
|
34011BA
|
34011BA
0122500102 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.57 |
||
|
34011BB
|
34011BB
0122500102 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500102 |
from US $0.57 |
||
|
34011BC
|
34011BC
0122500371 NUT1997-06-01 ~ ; KA24DE.MT; , |
0122500371 |
US $1.73 |
||
|
34011C
|
34011C
34555-D4000 Washer1997-06-01 ~ ; KA24DE.MT; , |
34555-D4000 |
US $3.46 |
||
| replacement | |||||
|
34011C
|
34011C
34555D400A Washer1997-06-01 ~ ; KA24DE.MT; , |
34555D400A |
from US $1.39 |
||
|
34103
|
34103
34103-9E010
ROD ASSY-CONTROL
1997-06-01 ~ ; KA24DE.MT; , |
34103-9E010 |
— | ||
|
34110
|
34110
34110-40U10
Lever Assy-Control
1997-06-01 ~ ; KA24DE.MT; , |
34110-40U10 |
— | ||
|
34110
|
34110
34136-0M000 Bolt1997-06-01 ~ ; KA24DE.MT; , |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110
|
34110
341362Y00A Bolt1997-06-01 ~ ; KA24DE.MT; , |
341362Y00A |
US $1.73 |
||
|
34110
|
34110
34116-0M000 Bearing-Hand Lever1997-06-01 ~ ; KA24DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110
|
34110
3416350J00 Seal-O Ring1997-06-01 ~ ; KA24DE.MT; , |
3416350J00 |
US $3.75 |
||
|
34110A
|
34110A
34136-0M000 Bolt1997-06-01 ~ ; KA24DE.MT; , |
34136-0M000 |
US $1.73 |
||
| replacement | |||||
|
34110A
|
34110A
341362Y00A Bolt1997-06-01 ~ ; KA24DE.MT; , |
341362Y00A |
US $1.73 |
||
|
34110G
|
34110G
34116-0M000 Bearing-Hand Lever1997-06-01 ~ ; KA24DE.MT; , |
34116-0M000 |
from US $7.20 |
||
|
34110W
|
34110W
3416350J00 Seal-O Ring1997-06-01 ~ ; KA24DE.MT; , |
3416350J00 |
US $3.75 |
||
|
34110W
|
34110W
3416350J00 Seal-O Ring1997-06-01 ~ ; KA24DE.MT; , |
3416350J00 |
US $3.75 |
||
|
34117P
|
34117P
34117-0M000 Spring-Bearing Set1997-06-01 ~ ; KA24DE.MT; , |
34117-0M000 |
US $3.74 |
||
|
34118N
|
34118N
34118-0M000 Seat-Bearing Set1997-06-01 ~ ; KA24DE.MT; , |
34118-0M000 |
US $8.35 |
||
|
34550M
|
34550M
34550-9E010
SUPPORT ASSY-CONTROL ROD
1997-06-01 ~ ; KA24DE.MT; , |
34550-9E010 |
— | ||
|
34553
|
34553
34553-0M000 Socket Assy-Hand Lever1997-06-01 ~ ; KA24DE.MT; , |
34553-0M000 |
US $13.29 |
||
|
34556
|
34556
34556-D4000 Tube-Control Rod Support Bush1997-06-01 ~ ; KA24DE.MT; , |
34556-D4000 |
US $5.04 |
||
| replacement | |||||
|
34556
|
34556
345562Y00A Tube-Control Rod Support Bush1997-06-01 ~ ; KA24DE.MT; , |
345562Y00A |
US $5.62 |
||
|
34557
|
34557
34557-50J00 Bush-Control Rod Support1997-06-01 ~ ; KA24DE.MT; , |
34557-50J00 |
from US $6.60 |
||
|
34558
|
34558
34558-9E010
BRACKET-SUPPORT ROD
1997-06-01 ~ ; KA24DE.MT; , |
34558-9E010 |
— | ||
|
34560N
|
34560N
34560-0M000 Bracket Assy-Holder Rubber1997-06-01 ~ ; KA24DE.MT; , |
34560-0M000 |
from US $45.79 |
||
|
34565E
|
34565E
74960-0E500 Boot-Dust, Hole Cover1997-06-01 ~ ; KA24DE.MT; , |
74960-0E500 |
US $12.14 |
||
| replacement | |||||
|
34565E
|
34565E
74965-0E510 Cover-Transmission Hole1997-06-01 ~ ; KA24DE.MT; , |
74965-0E510 |
US $24.54 |
||
|
34565M
|
34565M
74965-0Z400
Cover-Transmission Hole
2000-03-01 ~ ; KA24DE.MT; , |
74965-0Z400 |
— | ||
|
34565M
|
34565M
74965-9E000 COVER-TRANSMISSION HOLE1997-06-01 ~ 2000-03-01; KA24DE.MT; , |
74965-9E000 |
US $14.11 |
||
| replacement | |||||
|
34565M
|
34565M
74965-9E00A
Cover-Transmission Hole
1997-06-01 ~ 2000-03-01; KA24DE.MT; , |
74965-9E00A |
— | ||
|
34568
|
34568
34568-9E010 DAMPER-MASS1997-06-01 ~ ; KA24DE.MT; , |
34568-9E010 |
US $26.34 |
||
|
34573
|
34573
3457340U00 Spring-Return, Lever1997-06-01 ~ ; KA24DE.MT; , |
3457340U00 |
US $8.18 |
||
