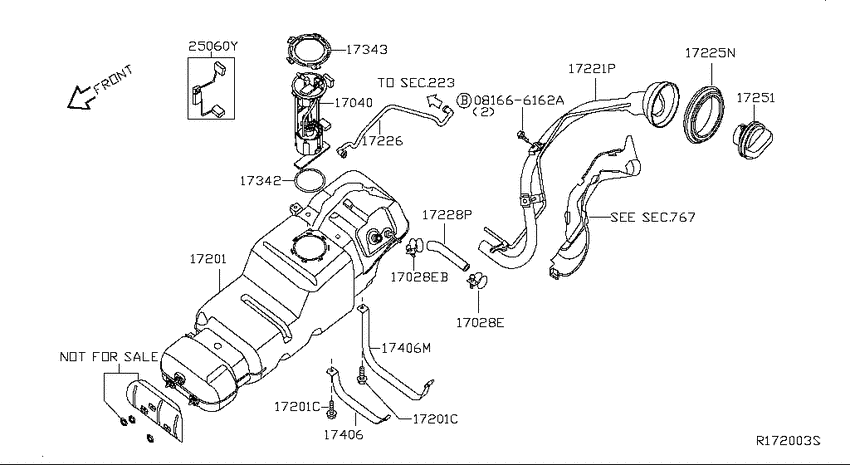

Fuel tank (2006-08-01 ~ 2008-04-01; 4WD.VK56DE) Diagram Nissan ARMADA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Engine
- VK56DE
- drive
- 4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
- fuel
- STD/FUEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081666162A
|
081666162A
08166-6162A
SCREW
|
08166-6162A |
— | ||
|
17028E
|
17028E
0155500103 CLAMP-HOSE2003-08-01 ~ 2003-11-01; VK56DE; , |
0155500103 |
US $6.91 |
||
|
17028E
|
17028E
16439-7S000
Clamp
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
16439-7S000 |
— | ||
|
17028E
|
17028E
16439-7S000
Clamp
2003-08-01 ~ 2003-11-01; VK56DE; , |
16439-7S000 |
— | ||
|
17028E
|
17028E
16439-7S005
Clamp
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
16439-7S005 |
— | ||
|
17028EB
|
17028EB
16439-7S000
Clamp
2003-08-01 ~ 2003-11-01; VK56DE; , |
16439-7S000 |
— | ||
|
17028EB
|
17028EB
16439-7S005
Clamp
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
16439-7S005 |
— | ||
|
17040
|
17040
17040-7S000
Fuel Pump-In Tank
2004-10-01 ~ 2005-02-01; VK56DE; , |
17040-7S000 |
— | ||
|
17040
|
17040
17040-7S00A
Fuel Pump-In Tank
2005-02-01 ~ 2006-08-01; VK56DE; , |
17040-7S00A |
— | ||
|
17040
|
17040
17040-ZE00A
Fuel Pump-In Tank
2006-08-01 ~ 2007-02-01; 4WD.STD/FUEL.VK56DE; , |
17040-ZE00A |
— | ||
|
17040
|
17040
17040-ZE00B
Fuel Pump-In Tank
2007-02-01 ~ 2008-04-01; 4WD.STD/FUEL.VK56DE; , |
17040-ZE00B |
— | ||
|
17201
|
17201
17202-7S000
Tank Assy-Fuel
2006-08-01 ~ 2008-04-01; 4WD.STD/FUEL.VK56DE; , |
17202-7S000 |
— | ||
|
17201
|
17201
0112102871 BOLT2007-01-01 ~ 2007-04-01; 4WD.VK56DE; , |
0112102871 |
US $1.73 |
||
|
17201
|
17201
0112106671 BOLT2006-08-01 ~ 2007-01-01; 4WD.VK56DE; , |
0112106671 |
US $2.45 |
||
|
17201C
|
17201C
0112102871 BOLT2007-01-01 ~ 2007-04-01; 4WD.VK56DE; , |
0112102871 |
US $1.73 |
||
|
17201C
|
17201C
0112106671 BOLT2006-08-01 ~ 2007-01-01; 4WD.VK56DE; , |
0112106671 |
US $2.45 |
||
|
17201C
|
17201C
0112102871 BOLT2007-01-01 ~ 2007-04-01; 4WD.VK56DE; , |
0112102871 |
US $1.73 |
||
|
17201C
|
17201C
0112106671 BOLT2006-08-01 ~ 2007-01-01; 4WD.VK56DE; , |
0112106671 |
US $2.45 |
||
|
17221P
|
17221P
17221-7S000
Tube Assy-Filler
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17221-7S000 |
— | ||
|
17225N
|
17225N
17240-50Y00 Grommet-Filler Base2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17240-50Y00 |
from US $18.99 |
||
|
17226
|
17226
17226-7S000
Hose-Ventilation
2006-08-01 ~ 2007-02-01; 4WD.STD/FUEL.VK56DE; , |
17226-7S000 |
— | ||
|
17226
|
17226
17226-ZH000
Hose-Ventilation
2007-02-01 ~ 2007-04-01; 4WD.STD/FUEL.VK56DE; , |
17226-ZH000 |
— | ||
|
17228P
|
17228P
17228-7S005
Hose-Filler
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17228-7S005 |
— | ||
|
17251
|
17251
17251-AR201
Cap Assy-Filler
2006-08-01 ~ 2007-04-01; 4WD.STD/FUEL.VK56DE; , |
17251-AR201 |
— | ||
|
17251
|
17251
17251-ZJ01B
Cap Assy-Filler
2006-05-01 ~ 2006-08-01; VK56DE; , |
17251-ZJ01B |
— | ||
|
17251
|
17251
17251-ZP51A
Cap Assy-Filler
2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
17251-ZP51A |
— | ||
|
17342
|
17342
17342-7S000 Seal-O Ring, Fuel Gauge2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17342-7S000 |
from US $14.68 |
||
|
17343
|
17343
17343-7S000
Plate-Lock, Fuel Gauge
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17343-7S000 |
— | ||
|
17406
|
17406
17406-7S000
Band Assy-Fuel Tank Mounting
2003-08-01 ~ 2003-11-01; VK56DE; , |
17406-7S000 |
— | ||
|
17406
|
17406
17406-7S005
Band Assy-Fuel Tank Mounting
2006-08-01 ~ 2007-04-01; 4WD.VK56DE; , |
17406-7S005 |
— | ||
|
17406
|
17406
17406-ZE00B
Band Assy-Fuel Tank Mounting
2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
17406-ZE00B |
— | ||
|
17406
|
17406
17407-7S000
Band Assy-Fuel Tank, Mounting
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17407-7S000 |
— | ||
|
17406M
|
17406M
17407-7S000
Band Assy-Fuel Tank, Mounting
2006-08-01 ~ 2008-04-01; 4WD.VK56DE; , |
17407-7S000 |
— | ||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
25060Y
|
25060Y
25060-7S00A
Fuel Level Sensor
2006-08-01 ~ 2008-04-01; 4WD.STD/FUEL.VK56DE; , |
25060-7S00A |
— | ||
|
25060Y
|
25060Y
25060-ZQ60A
Fuel Level Sensor
2004-10-01 ~ 2006-08-01; VK56DE; , |
25060-ZQ60A |
— | ||
|
767
|
Body side fitting
767
|
||||
|
767
|
Body side fitting
767
|
||||
|
767
|
Body side fitting
767
|
||||
|
767
|
Body side fitting
767
|
||||
|
767
|
Body side fitting
767
|
||||
