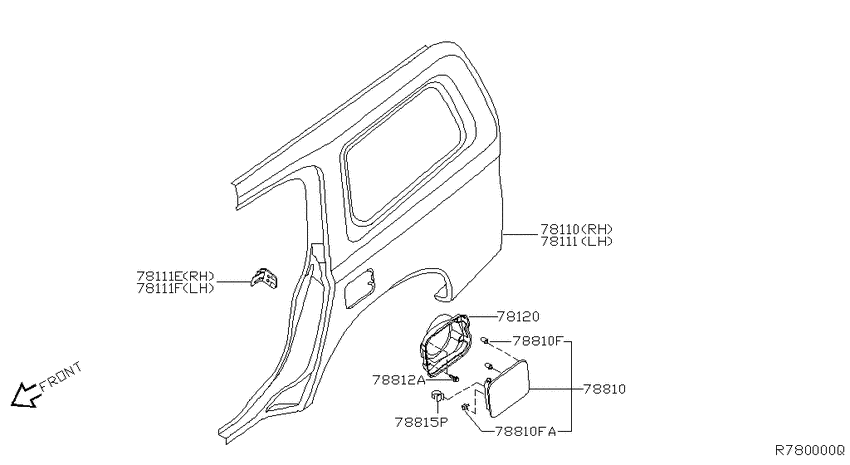

Rear fender & fitting (2003-08-01 ~ 2004-10-01; W) Diagram Nissan ARMADA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Engine
- VK56DE
- drive
- 4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
- fuel
- STD/FUEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78100-7S030
Fender-rear,rh
2006-08-01 ~ 2007-04-01; *W.4WD; , |
78100-7S030 |
— | ||
|
78110
|
78110
G8100-7S0MA
Fender-rear,rh
2006-08-01 ~ 2007-04-01; W; , |
G8100-7S0MA |
— | ||
|
78110
|
78110
G8100-ZQ0MA
Fender-Rear, Rh
2007-04-01 ~ 2008-04-01; W; , |
G8100-ZQ0MA |
— | ||
|
78111
|
78111
78101-7S030
Fender-rear,lh
2006-08-01 ~ 2007-04-01; *W.4WD; , |
78101-7S030 |
— | ||
|
78111
|
78111
G8101-7S0MA
Fender-rear,lh
2006-08-01 ~ 2007-04-01; W; , |
G8101-7S0MA |
— | ||
|
78111
|
78111
G8101-ZQ0MA
Fender-Rear, Lh
2007-04-01 ~ 2008-04-01; W; , |
G8101-ZQ0MA |
— | ||
|
78111
|
78111
76690-7S030
Retainer-Tapping, Striker Rh
2004-10-01 ~ 2006-08-01; W; , |
76690-7S030 |
— | ||
|
78111
|
78111
76691-7S030
Retainer-Tapping, Striker Lh
2004-10-01 ~ 2006-08-01; W; , |
76691-7S030 |
— | ||
|
78111E
|
78111E
76690-7S030
Retainer-Tapping, Striker Rh
2004-10-01 ~ 2006-08-01; W; , |
76690-7S030 |
— | ||
|
78111F
|
78111F
76691-7S030
Retainer-Tapping, Striker Lh
2004-10-01 ~ 2006-08-01; W; , |
76691-7S030 |
— | ||
|
78120
|
78120
78120-7S030
Base Assy-Fuel Filler
2004-10-01 ~ 2006-08-01; W; , |
78120-7S030 |
— | ||
|
78810
|
78810
78830-7S030
Lid Assy-Fuel Filler
2006-08-01 ~ 2008-04-01; W; , |
78830-7S030 |
— | ||
|
78810
|
78810
0145100891 SCREW2007-04-01 ~ 2008-04-01; W; , |
0145100891 |
from US $1.02 |
||
|
78810
|
78810
0165800393 BUMPER-FUEL FILLER LID2004-10-01 ~ 2006-08-01; W; , |
0165800393 |
from US $2.13 |
||
|
78810
|
78810
93843-3S500
Bumper-Lid
2004-10-01 ~ 2006-08-01; W; , |
93843-3S500 |
— | ||
|
78810F
|
78810F
0165800393 BUMPER-FUEL FILLER LID2004-10-01 ~ 2006-08-01; W; , |
0165800393 |
from US $2.13 |
||
|
78810F
|
78810F
93843-3S500
Bumper-Lid
2004-10-01 ~ 2006-08-01; W; , |
93843-3S500 |
— | ||
|
78810FA
|
78810FA
93843-3S500
Bumper-Lid
2004-10-01 ~ 2006-08-01; W; , |
93843-3S500 |
— | ||
|
78812A
|
78812A
01426-0002U
Screw
2004-10-01 ~ 2006-08-01; W; , |
01426-0002U |
— | ||
|
78815P
|
78815P
78836-3S500 Spring-Fuel Filler Lid2004-10-01 ~ 2006-08-01; W; , |
78836-3S500 |
US $4 |
