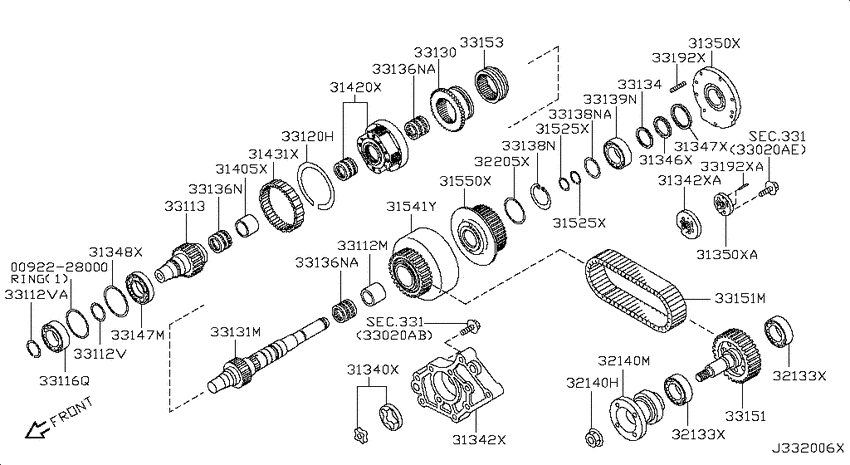

Transfer gear (2006-08-01 ~ 2008-04-01; VK56DE) Diagram Nissan ARMADA
- Year
- 2003 - 2008
- Sales region
- U.S.A.
- Engine
- VK56DE
- drive
- 4WD
- transmission
- AT
- grade
- LE
- body
- W
- emission
- FED
- fuel
- STD/FUEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092228000
|
0092228000
00922-28000
Ring-snap
|
00922-28000 |
— | ||
|
31340X
|
31340X
31340-0W460 Pump Assy-Oil, Transfer2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=14.70 |
31340-0W460 |
US $15.70 |
||
|
31340X
|
31340X
31340-0W461 Pump Assy-Oil, Transfer2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=14.69 |
31340-0W461 |
US $15.70 |
||
|
31340X
|
31340X
31340-0W462 Pump Assy-Oil, Transfer2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=14.68 |
31340-0W462 |
US $15.70 |
||
|
31342X
|
31342X
31342-7S110
Housing-Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; F/MAIN |
31342-7S110 |
— | ||
|
31342X
|
31342X
31342-7S121
Housing-Oil Pump
2003-08-01 ~ 2004-10-01; 4WD.VK56DE; F/SUB |
31342-7S121 |
— | ||
|
31342XA
|
31342XA
31342-7S121
Housing-Oil Pump
2003-08-01 ~ 2004-10-01; 4WD.VK56DE; F/SUB |
31342-7S121 |
— | ||
|
31346X
|
31346X
31346-7S110
Gear-Inner, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.29-8.30 |
31346-7S110 |
— | ||
|
31346X
|
31346X
31346-7S111
Gear-Inner, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.28-8.29 |
31346-7S111 |
— | ||
|
31346X
|
31346X
31346-7S112
Gear-Inner, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.27-8.28 |
31346-7S112 |
— | ||
|
31347X
|
31347X
31347-7S110
Gear-Outer, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.29-8.30 |
31347-7S110 |
— | ||
|
31347X
|
31347X
31347-7S111
Gear-Outer, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.28-8.29 |
31347-7S111 |
— | ||
|
31347X
|
31347X
31347-7S112
Gear-Outer, Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; SELECT T=8.27-8.28 |
31347-7S112 |
— | ||
|
31348X
|
31348X
31348-7S110
Ring-Snap
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31348-7S110 |
— | ||
|
31348X
|
31348X
31348-EA300 Ring-Snap2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
31348-EA300 |
US $6.48 |
||
|
31350X
|
31350X
31351-7S110
Cover Assy-Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; F/MAIN |
31351-7S110 |
— | ||
|
31350X
|
31350X
31351-7S120
Cover Assy-Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; F/SUB |
31351-7S120 |
— | ||
|
31350XA
|
31350XA
31351-7S120
Cover Assy-Oil Pump
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; F/SUB |
31351-7S120 |
— | ||
|
31405X
|
31405X
31405-7S110
Bush
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31405-7S110 |
— | ||
|
31420X
|
31420X
31420-7S110
Carrier Assy-Planet
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31420-7S110 |
— | ||
|
31420X
|
31420X
31420-EA310
Carrier Assy-Planet
2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
31420-EA310 |
— | ||
|
31431X
|
31431X
31431-0W410 Gear-Internal2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31431-0W410 |
US $98.50 |
||
|
31431X
|
31431X
31431-EA300 Gear-Internal2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
31431-EA300 |
US $98.50 |
||
|
31525X
|
31525X
31525-7S110
Ring-Seal
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31525-7S110 |
— | ||
|
31525X
|
31525X
31525-7S110
Ring-Seal
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31525-7S110 |
— | ||
|
31541Y
|
31541Y
31541-7S110
Drum Assy-Rear Clutch
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31541-7S110 |
— | ||
|
31550X
|
31550X
31551-7S110
Hub Assy-Clutch, Transfer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31551-7S110 |
— | ||
|
32133X
|
32133X
33139-7S120
Bearing-Extension, Rear
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33139-7S120 |
— | ||
|
32133X
|
32133X
33139-7S120
Bearing-Extension, Rear
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33139-7S120 |
— | ||
|
32140H
|
32140H
38216-31G00
Nut
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
38216-31G00 |
— | ||
| replacement | |||||
|
32140H
|
32140H
3821631G0A Nut2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
3821631G0A |
US $7.35 |
||
|
32140H
|
32140H
3821631G0A Nut2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
3821631G0A |
US $7.35 |
||
|
32140M
|
32140M
33210-7S110
Flange Assy-Companion
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33210-7S110 |
— | ||
|
32140M
|
32140M
33210-7S11A Flange Assy-Companion2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
33210-7S11A |
US $77.90 |
||
|
32205X
|
32205X
32205-7S110
Spacer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
32205-7S110 |
— | ||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
331
|
Transfer case
331
|
||||
|
33112M
|
33112M
33147-7S110
Spacer-Main Shaft
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33147-7S110 |
— | ||
|
33112V
|
33112V
33112-7S110 Ring-Snap2003-08-01 ~ 2004-10-01; 4WD.VK56DE; , |
33112-7S110 |
US $10.08 |
||
|
33112V
|
33112V
33112-0W411 Ring-Snap2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33112-0W411 |
US $23.33 |
||
|
33112VA
|
33112VA
33112-0W411 Ring-Snap2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33112-0W411 |
US $23.33 |
||
|
33113
|
33113
33113-7S110
Gear-Main, Transfer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33113-7S110 |
— | ||
|
33113
|
33113
33113-EA310
Gear-Main, Transfer
2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
33113-EA310 |
— | ||
|
33116Q
|
33116Q
33116-7S110 Bearing-Ball, Input2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33116-7S110 |
from US $71.14 |
||
|
33120H
|
33120H
31506-51X02 Ring-Snap2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
31506-51X02 |
US $6.19 |
||
|
33130
|
33130
33130-7S110
Sleeve-Coupling, Low & High
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33130-7S110 |
— | ||
|
33130
|
33130
33130-7S111
Sleeve-Coupling, Low & High
2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
33130-7S111 |
— | ||
|
33131M
|
33131M
33131-7S111
Shaft-Main, Transfer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33131-7S111 |
— | ||
|
33134
|
33134
33134-7S110
Washer-Thrust, Drive Shaft
2003-08-01 ~ 2004-10-01; 4WD.VK56DE; , |
33134-7S110 |
— | ||
|
33136N
|
33136N
33137-0W410 Bearing-Needle2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33137-0W410 |
US $21.60 |
||
|
33136N
|
33136N
33136-0W412 Bearing-Needle2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33136-0W412 |
US $22.03 |
||
|
33136NA
|
33136NA
33136-0W412 Bearing-Needle2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33136-0W412 |
US $22.03 |
||
|
33136NA
|
33136NA
33136-0W412 Bearing-Needle2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33136-0W412 |
US $22.03 |
||
|
33138N
|
33138N
33138-0W420 Ring-Snap, Main Shaft2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33138-0W420 |
US $5.90 |
||
|
33138N
|
33138N
33138-7S110 Ring-Snap2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33138-7S110 |
US $5.68 |
||
|
33138NA
|
33138NA
33138-7S110 Ring-Snap2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33138-7S110 |
US $5.68 |
||
|
33139N
|
33139N
33139-7S110
Bearing-Main, Transfer Rear
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33139-7S110 |
— | ||
|
33147M
|
33147M
33137-7S110
Shim-Adjust, Hypoid Gear
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33137-7S110 |
— | ||
|
33147M
|
33147M
33137-EA300 Shim-Adjust, Hypoid Gear2007-04-01 ~ 2008-04-01; 4WD.VK56DE; , |
33137-EA300 |
US $4.18 |
||
|
33151
|
33151
33151-7S110
Shaft-Drive, Front
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33151-7S110 |
— | ||
|
33151
|
33151
33152-7S111
Chain-Front Drive, Transfer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33152-7S111 |
— | ||
|
33151M
|
33151M
33152-7S111
Chain-Front Drive, Transfer
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33152-7S111 |
— | ||
|
33153
|
33153
33153-7S110
Sleeve-Coupling
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33153-7S110 |
— | ||
|
33192X
|
33192X
33192-7S110
Pin-Dowel
2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33192-7S110 |
— | ||
|
33192X
|
33192X
33192-0W415 Pin-Dowel2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33192-0W415 |
US $2.45 |
||
|
33192XA
|
33192XA
33192-0W415 Pin-Dowel2004-10-01 ~ 2006-08-01; 4WD.VK56DE; , |
33192-0W415 |
US $2.45 |
||
