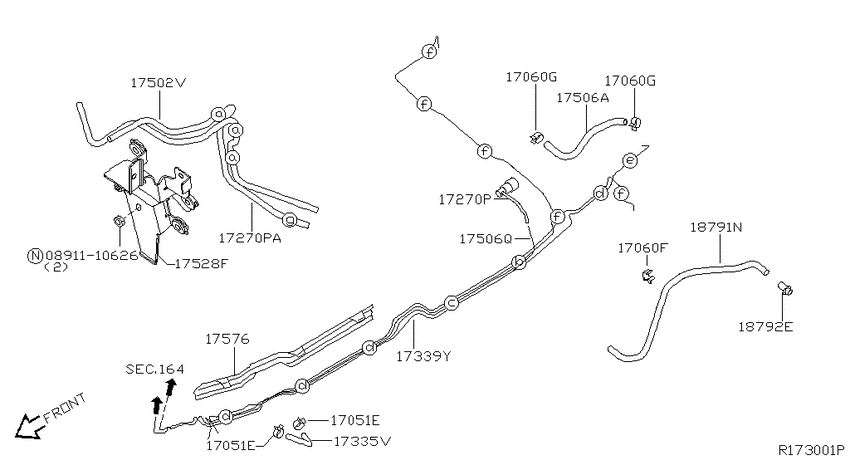

Fuel piping (2008-04-01 ~ 2009-04-01; FUEL PIPING; 2WD.VK56DE) Diagram Nissan ARMADA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- VK56DE
- drive
- 2WD
- transmission
- AT
- grade
- SE
- body
- W
- emission
- FED
- fuel
- FLX/FUEL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110626
|
0891110626
08911-10626
New Genuine Part
|
08911-10626 |
— | ||
|
164
|
Fuel strainer & fuel hose
164
|
||||
|
17051E
|
17051E
1643942L0A Clamp-Hose A2008-04-01 ~ ; 2WD.VK56DE; , |
1643942L0A |
from US $4.68 |
||
|
17051E
|
17051E
1643942L0A Clamp-Hose A2008-04-01 ~ ; 2WD.VK56DE; , |
1643942L0A |
from US $4.68 |
||
|
17060F
|
17060F
17574-7S000
Clip
2008-04-01 ~ ; 2WD.VK56DE; , |
17574-7S000 |
— | ||
|
17060G
|
17060G
1643942L0A Clamp-Hose A2008-04-01 ~ ; 2WD.VK56DE; , |
1643942L0A |
from US $4.68 |
||
|
17060G
|
17060G
1643942L0A Clamp-Hose A2008-04-01 ~ ; 2WD.VK56DE; , |
1643942L0A |
from US $4.68 |
||
|
17270P
|
17270P
17270-7S000
Tube Assy-Fuel Tank Outlet
2008-04-01 ~ 2009-04-01; 2WD.VK56DE; , |
17270-7S000 |
— | ||
|
17270P
|
17270P
17270-7S010
Tube Assy-Fuel Tank Outlet
2008-04-01 ~ ; 2WD.VK56DE; , |
17270-7S010 |
— | ||
|
17270PA
|
17270PA
17270-7S010
Tube Assy-Fuel Tank Outlet
2008-04-01 ~ ; 2WD.VK56DE; , |
17270-7S010 |
— | ||
|
17335V
|
17335V
17335-7S000
Hose-Evaporation
2008-04-01 ~ ; 2WD.VK56DE; , |
17335-7S000 |
— | ||
|
17339Y
|
17339Y
17339-7S010
Tube-Breather
2008-04-01 ~ ; 2WD.VK56DE; , |
17339-7S010 |
— | ||
|
17502V
|
17502V
17502-7S000
Tube Assy-Fuel Feed
2008-04-01 ~ ; 2WD.VK56DE; , |
17502-7S000 |
— | ||
|
17506A
|
17506A
17335-7S005
Hose-Fuel
2008-04-01 ~ ; 2WD.VK56DE; , |
17335-7S005 |
— | ||
|
17506Q
|
17506Q
17506-7S000
Tube-Fuel Feed
2008-04-01 ~ ; 2WD.VK56DE; , |
17506-7S000 |
— | ||
|
17528F
|
17528F
17528-7S000
Bracket-Fuel Tube
2008-04-01 ~ ; 2WD.VK56DE; , |
17528-7S000 |
— | ||
|
17576
|
17576
17576-7S000
Protector-Fuel Tube
2008-04-01 ~ ; 2WD.VK56DE; , |
17576-7S000 |
— | ||
|
18791N
|
18791N
18791-7S000
Hose-Drain, Canister
2008-04-01 ~ ; 2WD.VK56DE; , |
18791-7S000 |
— | ||
|
18792E
|
18792E
18792-ZH30A
Connector-Emission Control Hose
2008-04-01 ~ ; 2WD.VK56DE; , |
18792-ZH30A |
— | ||
