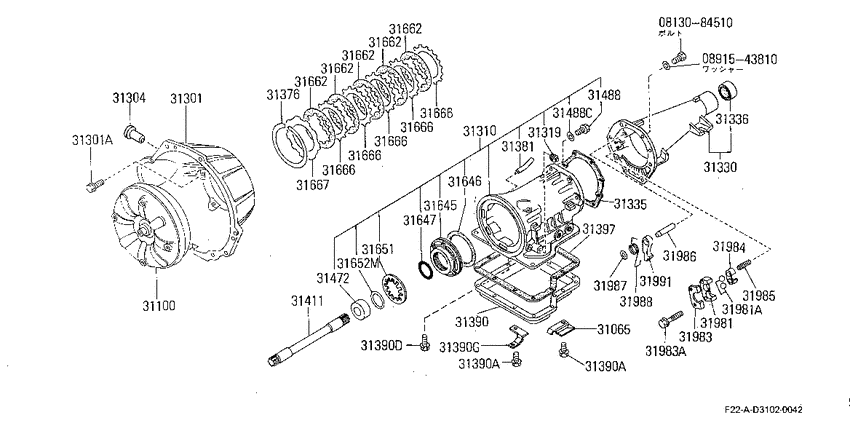

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1986-11-01 ~ ; 3N71B) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 1988
- Sales region
- Japan
- Engine
- TD27
- transmission
- AT
- body
- TLF
- body type
- SB/10T
- transmission/shift type
- RA
- drive/tire
- 2WD/WT
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
31065
|
31065
31065-A4000 Clamp-Vacuum Tube8611--01 ~ ; TD27.AT |
31065-A4000 |
US $11.23 |
||
|
31100
|
31100
31100-X2702 Converter Assy-Torque8611--01 ~ ; TD27.AT |
31100-X2702 |
US $899.16 |
||
| replacement | |||||
|
31100
|
31100
31100-X2704 Converter Assy-Torque8611--01 ~ ; TD27.AT |
31100-X2704 |
US $899.16 |
||
|
31301
|
31301
31300-X8801 Housing-Converter8611--01 ~ ; TD27.AT |
31300-X8801 |
US $210.24 |
||
|
31301
|
31301
01125-00041 BOLT8611--01 ~ 9007--01; TD27.AT |
01125-00041 |
US $3.46 |
||
|
31301A
|
31301A
01125-00041 BOLT8611--01 ~ 9007--01; TD27.AT |
01125-00041 |
US $3.46 |
||
|
31304
|
31304
34465-P0100 Bearing-Cross Shaft8611--01 ~ ; TD27.AT |
34465-P0100 |
US $4.03 |
||
|
31310
|
31310
31310-X0951 Case Assy-Automatic Transmission8611--01 ~ ; TD27.AT |
31310-X0951 |
US $475.78 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8611--01 ~ ; TD27.AT |
31319-X0100 |
US $2.45 |
||
|
31330
|
31330
31330-X8000 Extension Assy-Rear8611--01 ~ ; TD27.AT |
31330-X8000 |
US $161.28 |
||
|
31335
|
31335
31335-X0100 Gasket-Extension8611--01 ~ ; TD27.AT |
31335-X0100 |
US $4.18 |
||
| replacement | |||||
|
31335
|
31335
31338-X0100 Gasket-Extension8611--01 ~ ; TD27.AT |
31338-X0100 |
US $4.18 |
||
|
31336
|
31336
31336-X8000 Seal-Oil, Rear Extension8611--01 ~ ; TD27.AT |
31336-X8000 |
US $7.63 |
||
|
31376
|
31376
31376-X0100 Ring-Snap, Low & Reverse Brake8611--01 ~ ; TD27.AT |
31376-X0100 |
US $5.18 |
||
|
31381
|
31381
31381-X0100 Breather-Air8611--01 ~ ; TD27.AT |
31381-X0100 |
US $2.45 |
||
| replacement | |||||
|
31381
|
31381
31381-41X0A
Breather-air
8611--01 ~ ; TD27.AT |
31381-41X0A |
— | ||
|
31390
|
31390
31390-X0102 Pan Assy-Oil8611--01 ~ ; TD27.AT |
31390-X0102 |
US $26.50 |
||
|
31390
|
31390
01125-01151 BOLT8611--01 ~ ; TD27.AT |
01125-01151 |
US $1.73 |
||
|
31390
|
31390
01125-01151 BOLT8611--01 ~ ; AT |
01125-01151 |
US $1.73 |
||
|
31390
|
31390
21644-V0700 Bracket-Oil Cooler Tube8611--01 ~ ; TD27.AT |
21644-V0700 |
US $5.04 |
||
|
31390A
|
31390A
01125-01151 BOLT8611--01 ~ ; TD27.AT |
01125-01151 |
US $1.73 |
||
|
31390A
|
31390A
01125-01151 BOLT8611--01 ~ ; TD27.AT |
01125-01151 |
US $1.73 |
||
|
31390D
|
31390D
01125-01151 BOLT8611--01 ~ ; AT |
01125-01151 |
US $1.73 |
||
|
31390G
|
31390G
21644-V0700 Bracket-Oil Cooler Tube8611--01 ~ ; TD27.AT |
21644-V0700 |
US $5.04 |
||
|
31397
|
31397
31397-X0102 Gasket-Oil Pan8611--01 ~ ; TD27.AT |
31397-X0102 |
US $13.82 |
||
| replacement | |||||
|
31397
|
31397
31397X0103 Gasket-Oil Pan8611--01 ~ ; TD27.AT |
31397X0103 |
from US $13.82 |
||
|
31397
|
31397
31397-X0189 Gasket & Seal Kit-Auto Transmission8611--01 ~ ; TD27.AT |
31397-X0189 |
US $195.84 |
||
| replacement | |||||
|
31397
|
31397
C1397-X018K
Gasket & seal kit-auto transmission
8611--01 ~ ; TD27.AT |
C1397-X018K |
— | ||
|
31411
|
31411
31411-X0100 Shaft-Input8611--01 ~ ; TD27.AT |
31411-X0100 |
US $39.74 |
||
|
31472
|
31472
31472-X0100 Race-Inner8611--01 ~ ; TD27.AT |
31472-X0100 |
US $26.50 |
||
|
31488
|
31488
31488-F0600 Bolt8611--01 ~ ; TD27.AT |
31488-F0600 |
US $1.73 |
||
|
31488
|
31488
31484-X0100 Washer-Plain8611--01 ~ ; TD27.AT |
31484-X0100 |
US $0.86 |
||
|
31488C
|
31488C
31484-X0100 Washer-Plain8611--01 ~ ; TD27.AT |
31484-X0100 |
US $0.86 |
||
|
31645
|
31645
31644-X0101
Piston Assy-Low & Reverse Brake
8611--01 ~ ; TD27.AT |
31644-X0101 |
— | ||
|
31646
|
31646
31646-X0100 Seal-Lathe Cut Ring8611--01 ~ ; TD27.AT |
31646-X0100 |
US $4.18 |
||
|
31647
|
31647
31647-X0100 Seal-O Ring8611--01 ~ ; TD27.AT |
31647-X0100 |
US $1.73 |
||
|
31651
|
31651
31651-X0101 Spring-Piston Return8611--01 ~ ; TD27.AT |
31651-X0101 |
US $5.18 |
||
|
31652M
|
31652M
31652-X0101 Ring-Snap8611--01 ~ ; TD27.AT |
31652-X0101 |
US $2.45 |
||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8611--01 ~ ; TD27.AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8611--01 ~ ; TD27.AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8611--01 ~ ; TD27.AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8611--01 ~ ; TD27.AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8611--01 ~ ; TD27.AT |
31662-X0102 |
— | ||
|
31666
|
31666
31666-X0100 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8611--01 ~ 8912--01; TD27.AT |
31666-X0101 |
US $20.30 |
||
|
31667
|
31667
31667-X0300 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=11.8 |
31667-X0300 |
US $12.96 |
||
|
31667
|
31667
31667-X0301 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=12.0 |
31667-X0301 |
US $12.96 |
||
|
31667
|
31667
31667-X0302 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=12.2 |
31667-X0302 |
US $12.96 |
||
|
31667
|
31667
31667-X0303 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=12.4 |
31667-X0303 |
US $12.96 |
||
|
31667
|
31667
31667-X0304 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=12.6 |
31667-X0304 |
US $12.96 |
||
|
31667
|
31667
31667-X0305 Plate-Retaining8611--01 ~ ; TD27.AT; ｾﾝﾀｸ T=12.8 |
31667-X0305 |
US $12.96 |
||
|
31981
|
31981
31981-X0102 Support-Parking Actuator8611--01 ~ ; TD27.AT |
31981-X0102 |
US $30.38 |
||
|
31981
|
31981
31357-20300 Ball-Steel8611--01 ~ ; TD27.AT |
31357-20300 |
US $0.86 |
||
|
31981A
|
31981A
31357-20300 Ball-Steel8611--01 ~ ; TD27.AT |
31357-20300 |
US $0.86 |
||
|
31983
|
31983
31983-X0100 Plate-Retaining, Parking8611--01 ~ ; TD27.AT |
31983-X0100 |
US $0.86 |
||
|
31983
|
31983
01125-00021 BOLT8611--01 ~ ; TD27.AT |
01125-00021 |
US $2.45 |
||
|
31983A
|
31983A
01125-00021 BOLT8611--01 ~ ; TD27.AT |
01125-00021 |
US $2.45 |
||
|
31984
|
31984
31984-X6901 Retainer-Spring, Parking8611--01 ~ ; TD27.AT |
31984-X6901 |
US $8.78 |
||
|
31985
|
31985
31985-X6902 Spring-Ball, Parking8611--01 ~ ; TD27.AT |
31985-X6902 |
US $0.86 |
||
|
31986
|
31986
31986-20300 Shaft-Parking Pawl8611--01 ~ ; TD27.AT |
31986-20300 |
US $2.45 |
||
|
31987
|
31987
31987-X0100 Spacer-Parking Pawl8611--01 ~ ; TD27.AT |
31987-X0100 |
US $1.73 |
||
|
31988
|
31988
31988-X0100 Spring-Return Pawl8611--01 ~ ; TD27.AT |
31988-X0100 |
US $1.73 |
||
|
31991
|
31991
31991-X0100 Pawl-Parking8611--01 ~ ; TD27.AT |
31991-X0100 |
US $12.82 |
||
