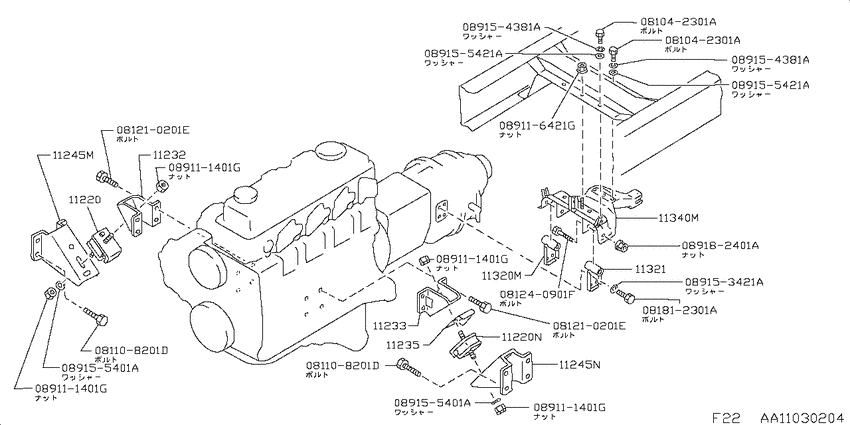

engine & transmission mounting (1988-10-01 ~ ; TD27.4WD) Diagram Nissan ATLAS/CONDOR
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- TD27
- transmission
- MT
- body
- TLF
- body type
- LB/15T
- transmission/shift type
- F5
- drive/tire
- 4WD/ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081042301A
|
081042301A
08104-2301A
Bolt-hexagon
|
08104-2301A |
— | ||
|
081042301A
|
081042301A
08104-2301A
Bolt-hexagon
|
08104-2301A |
— | ||
|
081108201D
|
081108201D
081108201D
Bolt-hexagon
|
081108201D |
— | ||
|
081108201D
|
081108201D
081108201D
Bolt-hexagon
|
081108201D |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081240901F
|
081240901F
08124-0901F
Bolt-hexagon
|
08124-0901F |
— | ||
|
081812301A
|
081812301A
08181-2301A
Bolt-hexagon
|
08181-2301A |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089111401G
|
089111401G
089111401G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111401G |
— | ||
|
089116421G
|
089116421G
08911-6421G NUT |
08911-6421G |
from US $1.28 |
||
|
089153421A
|
089153421A
089153421A WASHER |
089153421A |
US $0.63 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
089155421A
|
089155421A
08915-5421A WASHERPLAIN |
08915-5421A |
from US $0.52 |
||
|
089155421A
|
089155421A
08915-5421A WASHERPLAIN |
08915-5421A |
from US $0.52 |
||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
11220
|
11220
11220-10T03 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾐｷﾞ ﾖｳ |
11220-10T03 |
US $53.71 |
||
|
11220
|
11220
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾐｷﾞ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220
|
11220
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾐｷﾞ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11220
|
11220
11220-10T11 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾋﾀﾞﾘ ﾖｳ |
11220-10T11 |
US $63.22 |
||
|
11220
|
11220
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220
|
11220
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11220N
|
11220N
11220-10T11 Insulator-Engine Mounting, Front8611--01 ~ ; DIE; ﾋﾀﾞﾘ ﾖｳ |
11220-10T11 |
US $63.22 |
||
|
11220N
|
11220N
11220-T6000 Insulator-Engine Mounting, Front8202--01 ~ 8411--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6000 |
US $81.50 |
||
|
11220N
|
11220N
11220-T6010 Insulator-Engine Mounting, Front8411--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11220-T6010 |
US $60.29 |
||
|
11232
|
11232
11232-10T01 Bracket-Engine Mounting, Rh8611--01 ~ ; DIE |
11232-10T01 |
US $46.08 |
||
|
11232
|
11232
11232-T6200 Bracket-Engine Mounting, Rh8202--01 ~ 8301--01; DIE |
11232-T6200 |
US $62.93 |
||
|
11232
|
11232
11232-T6201 Bracket-Engine Mounting, Rh8301--01 ~ 8611--01; DIE |
11232-T6201 |
US $62.93 |
||
|
11233
|
11233
11232-10T01 Bracket-Engine Mounting, Rh8611--01 ~ ; DIE |
11232-10T01 |
US $46.08 |
||
|
11233
|
11233
11233-T6200 Bracket-Engine Mounting, Lh8202--01 ~ 8301--01; DIE |
11233-T6200 |
US $62.93 |
||
|
11233
|
11233
11233-T6201 Bracket-Engine Mounting, Lh8301--01 ~ 8611--01; DIE |
11233-T6201 |
US $62.93 |
||
|
11235
|
11235
11235-T6001 Plate-Heat Shield8611--01 ~ 9007--01; ALL |
11235-T6001 |
US $11.81 |
||
|
11245M
|
11245M
11251-T6000 Support-Engine Mounting, Front8202--01 ~ 8611--01; ALL; ﾐｷﾞ ﾖｳ |
11251-T6000 |
US $18.29 |
||
|
11245M
|
11245M
11252-22T02 Support-Engine Mounting, Front8810--01 ~ ; 4WD; ﾐｷﾞ ﾖｳ |
11252-22T02 |
US $41.62 |
||
|
11245N
|
11245N
11251-T6000 Support-Engine Mounting, Front8202--01 ~ 8611--01; ALL; ﾋﾀﾞﾘ ﾖｳ |
11251-T6000 |
US $18.29 |
||
|
11245N
|
11245N
11253-22T02 Support-Engine Mounting, Front8810--01 ~ ; 4WD; ﾋﾀﾞﾘ ﾖｳ |
11253-22T02 |
US $41.62 |
||
|
11320M
|
11320M
11320-01T00 Insulator-Engine Mounting, Rear Rh8810--01 ~ 9007--01; TD27.F5.4WD |
11320-01T00 |
from US $65.23 |
||
|
11320M
|
11320M
11320-11T00 Insulator-Engine Mounting, Rear Rh8611--01 ~ 8810--01; TD27.MT |
11320-11T00 |
US $49.54 |
||
|
11321
|
11321
11320-01T00 Insulator-Engine Mounting, Rear Rh8810--01 ~ 9007--01; TD27.F5.4WD |
11320-01T00 |
from US $65.23 |
||
|
11321
|
11321
11321-11T00 Insulator-Engine Mounting, Rear Lh8611--01 ~ 8810--01; TD27.MT |
11321-11T00 |
US $49.54 |
||
|
11340M
|
11340M
11330-22T01 Member Assy-Engine Mount, Rear8810--01 ~ ; TD27.F5.4WD |
11330-22T01 |
US $124.70 |
