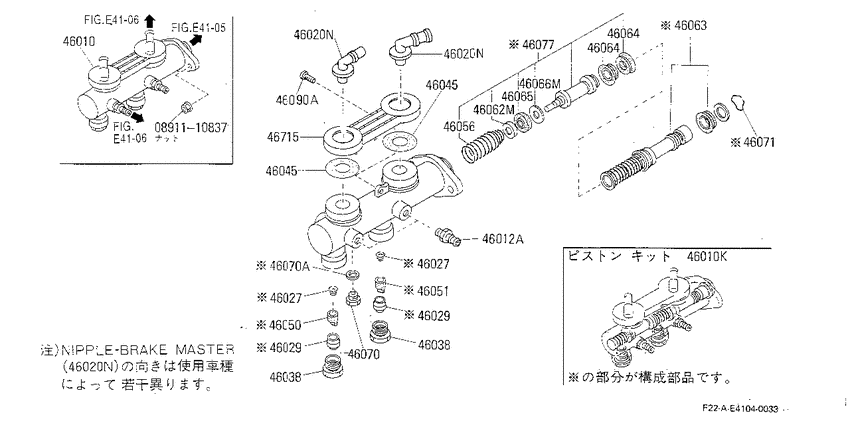

Brake master cylinder (1982-02-01 ~ ; TOKICO; ALL) Diagram Nissan ATLAS/CONDOR
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z16S
- transmission
- MT
- body
- TLF
- body type
- SB/10T
- transmission/shift type
- F4
- drive/tire
- 2WD/ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010-51T02 ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾏｽﾀ-9007--01 ~ ; 1TON; ﾄｷｺ 15/16 |
46010-51T02 |
US $482.86 |
||
|
46010
|
46010
46010-T6000 ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾌﾞﾚ-ｷ ﾏｽﾀ-8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ 15/16 |
46010-T6000 |
US $529.58 |
||
|
46010
|
46010
46011V1826 ﾘﾍﾟｱ- ｷﾂﾄ b/m8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ 15/16 |
46011V1826 |
US $117.07 |
||
|
46010
|
46010
46011W1426 Piston Kit-Tandem Brake Master Cylinder9007--01 ~ ; 1TON; ﾄｷｺ 1 |
46011W1426 |
US $87.98 |
||
|
46010K
|
46010K
46011V1826 ﾘﾍﾟｱ- ｷﾂﾄ b/m8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ 15/16 |
46011V1826 |
US $117.07 |
||
|
46010K
|
46010K
46011W1426 Piston Kit-Tandem Brake Master Cylinder9007--01 ~ ; 1TON; ﾄｷｺ 1 |
46011W1426 |
US $87.98 |
||
|
46012A
|
46012A
41128-B5012 Screw-Bleeder8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
41128-B5012 |
US $6.91 |
||
|
46020N
|
46020N
46026-T6010 Nipple-Brake Master Cylinder8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46026-T6010 |
US $20.45 |
||
|
46020N
|
46020N
46026-T6010 Nipple-Brake Master Cylinder8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46026-T6010 |
US $20.45 |
||
|
46027
|
46027
46056-Y7410 Spring-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46056-Y7410 |
US $0.86 |
||
|
46027
|
46027
46056-Y7410 Spring-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46056-Y7410 |
US $0.86 |
||
|
46029
|
46029
46029Y7410 Seat-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46029Y7410 |
US $2.45 |
||
|
46029
|
46029
46029Y7410 Seat-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46029Y7410 |
US $2.45 |
||
|
46038
|
46038
46038-Y7410 Cap-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46038-Y7410 |
US $16.42 |
||
|
46038
|
46038
46038-Y7410 Cap-Valve8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46038-Y7410 |
US $16.42 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46045W1010 |
from US $3.07 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46045W1010 |
from US $3.07 |
||
|
46050
|
46050
46050-G2500 Valve Assy-Check8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46050-G2500 |
US $5.62 |
||
|
46051
|
46051
46050Y7410 Valve Assy-Check8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46050Y7410 |
US $7.49 |
||
|
46056
|
46056
46075-W1410 Spring-Return, Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46075-W1410 |
US $3.17 |
||
|
46062M
|
46062M
46062-W1410 Seat-Spring, Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46062-W1410 |
US $4.32 |
||
|
46063
|
46063
46063-T8610 Piston Assy-Primary8202--01 ~ 8611--01; Z16+SD23; (15/16) ﾄｷｺ |
46063-T8610 |
US $68.11 |
||
|
46064
|
46064
46068-W1410 Cup-Piston, Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46068-W1410 |
US $3.89 |
||
|
46064
|
46064
46068-W1410 Cup-Piston, Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46068-W1410 |
US $3.89 |
||
|
46065
|
46065
46078-W1410 Cup-Piston, Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46078-W1410 |
US $3.89 |
||
|
46066M
|
46066M
46066-W1410 Spacer-Secondary8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46066-W1410 |
US $4.32 |
||
|
46070
|
46070
46032-W1010 Screw-Stopper8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46032-W1010 |
US $4.32 |
||
|
46070
|
46070
46079-W1010 Packing-Stopper Screw8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46079-W1010 |
US $2.45 |
||
|
46070A
|
46070A
46079-W1010 Packing-Stopper Screw8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46079-W1010 |
US $2.45 |
||
|
46071
|
46071
46071-W1410 Ring-Snap8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46071-W1410 |
US $1.01 |
||
|
46077
|
46077
46073-W1410 Piston Assy-Secondary8202--01 ~ 8611--01; Z16+SD23; (15/16) ﾄｷｺ |
46073-W1410 |
US $51.26 |
||
|
46090A
|
46090A
46037-W1010 Bolt-Reservoir8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46037-W1010 |
US $4.32 |
||
|
46715
|
46715
46027-T6010 Bracket-Brake Master Cylinder8202--01 ~ 8611--01; Z16+SD23; ﾄｷｺ |
46027-T6010 |
US $9.22 |
||
