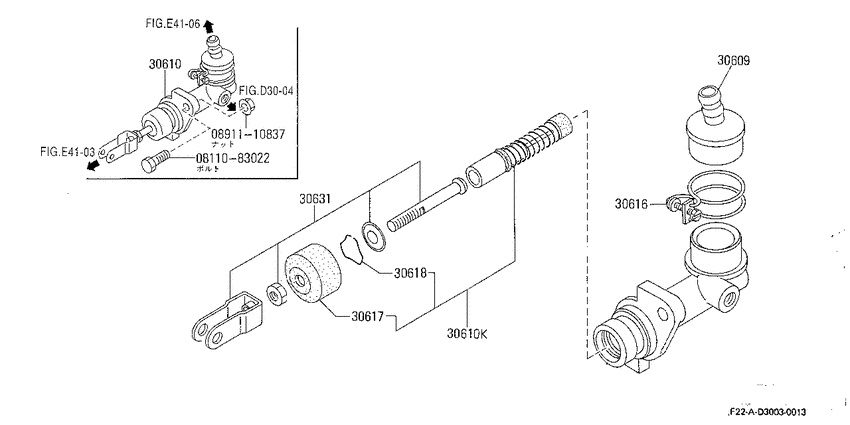

Clutch master cylinder (1982-02-01 ~ ; MT) Diagram Nissan ATLAS/CONDOR
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z16S
- transmission
- MT
- body
- TLF
- body type
- SB/10T
- transmission/shift type
- F4
- drive/tire
- 2WD/ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811083022
|
0811083022
08110-83022
Bolt-hexagon
|
08110-83022 |
— | ||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
30609
|
30609
30617-J2001
Reservoir-Oil, Clutch
8202--01 ~ 8810--01; MT; ﾅﾌﾞｺ |
30617-J2001 |
— | ||
|
30609
|
30609
46090-J2001 Nipple-Clutch Master8810--01 ~ ; MT; ﾅﾌﾞｺ |
46090-J2001 |
US $8.45 |
||
|
30610
|
30610
30610-21T00 Cylinder Assy-Clutch Master9007--01 ~ ; NSB/10T.2WD/ST +SB/10T.2WD/WT.(NA16S+TD23) +SB/15T +LB/15T +LB/10T.(NA16S+TD23); ﾅﾌﾞｺ 5/8 |
30610-21T00 |
US $230.40 |
||
|
30610
|
30610
30610T6000 Cylinder Assy-Clutch Master8202--01 ~ 8806--01; MT; ﾅﾌﾞｺ 5/8 |
30610T6000 |
US $148.32 |
||
|
30610
|
30610
30610-T6010 Cylinder Assy-Clutch Master8806--01 ~ 9007--01; MT; ﾅﾌﾞｺ 5/8 |
30610-T6010 |
US $230.40 |
||
|
30610
|
30610
30611-N0125
Piston Kit-Clutch Master Cylinder
8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ 5/8 |
30611-N0125 |
— | ||
| replacement | |||||
|
30610
|
30610
30611G3625 Piston Kit-Clutch Master Cylinder8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ 5/8 |
30611G3625 |
from US $18.72 |
||
|
30610
|
30610
30611-N0126 Piston Kit-Clutch Master Cylinder9007--01 ~ ; NSB/10T.2WD/ST +SB/10T.2WD/WT.(NA16S+TD23) +SB/15T +LB/15T +LB/10T.(NA16S+TD23); ﾅﾌﾞｺ 5/8 |
30611-N0126 |
US $30.67 |
||
|
30610K
|
30610K
30611-N0125
Piston Kit-Clutch Master Cylinder
8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ 5/8 |
30611-N0125 |
— | ||
| replacement | |||||
|
30610K
|
30610K
30611G3625 Piston Kit-Clutch Master Cylinder8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ 5/8 |
30611G3625 |
from US $18.72 |
||
|
30610K
|
30610K
30611-N0126 Piston Kit-Clutch Master Cylinder9007--01 ~ ; NSB/10T.2WD/ST +SB/10T.2WD/WT.(NA16S+TD23) +SB/15T +LB/15T +LB/10T.(NA16S+TD23); ﾅﾌﾞｺ 5/8 |
30611-N0126 |
US $30.67 |
||
|
30616
|
30616
46016W0400 Band Assy-Reservoir8202--01 ~ ; MT; ﾅﾌﾞｺ |
46016W0400 |
US $5.55 |
||
|
30617
|
30617
4610027260 Cover-Dust8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ |
4610027260 |
US $2.52 |
||
|
30617
|
30617
46100-S5000 Cover-Dust9007--01 ~ ; NSB/10T.2WD/ST +SB/10T.2WD/WT.(NA16S+TD23) +SB/15T +LB/15T +LB/10T.(NA16S+TD23); ﾅﾌﾞｺ |
46100-S5000 |
US $7.92 |
||
|
30618
|
30618
4607027260 Ring-Stopper8202--01 ~ ; MT; ﾅﾌﾞｺ |
4607027260 |
US $1.58 |
||
|
30631
|
30631
30631-21T00 Rod Assy-Push9007--01 ~ ; NSB/10T.2WD/ST +SB/10T.2WD/WT.(NA16S+TD23) +SB/15T +LB/15T +LB/10T.(NA16S+TD23); ﾅﾌﾞｺ |
30631-21T00 |
US $13.10 |
||
|
30631
|
30631
30631-B6800 Rod Assy-Push8202--01 ~ 9007--01; MT; ﾅﾌﾞｺ |
30631-B6800 |
US $9.79 |
||
