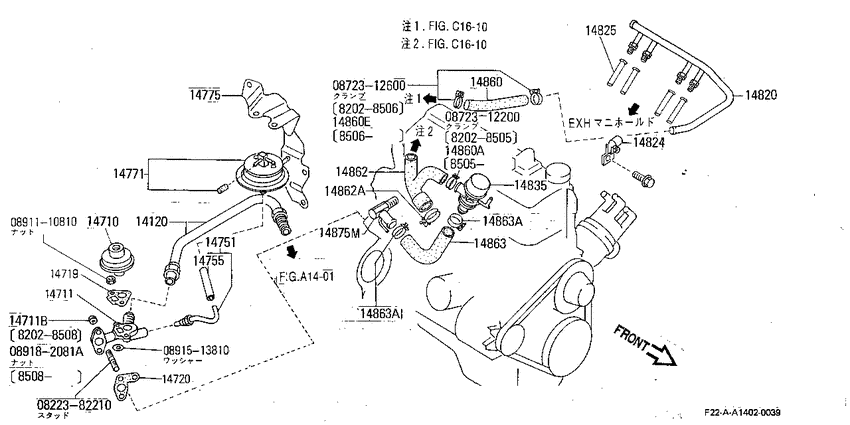

Egr parts (1982-02-01 ~ 1990-07-01; Z16) Diagram Nissan ATLAS/CONDOR
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z16S
- transmission
- MT
- body
- TLF
- body type
- SB/10T
- transmission/shift type
- F4
- drive/tire
- 2WD/ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0822382210
|
0822382210
0822382210 STUD |
0822382210 |
US $3.06 |
||
|
0872312200
|
0872312200
08723-12200
CLAMP-HOSE
|
08723-12200 |
— | ||
| replacement | |||||
|
0872312200
|
0872312200
0155500851 CLAMP |
0155500851 |
from US $2.98 |
||
|
0872312600
|
0872312600
08723-12600 CLAMP-HOSE |
08723-12600 |
US $2.45 |
||
|
0891110810
|
0891110810
08911-10810
NUT
|
08911-10810 |
— | ||
| replacement | |||||
|
0891110810
|
0891110810
089111082A NUTHEX |
089111082A |
US $0.52 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
14120
|
14120
14120-T6060 Egr Tube8810--01 ~ 9007--01; Z16 |
14120-T6060 |
US $69.70 |
||
|
14120
|
14120
14120-T6061 Egr Tube8202--01 ~ 8206--01; Z16 |
14120-T6061 |
US $46.51 |
||
|
14120
|
14120
14120-T6062 Egr Tube8206--01 ~ 8810--01; Z16 |
14120-T6062 |
US $46.51 |
||
|
14710
|
14710
14710-W8900 Exhaust Gas Recircuration Valve8202--01 ~ 9007--01; Z16+Z20 |
14710-W8900 |
US $205.92 |
||
|
14711
|
14711
14711-T5500 Egr Passage8202--01 ~ 9007--01; Z16+Z20 |
14711-T5500 |
US $79.49 |
||
|
14711
|
14711
01225-00081 NUT8202--01 ~ 8508--01; Z16+Z20 |
01225-00081 |
US $2.45 |
||
|
14711B
|
14711B
01225-00081 NUT8202--01 ~ 8508--01; Z16+Z20 |
01225-00081 |
US $2.45 |
||
|
14719
|
14719
14719-N3301 Egr Valve Gasket8202--01 ~ 8912--01; Z16+Z20 |
14719-N3301 |
US $2.45 |
||
| replacement | |||||
|
14719
|
14719
14719-D5705 Egr Valve Gasket8202--01 ~ 8912--01; Z16+Z20 |
14719-D5705 |
US $5.18 |
||
|
14719
|
14719
14719-W0401 Egr Valve Gasket8912--01 ~ 9007--01; Z16+Z20 |
14719-W0401 |
US $5.04 |
||
| replacement | |||||
|
14719
|
14719
14719-W0402 Egr Valve Gasket8912--01 ~ 9007--01; Z16+Z20 |
14719-W0402 |
US $10.12 |
||
|
14720
|
14720
14720-T5500 Egr Passage Gasket8202--01 ~ 9007--01; Z16+Z20 |
14720-T5500 |
US $5.47 |
||
|
14751
|
14751
14750-T6000 Tube Assy-Bpt8202--01 ~ 9007--01; Z16 |
14750-T6000 |
US $15.26 |
||
|
14755
|
14755
14755-T6000 Tube-Passage To Bpt8202--01 ~ 9007--01; Z16 |
14755-T6000 |
US $4.18 |
||
|
14771
|
14771
14771-44S00 Valve Assy-Vvt8202--01 ~ 9007--01; Z16; ｱﾂｷﾞ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
14771-44S00 |
US $161.28 |
||
|
14771
|
14771
14771-D0200 Valve Assy-Vvt8202--01 ~ 9007--01; Z16; ﾋﾀﾁ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
14771-D0200 |
US $234.72 |
||
|
14775
|
14775
14775-25W00 Bracket-Vvt Valve8202--01 ~ 8508--01; Z16 |
14775-25W00 |
US $9.94 |
||
|
14775
|
14775
14775-25W01 Bracket-Vvt Valve8508--01 ~ 9007--01; Z16 |
14775-25W01 |
US $9.94 |
||
|
14820
|
14820
14820-25W03
Pipe Assy-Air Gallery
8202--01 ~ 9007--01; Z16 |
14820-25W03 |
— | ||
|
14824
|
14824
14824-W7002 Pair-Pipe Bracket8202--01 ~ 9007--01; Z16 |
14824-W7002 |
US $5.18 |
||
|
14825
|
14825
14825-25W01 Pipe Assy-Air8202--01 ~ 9007--01; Z16 |
14825-25W01 |
US $7.63 |
||
|
14835
|
14835
14835-W1100 Valve Assy-Ab8202--01 ~ 8611--01; Z16 |
14835-W1100 |
US $79.34 |
||
|
14835
|
14835
14835-W1101 Valve Assy-Ab8611--01 ~ 9007--01; Z16 |
14835-W1101 |
US $83.52 |
||
|
14860
|
14860
14860-25W00 Hose-Air8202--01 ~ 8508--01; Z16 |
14860-25W00 |
US $18.14 |
||
|
14860
|
14860
14860-T6000 Hose-Air8508--01 ~ 9007--01; Z16 |
14860-T6000 |
US $31.97 |
||
|
14860
|
14860
01555-00231
CLAMP
8505--01 ~ 9007--01; Z16 |
01555-00231 |
— | ||
| replacement | |||||
|
14860
|
14860
0155500851 CLAMP8505--01 ~ 9007--01; Z16 |
0155500851 |
from US $2.98 |
||
|
14860
|
14860
01555-00361
CLAMP-HOSE
8506--01 ~ 9007--01; Z16 |
01555-00361 |
— | ||
| replacement | |||||
|
14860
|
14860
0155500881 CLAMP-HOSE8506--01 ~ 9007--01; Z16 |
0155500881 |
from US $2.28 |
||
|
14860A
|
14860A
01555-00231
CLAMP
8505--01 ~ 9007--01; Z16 |
01555-00231 |
— | ||
| replacement | |||||
|
14860A
|
14860A
0155500851 CLAMP8505--01 ~ 9007--01; Z16 |
0155500851 |
from US $2.98 |
||
|
14860E
|
14860E
01555-00361
CLAMP-HOSE
8506--01 ~ 9007--01; Z16 |
01555-00361 |
— | ||
| replacement | |||||
|
14860E
|
14860E
0155500881 CLAMP-HOSE8506--01 ~ 9007--01; Z16 |
0155500881 |
from US $2.28 |
||
|
14862
|
14862
14862-Q4900 Hose-Air Cleaner To Ab Valve8202--01 ~ 9007--01; Z16 |
14862-Q4900 |
US $77.18 |
||
|
14862
|
14862
16439-N5860 Clamp-Hose8202--01 ~ 9007--01; Z16 |
16439-N5860 |
US $4.18 |
||
|
14862A
|
14862A
16439-N5860 Clamp-Hose8202--01 ~ 9007--01; Z16 |
16439-N5860 |
US $4.18 |
||
|
14863
|
14863
14863-T6000 Hose-Ab Valve To Inlet Connector8202--01 ~ 9007--01; Z16 |
14863-T6000 |
US $12.10 |
||
|
14863
|
14863
14867-W7000 Clamp-Hose8202--01 ~ 9007--01; Z16 |
14867-W7000 |
US $3.02 |
||
|
14863A
|
14863A
14867-W7000 Clamp-Hose8202--01 ~ 9007--01; Z16 |
14867-W7000 |
US $3.02 |
||
|
14863A
|
14863A
14867-W7000 Clamp-Hose8202--01 ~ 9007--01; Z16 |
14867-W7000 |
US $3.02 |
||
|
14875M
|
14875M
14875-T6000 Connector-Pipe8202--01 ~ 9007--01; Z16 |
14875-T6000 |
US $12.53 |
||
