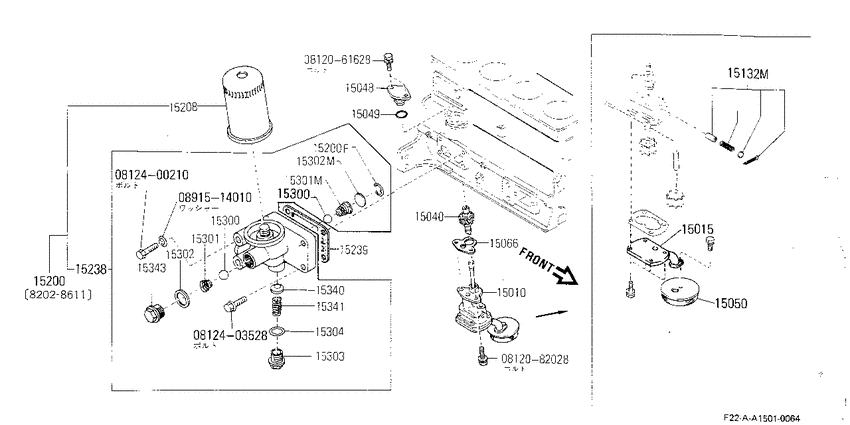

Lubricating system (1982-02-01 ~ 1986-11-01; SD23,SD25) Diagram Nissan ATLAS/CONDOR
- Year
- 1982 - 1986
- Sales region
- Japan
- Engine
- SD25
- transmission
- MT
- body
- CV
- body type
- LB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812400210
|
0812400210
08124-00210
Bolt-hexagon
|
08124-00210 |
— | ||
|
0812403528
|
0812403528
08124-03528
Bolt-hexagon
|
08124-03528 |
— | ||
| replacement | |||||
|
0812403528
|
0812403528
081240351E Bolt-hexagon |
081240351E |
US $1.73 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
15010
|
15010
15010-T7200 Pump Assy-Oil8202--01 ~ 8204--01; SD23+SD25 |
15010-T7200 |
US $231.84 |
||
|
15010
|
15010
15010-T7700
Pump Assy-Oil
8204--01 ~ 8611--01; SD23+SD25 |
15010-T7700 |
— | ||
|
15015
|
15015
15015-T3403 Cover-Oil Pump8202--01 ~ 8611--01; SD23+SD25 |
15015-T3403 |
US $43.92 |
||
|
15040
|
15040
15040-37503
Spindle Assy-Oil Pump Drive
8202--01 ~ 8206--01; SD23+SD25 |
15040-37503 |
— | ||
| replacement | |||||
|
15040
|
15040
15040-37504
Spindle Assy-Oil Pump Drive
8202--01 ~ 8206--01; SD23+SD25 |
15040-37504 |
— | ||
|
15040
|
15040
15040-37504
Spindle Assy-Oil Pump Drive
8206--01 ~ 8611--01; SD23+SD25 |
15040-37504 |
— | ||
|
15048
|
15048
22178-37501 Support-Spindle8202--01 ~ 8611--01; SD23+SD25 |
22178-37501 |
US $12.10 |
||
|
15049
|
15049
22179-37500 Gasket-Spindle8202--01 ~ 8611--01; SD23+SD25 |
22179-37500 |
US $4.46 |
||
|
15050
|
15050
15050-J5301 Strainer Assy-Oil8202--01 ~ 8611--01; SD23+SD25 |
15050-J5301 |
US $12.96 |
||
|
15066
|
15066
15066-37501 Gasket-Oil Pump To Cylinder Block8202--01 ~ 8611--01; SD23+SD25 |
15066-37501 |
US $1.73 |
||
|
15132M
|
15132M
15132-37525 Valve Assy-Regulator8202--01 ~ 8611--01; SD23+SD25 |
15132-37525 |
US $10.08 |
||
|
15200
|
15200
15200-T3470 Filter Assy-Oil8202--01 ~ 8509--01; SD23+SD25 |
15200-T3470 |
US $175.68 |
||
|
15200
|
15200
15200-T6200
Filter Assy-Oil
8509--01 ~ 8611--01; SD23+SD25 |
15200-T6200 |
— | ||
|
15200
|
15200
15303-76201 Seal-O Ring8202--01 ~ 8611--01; SD23+SD25 |
15303-76201 |
US $4.46 |
||
|
15200F
|
15200F
15303-76201 Seal-O Ring8202--01 ~ 8611--01; SD23+SD25 |
15303-76201 |
US $4.46 |
||
|
15208
|
15208
AY100NS033 Filter Assy-Oil8202--01 ~ 8509--01; SD23+SD25 |
AY100NS033 |
US $21.89 |
||
|
15238
|
15238
15236-T3470 Bracket-Oil Filter8202--01 ~ 8611--01; SD23+SD25 |
15236-T3470 |
US $165.60 |
||
|
15239
|
15239
15239-V1700 Gasket-Oil Filter To Cylinder Block8202--01 ~ 8611--01; SD23+SD25 |
15239-V1700 |
US $4.18 |
||
| replacement | |||||
|
15239
|
15239
1523910G00
ｶﾞｽｹﾂﾄ
8202--01 ~ 8611--01; SD23+SD25 |
1523910G00 |
— | ||
|
15300
|
15300
15300-76200 Valve Assy-Relief, Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15300-76200 |
US $2.03 |
||
|
15300
|
15300
15300-76200 Valve Assy-Relief, Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15300-76200 |
US $2.03 |
||
|
15301
|
15301
15301-76200 Spring-Short Valve, Oil Filter8202--01 ~ 8611--01; SD23+SD25 |
15301-76200 |
US $4.46 |
||
|
15301
|
15301
15301-76202 Spring-Valve8202--01 ~ 8611--01; SD23+SD25 |
15301-76202 |
US $5.76 |
||
|
15301M
|
15301M
15301-76202 Spring-Valve8202--01 ~ 8611--01; SD23+SD25 |
15301-76202 |
US $5.76 |
||
|
15302
|
15302
15305-Y1400 Washer-Seal8202--01 ~ 8611--01; SD23+SD25 |
15305-Y1400 |
US $3.46 |
||
|
15302
|
15302
15302-76200 Ring-Snap8202--01 ~ 8611--01; SD23+SD25 |
15302-76200 |
US $2.16 |
||
|
15302M
|
15302M
15302-76200 Ring-Snap8202--01 ~ 8611--01; SD23+SD25 |
15302-76200 |
US $2.16 |
||
|
15303
|
15303
15303-61503 Plug-Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15303-61503 |
US $12.10 |
||
| replacement | |||||
|
15303
|
15303
15134-6150A Plug-Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15134-6150A |
US $12.10 |
||
|
15304
|
15304
15304-61501 Gasket-Oil Filter8202--01 ~ 8611--01; SD23+SD25 |
15304-61501 |
US $2.59 |
||
| replacement | |||||
|
15304
|
15304
15304-Y1400
Gasket-oil filter
8202--01 ~ 8611--01; SD23+SD25 |
15304-Y1400 |
— | ||
|
15340
|
15340
15280-90001 Valve Assy-Relief, Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15280-90001 |
US $26.47 |
||
|
15341
|
15341
15341-61500 Spring-Valve, Oil Cooler8202--01 ~ 8611--01; SD23+SD25 |
15341-61500 |
US $5.76 |
||
|
15343
|
15343
15303-Y1400 Plug8202--01 ~ 8611--01; SD23+SD25 |
15303-Y1400 |
US $35.71 |
||
