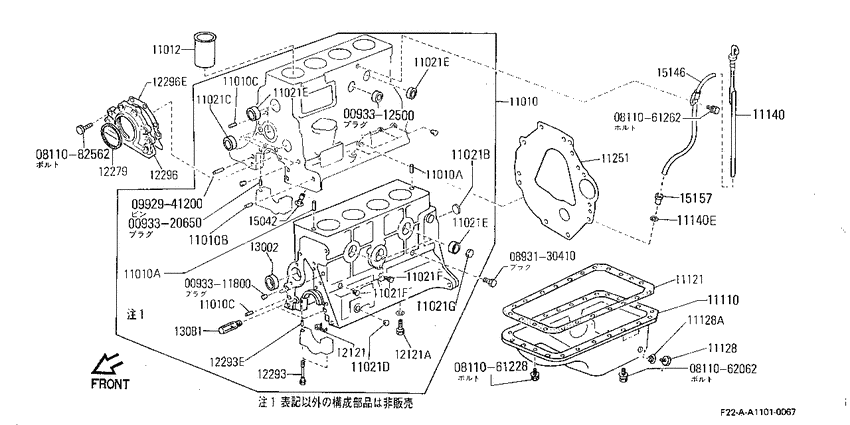

Cylinder - block & ｵｲﾙﾊﾟﾝ (1982-02-01 ~ 1986-11-01; SD23,SD25) Diagram Nissan ATLAS/CONDOR
- Year
- 1982 - 1986
- Sales region
- Japan
- Engine
- SD25
- transmission
- MT
- body
- CV
- body type
- LB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093311800
|
0093311800
00933-11800
PLUG-TAPER
|
00933-11800 |
— | ||
|
0093320650
|
0093320650
00933-20650 PLUG |
00933-20650 |
US $1.73 |
||
|
0811061228
|
0811061228
08110-61228
Bolt-hexagon
|
08110-61228 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811062062
|
0811062062
08110-62062
Bolt-hexagon
|
08110-62062 |
— | ||
|
0811082562
|
0811082562
08110-82562
Bolt-hexagon
|
08110-82562 |
— | ||
|
0893130410
|
0893130410
08931-30410
Plug-Drain
|
08931-30410 |
— | ||
| replacement | |||||
|
0893130410
|
0893130410
089313041A
Plug-Drain
|
089313041A |
— | ||
|
0992941200
|
0992941200
09929-41200
ﾋﾟﾝ,ｽﾄﾚ-ﾄ
|
09929-41200 |
— | ||
|
11010
|
11010
11009-T7200 Block Assy-Cylinder8308--01 ~ 8508--01; SD25; E/#SD25-026323[ |
11009-T7200 |
US $2,576 |
||
|
11010
|
11010
11009-T7203
Block Assy-Cylinder
8202--01 ~ 8308--01; SD25 |
11009-T7203 |
— | ||
| replacement | |||||
|
11010
|
11010
11009-T7200 Block Assy-Cylinder8202--01 ~ 8308--01; SD25 |
11009-T7200 |
US $2,576 |
||
|
11010
|
11010
11009-T7206
Block Assy-Cylinder
8508--01 ~ 8611--01; SD25 |
11009-T7206 |
— | ||
|
11010
|
11010
01522-08144 Bolt8202--01 ~ 8611--01; SD23+SD25 |
01522-08144 |
US $1.73 |
||
|
11010
|
11010
01522-06124 DOWEL-BLOCK TO TRANSMISSION8202--01 ~ 8611--01; SD23+SD25 |
01522-06124 |
from US $2.45 |
||
|
11010
|
11010
30412P5100 Dowel-Block8202--01 ~ 8611--01; SD23+SD25 |
30412P5100 |
from US $0.56 |
||
|
11010A
|
11010A
01522-08144 Bolt8202--01 ~ 8611--01; SD23+SD25 |
01522-08144 |
US $1.73 |
||
|
11010A
|
11010A
01522-08144 Bolt8202--01 ~ 8611--01; SD23+SD25 |
01522-08144 |
US $1.73 |
||
|
11010B
|
11010B
01522-06124 DOWEL-BLOCK TO TRANSMISSION8202--01 ~ 8611--01; SD23+SD25 |
01522-06124 |
from US $2.45 |
||
|
11010C
|
11010C
30412P5100 Dowel-Block8202--01 ~ 8611--01; SD23+SD25 |
30412P5100 |
from US $0.56 |
||
|
11010C
|
11010C
30412P5100 Dowel-Block8202--01 ~ 8611--01; SD23+SD25 |
30412P5100 |
from US $0.56 |
||
|
11012
|
11012
11012-L2002 Liner-Cylinder8202--01 ~ 8611--01; SD23+SD25 |
11012-L2002 |
US $205.92 |
||
| replacement | |||||
|
11012
|
11012
11012L2004
Liner-Cylinder
8202--01 ~ 8611--01; SD23+SD25 |
11012L2004 |
— | ||
|
11021B
|
11021B
01648-00224 Plug-Taper8406--01 ~ 8611--01; SD23+SD25 |
01648-00224 |
US $5.04 |
||
|
11021C
|
11021C
11019-32200 Plug-Welch8202--01 ~ 8611--01; SD23+SD25; D=44.425 |
11019-32200 |
US $3.06 |
||
|
11021D
|
11021D
01642-02134 PLUG-WELCH8211--01 ~ 8611--01; SD23+SD25 |
01642-02134 |
US $3.46 |
||
|
11021E
|
11021E
01648-00084 Plug-Taper8202--01 ~ 8611--01; SD23+SD25 |
01648-00084 |
US $4.96 |
||
|
11021E
|
11021E
01648-00084 Plug-Taper8202--01 ~ 8611--01; SD23+SD25 |
01648-00084 |
US $4.96 |
||
|
11021E
|
11021E
01648-00084 Plug-Taper8202--01 ~ 8611--01; SD23+SD25 |
01648-00084 |
US $4.96 |
||
|
11021F
|
11021F
0164202114 PLUG-THREAD8202--01 ~ 8611--01; SD23+SD25 |
0164202114 |
US $3.35 |
||
|
11021F
|
11021F
0164202114 PLUG-THREAD8202--01 ~ 8611--01; SD23+SD25 |
0164202114 |
US $3.35 |
||
|
11021G
|
11021G
01648-00024 Plug-Taper8406--01 ~ 8611--01; SD23+SD25 |
01648-00024 |
US $4.18 |
||
|
11110
|
11110
11110-R8300 Pan Assy-Oil8508--01 ~ 8611--01; SD23+SD25 |
11110-R8300 |
US $434.71 |
||
|
11110
|
11110
11110-T7200 Pan Assy-Oil8202--01 ~ 8212--01; SD23+SD25 |
11110-T7200 |
US $279.36 |
||
|
11110
|
11110
11110-T7202 Pan Assy-Oil8212--01 ~ 8508--01; SD23+SD25 |
11110-T7202 |
US $279.36 |
||
|
11121
|
11121
11121-V1700 Gasket-Oil Pan8202--01 ~ 8611--01; SD23+SD25 |
11121-V1700 |
US $60.05 |
||
| replacement | |||||
|
11121
|
11121
11121-10G00
Gasket-Oil Pan
8202--01 ~ 8611--01; SD23+SD25 |
11121-10G00 |
— | ||
|
11128
|
11128
1112869200
Plug-Drain
8202--01 ~ 8611--01; SD23+SD25 |
1112869200 |
— | ||
| replacement | |||||
|
11128
|
11128
11128-6920A Plug-Drain8202--01 ~ 8611--01; SD23+SD25 |
11128-6920A |
from US $7.44 |
||
|
11128
|
11128
1102661000 Washer-Drain Plug8202--01 ~ 8611--01; SD23+SD25 |
1102661000 |
from US $0.85 |
||
|
11128A
|
11128A
1102661000 Washer-Drain Plug8202--01 ~ 8611--01; SD23+SD25 |
1102661000 |
from US $0.85 |
||
|
11140
|
11140
15140-T7202 Gauge-Oil Level8202--01 ~ 8611--01; SD23+SD25 |
15140-T7202 |
from US $15.84 |
||
|
11140
|
11140
15147-37500 Ring8202--01 ~ 8611--01; SD23+SD25 |
15147-37500 |
US $2.45 |
||
|
11140E
|
11140E
15147-37500 Ring8202--01 ~ 8611--01; SD23+SD25 |
15147-37500 |
US $2.45 |
||
|
11251
|
11251
30411-38702 Plate-Engine, Rear8202--01 ~ 8611--01; SD23+SD25 |
30411-38702 |
US $38.16 |
||
|
12121
|
12121
12121-Y5201 Jet Assy-Oil8202--01 ~ 8611--01; SD23+SD25 |
12121-Y5201 |
US $17.71 |
||
|
12121
|
12121
12123-Z5000 Bolt-Oil Jet8202--01 ~ 8601--01; SD23+SD25 |
12123-Z5000 |
US $13.10 |
||
| replacement | |||||
|
12121
|
12121
12123-V1300
Bolt-oil jet
8202--01 ~ 8601--01; SD23+SD25 |
12123-V1300 |
— | ||
|
12121
|
12121
12123-Z5500 Bolt-Oil Jet8601--01 ~ 8611--01; SD23+SD25 |
12123-Z5500 |
US $12.82 |
||
|
12121A
|
12121A
12123-Z5000 Bolt-Oil Jet8202--01 ~ 8601--01; SD23+SD25 |
12123-Z5000 |
US $13.10 |
||
| replacement | |||||
|
12121A
|
12121A
12123-V1300
Bolt-oil jet
8202--01 ~ 8601--01; SD23+SD25 |
12123-V1300 |
— | ||
|
12121A
|
12121A
12123-Z5500 Bolt-Oil Jet8601--01 ~ 8611--01; SD23+SD25 |
12123-Z5500 |
US $12.82 |
||
|
12279
|
12279
12279-T7201 Seal-Oil, Crankshaft Rear8210--01 ~ 8603--01; SD23+SD25 |
12279-T7201 |
US $40.03 |
||
|
12279
|
12279
12279-T7202 Seal-Oil, Crankshaft Rear8603--01 ~ 8611--01; SD23+SD25 |
12279-T7202 |
US $40.03 |
||
|
12279
|
12279
12279-V1700 Seal-Oil, Crankshaft Rear8202--01 ~ 8210--01; SD23+SD25 |
12279-V1700 |
US $40.03 |
||
|
12293
|
12293
12293-37501 Bolt-Main Bearing Cap8202--01 ~ 8611--01; SD23+SD25 |
12293-37501 |
US $4.18 |
||
|
12293
|
12293
01522-05104 PIN-HOLLOW8202--01 ~ 8611--01; SD23+SD25 |
01522-05104 |
US $2.45 |
||
|
12293E
|
12293E
01522-05104 PIN-HOLLOW8202--01 ~ 8611--01; SD23+SD25 |
01522-05104 |
US $2.45 |
||
|
12296
|
12296
12296-09W00 Retainer-Oil Seal, Rear8407--01 ~ 8607--01; SD23+SD25 |
12296-09W00 |
US $61.20 |
||
|
12296
|
12296
12296-10G00 Retainer-Oil Seal, Rear8607--01 ~ 8611--01; SD23+SD25 |
12296-10G00 |
US $61.20 |
||
|
12296
|
12296
12296-V1700 Retainer-Oil Seal, Rear8202--01 ~ 8407--01; SD23+SD25 |
12296-V1700 |
US $61.20 |
||
|
12296
|
12296
12297-V1700 Gasket-Retainer8202--01 ~ 8611--01; SD23+SD25 |
12297-V1700 |
US $9.65 |
||
| replacement | |||||
|
12296
|
12296
12298-10G00
Gasket-retainer
8202--01 ~ 8611--01; SD23+SD25 |
12298-10G00 |
— | ||
|
12296E
|
12296E
12297-V1700 Gasket-Retainer8202--01 ~ 8611--01; SD23+SD25 |
12297-V1700 |
US $9.65 |
||
| replacement | |||||
|
12296E
|
12296E
12298-10G00
Gasket-retainer
8202--01 ~ 8611--01; SD23+SD25 |
12298-10G00 |
— | ||
|
13002
|
13002
13002-37501 Bush Set8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ STD |
13002-37501 |
US $51.41 |
||
|
13002
|
13002
13004-37501 Bush Set8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ US=0.75 |
13004-37501 |
US $46.80 |
||
|
13081
|
13081
13081-76201 Jet-Oil, Timing Chain8202--01 ~ 8503--01; SD23+SD25 |
13081-76201 |
US $7.34 |
||
|
13081
|
13081
13081-76202 Jet-Oil, Timing Chain8503--01 ~ 8611--01; SD23+SD25 |
13081-76202 |
US $5.18 |
||
|
15042
|
15042
15042-V1700 Bush-Oil Pump Drive Spindle8202--01 ~ 8208--01; SD23+SD25 |
15042-V1700 |
US $9.07 |
||
|
15042
|
15042
15042-V1701 Bush-Oil Pump Drive Spindle8208--01 ~ 8611--01; SD23+SD25 |
15042-V1701 |
US $12.82 |
||
|
15146
|
15146
15150-T8202 Guide-Oil Level Gauge8202--01 ~ 8611--01; SD23+SD25 |
15150-T8202 |
US $59.47 |
||
|
15157
|
15157
15157-T8200 Tube-Guide8202--01 ~ 8611--01; SD23+SD25 |
15157-T8200 |
US $10.80 |
||
