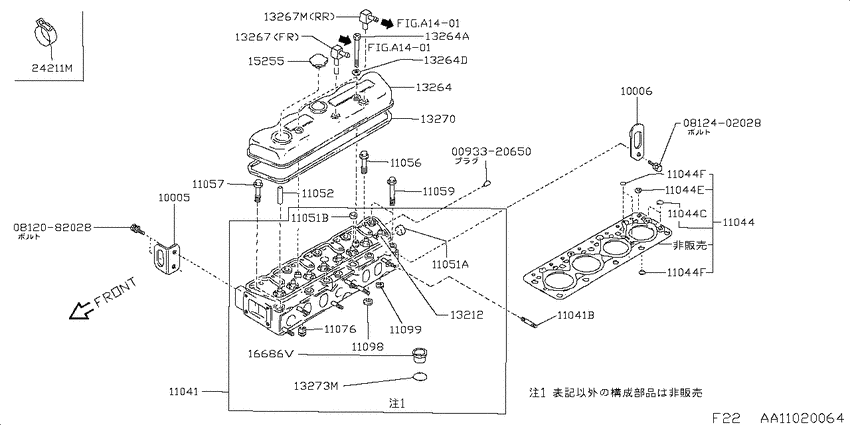

Cylinder - head & ﾛﾂｶ- ｶﾊﾞ- (1982-02-01 ~ 1986-11-01; SD23,SD25) Diagram Nissan ATLAS/CONDOR
- Year
- 1982 - 1986
- Sales region
- Japan
- Engine
- SD25
- transmission
- MT
- body
- CV
- body type
- LB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093320650
|
0093320650
00933-20650 PLUG |
00933-20650 |
US $1.73 |
||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
10005
|
10005
10005-Q4000 Slinger-Engine8202--01 ~ 8611--01; SD23+SD25 |
10005-Q4000 |
US $4.18 |
||
|
10006
|
10006
10006-37500 Slinger-Engine8202--01 ~ 8611--01; SD23+SD25 |
10006-37500 |
US $6.05 |
||
|
11041
|
11041
11041-29W00 Head Assy-Cylinder8308--01 ~ 8611--01; SD25 |
11041-29W00 |
US $1,380.60 |
||
|
11041
|
11041
11041-L2003 Head Assy-Cylinder8202--01 ~ 8308--01; SD25 |
11041-L2003 |
US $2,352 |
||
|
11041
|
11041
01151-01004 STUD8202--01 ~ 8611--01; SD23+SD25 |
01151-01004 |
US $2.30 |
||
|
11041B
|
11041B
01151-01004 STUD8202--01 ~ 8611--01; SD23+SD25 |
01151-01004 |
US $2.30 |
||
|
11044
|
11044
11044-09W00 Gasket-Cylinder Head8304--01 ~ 8611--01; SD23+SD25 |
11044-09W00 |
US $118.51 |
||
| replacement | |||||
|
11044
|
11044
11044-09W01 Gasket-Cylinder Head8304--01 ~ 8611--01; SD23+SD25 |
11044-09W01 |
US $118.51 |
||
|
11044
|
11044
11044-L2000
Gasket-Cylinder Head
8202--01 ~ 8304--01; SD23+SD25 |
11044-L2000 |
— | ||
|
11044
|
11044
11048-76220 Ring-Rubber, Head Gasket8202--01 ~ 8611--01; SD23+SD25 |
11048-76220 |
US $12.82 |
||
|
11044
|
11044
15296-37501
Ring-Rubber, Head Gasket
8202--01 ~ 8611--01; SD23+SD25 |
15296-37501 |
— | ||
|
11044
|
11044
11047-Y1400 Ring-Rubber8202--01 ~ 8611--01; SD23+SD25 |
11047-Y1400 |
US $8.50 |
||
|
11044C
|
11044C
11048-76220 Ring-Rubber, Head Gasket8202--01 ~ 8611--01; SD23+SD25 |
11048-76220 |
US $12.82 |
||
|
11044E
|
11044E
15296-37501
Ring-Rubber, Head Gasket
8202--01 ~ 8611--01; SD23+SD25 |
15296-37501 |
— | ||
|
11044F
|
11044F
11047-Y1400 Ring-Rubber8202--01 ~ 8611--01; SD23+SD25 |
11047-Y1400 |
US $8.50 |
||
|
11044F
|
11044F
11047-Y1400 Ring-Rubber8202--01 ~ 8611--01; SD23+SD25 |
11047-Y1400 |
US $8.50 |
||
|
11051A
|
11051A
01648-00084 Plug-Taper8202--01 ~ 8611--01; SD23+SD25 |
01648-00084 |
US $4.96 |
||
|
11051B
|
11051B
11019-76200 Plug-Welch8202--01 ~ 8611--01; SD23+SD25 |
11019-76200 |
US $3.46 |
||
|
11052
|
11052
11052-76203 Pipe-Push Rod8202--01 ~ 8611--01; SD23+SD25 |
11052-76203 |
US $7.78 |
||
|
11056
|
11056
11059-76201 Bolt-Cylinder Head8202--01 ~ 8611--01; SD23+SD25; L=96 |
11059-76201 |
US $5.47 |
||
|
11057
|
11057
11056-T3400 Bolt-Cylinder Head8202--01 ~ 8611--01; SD23+SD25 |
11056-T3400 |
US $19.58 |
||
|
11059
|
11059
11056-37502 Bolt-Cylinder Head8202--01 ~ 8611--01; SD23+SD25 |
11056-37502 |
US $12.24 |
||
|
11076
|
11076
11076-L2003 Chamber Assy-Combustion8202--01 ~ 8312--01; SD23+SD25 |
11076-L2003 |
US $49.68 |
||
|
11076
|
11076
11076-L2008 Chamber Assy-Combustion8312--01 ~ 8611--01; SD23+SD25 |
11076-L2008 |
US $72.29 |
||
|
11098
|
11098
13214-L2000 Seat-Valve, Intake8202--01 ~ 8611--01; SD23+SD25 |
13214-L2000 |
US $23.33 |
||
| replacement | |||||
|
11098
|
11098
11098-L2000
Seat-valve,intake
8202--01 ~ 8611--01; SD23+SD25 |
11098-L2000 |
— | ||
|
11099
|
11099
13215-L2010 Seat-Valve, Exhaust8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ OS=0.2 |
13215-L2010 |
US $31.25 |
||
| replacement | |||||
|
11099
|
11099
11099-L2010
Seat-valve,exhaust
8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ OS=0.2 |
11099-L2010 |
— | ||
|
11099
|
11099
13215-L2011 Seat-Valve, Exhaust8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ OS=0.4 |
13215-L2011 |
US $30.67 |
||
| replacement | |||||
|
11099
|
11099
11099-L2011
Seat-valve,exhaust
8202--01 ~ 8611--01; SD23+SD25; ｾﾝﾀｸ OS=0.4 |
11099-L2011 |
— | ||
|
13212
|
13212
13211-V1700 Guide-Valve, Intake8202--01 ~ 8611--01; SD23+SD25 |
13211-V1700 |
US $38.16 |
||
|
13264
|
13264
13264-T7285 Cover Assy-Valve Rocker8408--01 ~ 8501--01; SD25 |
13264-T7285 |
US $227.52 |
||
|
13264
|
13264
13264-T7287 Cover Assy-Valve Rocker8501--01 ~ 8611--01; SD25 |
13264-T7287 |
US $190.08 |
||
|
13264
|
13264
13264-T8285 Cover Assy-Valve Rocker8202--01 ~ 8408--01; SD23+SD25 |
13264-T8285 |
US $208.80 |
||
|
13264
|
13264
13240-37502 Bolt-Rocker Cover8202--01 ~ 8611--01; SD23+SD25 |
13240-37502 |
US $3.46 |
||
|
13264
|
13264
13268-C8600 Washer8411--01 ~ 8611--01; SD23+SD25 |
13268-C8600 |
US $6.48 |
||
| replacement | |||||
|
13264
|
13264
13268-C8700 Washer8411--01 ~ 8611--01; SD23+SD25 |
13268-C8700 |
US $6.48 |
||
|
13264
|
13264
15266-76200 Washer8202--01 ~ 8404--01; SD23+SD25 |
15266-76200 |
US $5.47 |
||
|
13264
|
13264
15266-C6801 Washer8404--01 ~ 8411--01; SD23+SD25 |
15266-C6801 |
US $8.06 |
||
| replacement | |||||
|
13264
|
13264
13268-C8700 Washer8404--01 ~ 8411--01; SD23+SD25 |
13268-C8700 |
US $6.48 |
||
|
13264A
|
13264A
13240-37502 Bolt-Rocker Cover8202--01 ~ 8611--01; SD23+SD25 |
13240-37502 |
US $3.46 |
||
|
13264D
|
13264D
13268-C8600 Washer8411--01 ~ 8611--01; SD23+SD25 |
13268-C8600 |
US $6.48 |
||
| replacement | |||||
|
13264D
|
13264D
13268-C8700 Washer8411--01 ~ 8611--01; SD23+SD25 |
13268-C8700 |
US $6.48 |
||
|
13264D
|
13264D
15266-76200 Washer8202--01 ~ 8404--01; SD23+SD25 |
15266-76200 |
US $5.47 |
||
|
13264D
|
13264D
15266-C6801 Washer8404--01 ~ 8411--01; SD23+SD25 |
15266-C6801 |
US $8.06 |
||
| replacement | |||||
|
13264D
|
13264D
13268-C8700 Washer8404--01 ~ 8411--01; SD23+SD25 |
13268-C8700 |
US $6.48 |
||
|
13267
|
13267
11035-T6202 Connector-Breather Tube8202--01 ~ 8411--01; SD23+SD25 |
11035-T6202 |
US $26.35 |
||
|
13267
|
13267
13277-T6202 Connector-Breather Tube8411--01 ~ 8611--01; SD23+SD25 |
13277-T6202 |
US $26.35 |
||
|
13267
|
13267
11035-T6203 Connector-Breather Tube8202--01 ~ 8411--01; SD23+SD25 |
11035-T6203 |
US $26.35 |
||
|
13267
|
13267
13277-T6200 Connector-Breather Tube8411--01 ~ 8611--01; SD23+SD25 |
13277-T6200 |
US $26.06 |
||
|
13267M
|
13267M
11035-T6203 Connector-Breather Tube8202--01 ~ 8411--01; SD23+SD25 |
11035-T6203 |
US $26.35 |
||
|
13267M
|
13267M
13277-T6200 Connector-Breather Tube8411--01 ~ 8611--01; SD23+SD25 |
13277-T6200 |
US $26.06 |
||
|
13270
|
13270
13270-76200 Gasket-Rocker Cover8202--01 ~ 8404--01; SD23+SD25 |
13270-76200 |
US $29.23 |
||
|
13270
|
13270
13270-R8800 Gasket-Rocker Cover8411--01 ~ 8611--01; SD23+SD25 |
13270-R8800 |
US $23.76 |
||
| replacement | |||||
|
13270
|
13270
13270-R8810 Gasket-Rocker Cover8411--01 ~ 8611--01; SD23+SD25 |
13270-R8810 |
US $23.76 |
||
|
13270
|
13270
13270-V0600
Gasket-Rocker Cover
8404--01 ~ 8411--01; SD23+SD25 |
13270-V0600 |
— | ||
|
15255
|
15255
15255T8200 Cap Assy-Oil Filler8202--01 ~ 8611--01; SD23+SD25 |
15255T8200 |
US $12.96 |
||
|
24211M
|
24211M
21383-Z5001 Clamp-Hose8202--01 ~ 8508--01; SD23+SD25 |
21383-Z5001 |
US $5.04 |
||
| replacement | |||||
|
24211M
|
24211M
22316-T8000 Clamp-Hose8202--01 ~ 8508--01; SD23+SD25 |
22316-T8000 |
US $4.03 |
||
|
24211M
|
24211M
22316-T8000 Clamp-Hose8508--01 ~ 8611--01; SD23+SD25 |
22316-T8000 |
US $4.03 |
||
