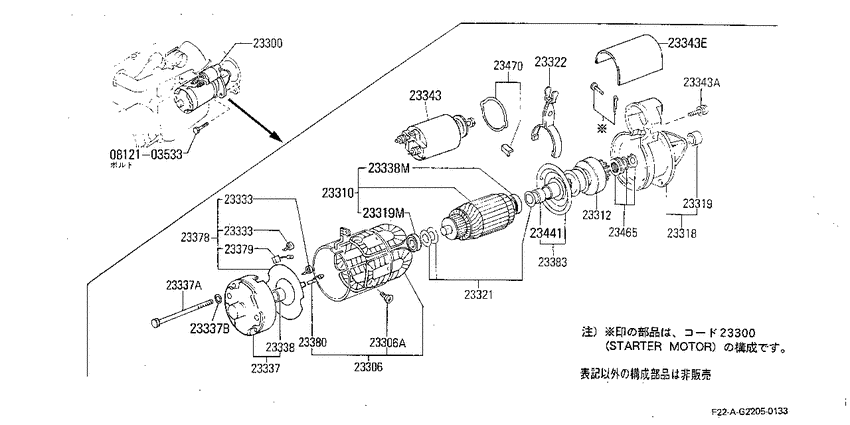

Starter motor (1982-02-01 ~ 1985-08-01; 日立; SD25) Diagram Nissan ATLAS/CONDOR
- Year
- 1982 - 1986
- Sales region
- Japan
- Engine
- SD25
- transmission
- MT
- body
- CV
- body type
- LB/15T
- transmission/shift type
- R5
- drive/tire
- 2WD/ST
- chassis
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103533
|
0812103533
08121-03533 Bolt-hexagon |
08121-03533 |
US $2.45 |
||
| replacement | |||||
|
0812103533
|
0812103533
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
23300
|
23300
23300-31W02 Motor Assy-Starter8202--01 ~ 8508--01; SD25; ﾋﾀﾁ 12V S12-68D |
23300-31W02 |
US $885 |
||
|
23300
|
23300
23300-83W00 Motor Assy-Starter8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ 12V-2KW S13-104 |
23300-83W00 |
US $821.28 |
||
|
23300
|
23300
23300-T7200 Motor Assy-Starter8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ 24V S25-132C ｶﾝﾚｲﾁ ｼﾖｳ |
23300-T7200 |
US $1,298.47 |
||
|
23300
|
23300
23300-T7201 Motor Assy-Starter8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ 24V S25-132F ｶﾝﾚｲﾁ ｼﾖｳ |
23300-T7201 |
US $1,298.47 |
||
|
23300
|
23300
23300-31W02 Motor Assy-Starter8202--01 ~ 8508--01; SD25; ﾋﾀﾁ 12V S12-68D |
23300-31W02 |
US $885 |
||
|
23300
|
23300
23300-83W00 Motor Assy-Starter8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ 12V-2KW S13-104 |
23300-83W00 |
US $821.28 |
||
|
23300
|
23300
23300-T7200 Motor Assy-Starter8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ 24V S25-132C ｶﾝﾚｲﾁ ｼﾖｳ |
23300-T7200 |
US $1,298.47 |
||
|
23300
|
23300
23300-T7201 Motor Assy-Starter8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ 24V S25-132F ｶﾝﾚｲﾁ ｼﾖｳ |
23300-T7201 |
US $1,298.47 |
||
|
23306
|
23306
23306-10G00 Coil Assy-Field8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23306-10G00 |
US $102.96 |
||
|
23306
|
23306
23306-76200 Coil Assy-Field8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23306-76200 |
US $138.24 |
||
|
23306
|
23306
23306-T5601
Coil Assy-Field
8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23306-T5601 |
— | ||
|
23306
|
23306
23306-T7200 Coil Assy-Field8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23306-T7200 |
US $191.52 |
||
|
23306
|
23306
23305-09500 Screw-Pole Core Set8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23306
|
23306
23305-37502 Screw-Pole Core Set8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23305-37502 |
US $1.01 |
||
| replacement | |||||
|
23306
|
23306
23305-E6800
Screw-pole core set
8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23305-E6800 |
— | ||
|
23306A
|
23306A
23305-09500 Screw-Pole Core Set8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23305-09500 |
US $1.11 |
||
|
23306A
|
23306A
23305-37502 Screw-Pole Core Set8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23305-37502 |
US $1.01 |
||
| replacement | |||||
|
23306A
|
23306A
23305-E6800
Screw-pole core set
8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23305-E6800 |
— | ||
|
23310
|
23310
23310-10G00 Armature Assy8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23310-10G00 |
US $584.81 |
||
|
23310
|
23310
23310-37502 Armature Assy8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23310-37502 |
US $511.18 |
||
|
23310
|
23310
23310-T5600
Armature Assy
8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-T5600 |
— | ||
|
23310
|
23310
23310-T7200 Armature Assy8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-T7200 |
US $546.58 |
||
|
23312
|
23312
23312-10G00 Pinion Assy8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23312-10G00 |
US $254.88 |
||
|
23312
|
23312
23312-31W00 Pinion Assy8503--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23312-31W00 |
US $126.14 |
||
|
23312
|
23312
23312-37504 Pinion Assy8202--01 ~ 8503--01; SD25; ﾋﾀﾁ |
23312-37504 |
US $126.14 |
||
|
23312
|
23312
23312-T5601 Pinion Assy8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23312-T5601 |
US $312.94 |
||
|
23318
|
23318
23318-10G00 Case Assy-Gear8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23318-10G00 |
US $82.66 |
||
|
23318
|
23318
23318-31W00 Case Assy-Gear8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23318-31W00 |
US $96.19 |
||
|
23318
|
23318
23318-V0601 Case Assy-Gear8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-V0601 |
US $101.52 |
||
|
23319
|
23319
23319-37502 Metal-Gear Case8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23319-37502 |
US $9.65 |
||
| replacement | |||||
|
23319
|
23319
23319-61502
Metal-gear case
8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23319-61502 |
— | ||
|
23319
|
23319
23319-61503
Metal-Gear Case
8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-61503 |
— | ||
| replacement | |||||
|
23319
|
23319
23319-61502
Metal-gear case
8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-61502 |
— | ||
|
23319
|
23319
23319-M4900 Metal-Gear Case8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23319-M4900 |
US $21.46 |
||
|
23319
|
23319
23338-J5500 Bearing-Gear Case8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-J5500 |
US $33.41 |
||
|
23319M
|
23319M
23319-M4900 Metal-Gear Case8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23319-M4900 |
US $21.46 |
||
|
23319M
|
23319M
23338-J5500 Bearing-Gear Case8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-J5500 |
US $33.41 |
||
|
23321
|
23321
23372-99004 Washer Set-Thrust8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23372-99004 |
US $5.76 |
||
|
23321
|
23321
23372-V0600 Washer Set-Thrust8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23372-V0600 |
US $11.09 |
||
|
23322
|
23322
23320-J2001 Lever Set-Shift8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23320-J2001 |
US $12.10 |
||
|
23322
|
23322
23322-10G00 Lever Set-Shift8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23322-10G00 |
US $19.30 |
||
|
23322
|
23322
23322-61502 Lever Set-Shift8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-61502 |
US $36.58 |
||
|
23333
|
23333
23108-65000 Spring-Brush8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23108-65000 |
US $2.45 |
||
|
23333
|
23333
23333-10G00 Spring-Brush8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23333-10G00 |
US $4.18 |
||
|
23333
|
23333
23333-J5500 Spring-Brush8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-J5500 |
US $7.49 |
||
|
23333
|
23333
23333-Z9001 Spring-Brush8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-Z9001 |
US $7.06 |
||
|
23333
|
23333
23108-65000 Spring-Brush8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23108-65000 |
US $2.45 |
||
|
23333
|
23333
23333-10G00 Spring-Brush8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23333-10G00 |
US $4.18 |
||
|
23333
|
23333
23333-J5500 Spring-Brush8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-J5500 |
US $7.49 |
||
|
23333
|
23333
23333-Z9001 Spring-Brush8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-Z9001 |
US $7.06 |
||
|
23337
|
23337
23337-10G00 Cover Assy-Rear8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23337-10G00 |
US $58.32 |
||
|
23337
|
23337
23337-J2001 Cover Assy-Rear8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23337-J2001 |
US $44.21 |
||
|
23337
|
23337
23337-V0600 Cover Assy-Rear8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-V0600 |
US $105.70 |
||
|
23337
|
23337
23340-T9001 Bolt-Through8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23340-T9001 |
US $4.18 |
||
|
23337
|
23337
23340-Y1400 Bolt-Through8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-Y1400 |
US $5.18 |
||
|
23337
|
23337
23353-G7000 Bolt8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23353-G7000 |
US $1.73 |
||
|
23337
|
23337
23366-61500
Packing Set
8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23366-61500 |
— | ||
|
23337A
|
23337A
23340-T9001 Bolt-Through8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23340-T9001 |
US $4.18 |
||
|
23337A
|
23337A
23340-Y1400 Bolt-Through8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-Y1400 |
US $5.18 |
||
|
23337A
|
23337A
23353-G7000 Bolt8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23353-G7000 |
US $1.73 |
||
|
23337B
|
23337B
23366-61500
Packing Set
8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23366-61500 |
— | ||
|
23338
|
23338
23338-37502 Metal-Rear Cover8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23338-37502 |
US $11.38 |
||
|
23338
|
23338
23338-J5500 Bearing-Gear Case8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-J5500 |
US $33.41 |
||
|
23338
|
23338
23338-M4900 Metal-Rear Cover8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23338M
|
23338M
23338-J5500 Bearing-Gear Case8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-J5500 |
US $33.41 |
||
|
23338M
|
23338M
23338-M4900 Metal-Rear Cover8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23338-M4900 |
from US $52.13 |
||
|
23343
|
23343
23343-31W00 Switch Assy-Magnetic8503--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23343-31W00 |
US $168.48 |
||
|
23343
|
23343
23343-83W00 Switch Assy-Magnetic8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23343-83W00 |
US $247.68 |
||
|
23343
|
23343
23343-G7002 Switch Assy-Magnetic8202--01 ~ 8503--01; SD25; ﾋﾀﾁ |
23343-G7002 |
US $129.02 |
||
|
23343
|
23343
23343-T5601 Switch Assy-Magnetic8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-T5601 |
US $129.02 |
||
|
23343
|
23343
23468-T9002 Bolt8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23468-T9002 |
US $7.20 |
||
|
23343
|
23343
23301-10G00 Cover-Switch8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23301-10G00 |
US $70.99 |
||
|
23343
|
23343
23301-31W00 Cover-Switch8506--01 ~ 8509--01; SD23+SD25; ﾋﾀﾁ |
23301-31W00 |
US $106.85 |
||
|
23343
|
23343
23341-G7000 Bearing8202--01 ~ 8506--01; SD23+SD25; ﾋﾀﾁ |
23341-G7000 |
US $86.11 |
||
|
23343A
|
23343A
23468-T9002 Bolt8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23468-T9002 |
US $7.20 |
||
|
23343E
|
23343E
23301-10G00 Cover-Switch8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23301-10G00 |
US $70.99 |
||
|
23343E
|
23343E
23301-31W00 Cover-Switch8506--01 ~ 8509--01; SD23+SD25; ﾋﾀﾁ |
23301-31W00 |
US $106.85 |
||
|
23343E
|
23343E
23341-G7000 Bearing8202--01 ~ 8506--01; SD23+SD25; ﾋﾀﾁ |
23341-G7000 |
US $86.11 |
||
|
23378
|
23378
23330-C8600 Holder Assy-Brush8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23330-C8600 |
US $28.37 |
||
|
23378
|
23378
23330-G7000 Holder Assy-Brush8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23330-G7000 |
US $81.94 |
||
|
23378
|
23378
23330-Z9001
Holder Assy-Brush
8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23330-Z9001 |
— | ||
|
23378
|
23378
23378-10G00 Holder Assy-Brush8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23378-10G00 |
from US $32.56 |
||
|
23379
|
23379
23331-Z9002 Brush-Minus8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23331-Z9002 |
US $26.06 |
||
|
23379
|
23379
23331-Z9003 Brush-Minus8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23331-Z9003 |
US $26.06 |
||
|
23379
|
23379
23379-10G00 Brush-Minus8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23379-10G00 |
US $9.07 |
||
|
23379
|
23379
23379-G7000 Brush-Minus8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23379-G7000 |
US $14.54 |
||
|
23380
|
23380
23331-Z9002 Brush-Minus8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23331-Z9002 |
US $26.06 |
||
|
23380
|
23380
23380-10G00 Brush-Minus8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23380-10G00 |
US $9.07 |
||
|
23380
|
23380
23380-G7000 Brush-Plus8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23380-G7000 |
US $14.54 |
||
|
23383
|
23383
23383-31W00 Plate-Center8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23383-31W00 |
US $24.62 |
||
|
23383
|
23383
23383-V0600 Plate-Center8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23383-V0600 |
US $27.94 |
||
|
23441
|
23441
23441-37501 Metal-Center Bearing8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23441-37501 |
US $13.25 |
||
|
23465
|
23465
23369-61503 Stopper Set-Pinion8508--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23369-61503 |
US $7.92 |
||
|
23465
|
23465
23369-Z9001 Stopper Set-Pinion8202--01 ~ 8508--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23369-Z9001 |
US $12.96 |
||
|
23465
|
23465
23462-76201 Stopper Set-Pinion8202--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23462-76201 |
US $5.76 |
||
|
23465
|
23465
23465-M4900 Stopper Set-Pinion8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23465-M4900 |
US $9.50 |
||
|
23470
|
23470
23324-10G00 Cover Set-Dust8509--01 ~ 8611--01; SD23+SD25; ﾋﾀﾁ |
23324-10G00 |
US $11.09 |
||
|
23470
|
23470
23324-T7200 Cover Set-Dust8202--01 ~ 8611--01; *SD23 *SD25; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23324-T7200 |
US $5.18 |
||
|
23470
|
23470
23446-76200 Cover Set-Dust8202--01 ~ 8503--01; SD25; ﾋﾀﾁ |
23446-76200 |
US $6.91 |
||
|
23470
|
23470
23470-31W00 Cover Set-Dust8503--01 ~ 8508--01; SD25; ﾋﾀﾁ |
23470-31W00 |
US $9.94 |
||
