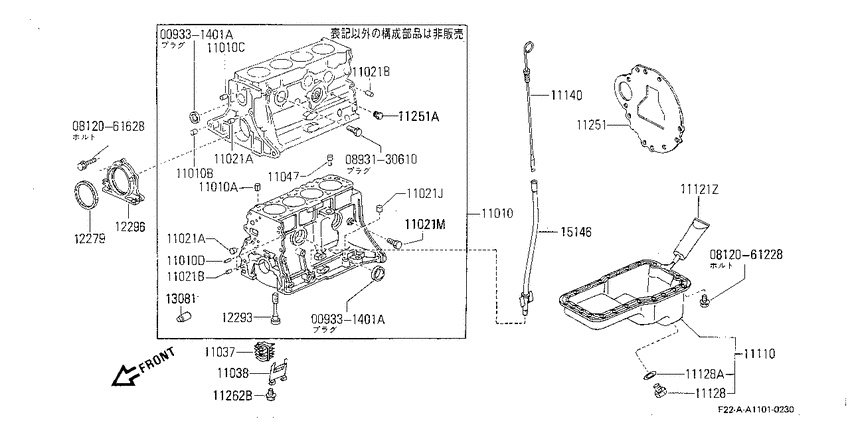

Cylinder - block & ｵｲﾙﾊﾟﾝ (1990-07-01 ~ ; NA16S +NA20S) Diagram Nissan ATLAS/CONDOR
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- body
- TLF
- body type
- SB/15T
- transmission/shift type
- F5
- drive/tire
- 2WD/WT
- chassis
- A
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0893130610
|
0893130610
08931-30610
ﾌﾟﾗｸﾞ,ｽﾚﾂﾄﾞ
|
08931-30610 |
— | ||
|
11010
|
11010
11000-36N00 Block Assy-Cylinder9007--01 ~ ; NA20S |
11000-36N00 |
US $1,373.52 |
||
|
11010
|
11010
1105373400 Dowel-Block To Head9007--01 ~ ; NA16S +NA20S |
1105373400 |
US $3.06 |
||
|
11010
|
11010
1102221000 Dowel-Block To Transmission9007--01 ~ ; NA16S +NA20S |
1102221000 |
from US $0.59 |
||
|
11010
|
11010
30412H1001 Dowel-Block9007--01 ~ ; NA16S +NA20S |
30412H1001 |
from US $0.48 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump9007--01 ~ ; NA16S +NA20S |
1104673402 |
from US $0.48 |
||
|
11010A
|
11010A
1105373400 Dowel-Block To Head9007--01 ~ ; NA16S +NA20S |
1105373400 |
US $3.06 |
||
|
11010B
|
11010B
1102221000 Dowel-Block To Transmission9007--01 ~ ; NA16S +NA20S |
1102221000 |
from US $0.59 |
||
|
11010C
|
11010C
30412H1001 Dowel-Block9007--01 ~ ; NA16S +NA20S |
30412H1001 |
from US $0.48 |
||
|
11010D
|
11010D
1104673402 Dowel-Water Pump9007--01 ~ ; NA16S +NA20S |
1104673402 |
from US $0.48 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper9007--01 ~ ; NA16S +NA20S |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper9007--01 ~ ; NA16S +NA20S |
11024K0100 |
from US $0.52 |
||
|
11021B
|
11021B
01647-00011 Plug-Taper9007--01 ~ ; NA16S +NA20S |
01647-00011 |
US $1.73 |
||
|
11021B
|
11021B
01647-00011 Plug-Taper9007--01 ~ ; NA16S +NA20S |
01647-00011 |
US $1.73 |
||
|
11021J
|
11021J
11022-U6700 Plug-Taper, Level Gauge9007--01 ~ ; NA16S +NA20S |
11022-U6700 |
US $3.06 |
||
|
11021M
|
11021M
1102485G01 Plug-Taper9007--01 ~ ; NA16S +NA20S |
1102485G01 |
US $1.73 |
||
| replacement | |||||
|
11021M
|
11021M
1102485G1A Plug-Taper9007--01 ~ ; NA16S +NA20S |
1102485G1A |
from US $0.59 |
||
|
11037
|
11037
11037-21001 Net-Steel, Crank Case9007--01 ~ ; NA16S +NA20S |
11037-21001 |
US $6.77 |
||
|
11038
|
11038
11038-06W00 Plate-Baffle, Crank Case9007--01 ~ ; NA20S |
11038-06W00 |
US $5.04 |
||
|
11047
|
11047
11047-W0500 Jet-Oil, Cylinder Head9007--01 ~ ; NA16S +NA20S |
11047-W0500 |
US $0.86 |
||
| replacement | |||||
|
11047
|
11047
11047-W050A Jet-Oil, Cylinder Head9007--01 ~ ; NA16S +NA20S |
11047-W050A |
US $0.86 |
||
|
11110
|
11110
11110-T6001 Pan Assy-Oil9007--01 ~ ; NA16S +NA20S |
11110-T6001 |
US $317.18 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid9007--01 ~ ; NA16S +NA20S; [K504] |
KP510-00150 |
US $29.51 |
||
|
11128
|
11128
11128-01M00 Plug-Drain9007--01 ~ ; NA16S +NA20S |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain9007--01 ~ ; NA16S +NA20S |
1112801M0B |
from US $2.50 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug9007--01 ~ ; NA16S +NA20S |
1102601M02 |
from US $0.91 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug9007--01 ~ ; NA16S +NA20S |
1102601M02 |
from US $0.91 |
||
|
11140
|
11140
11140-27T00 Gauge-Oil Level9007--01 ~ 9103--01; NA16S +NA20S |
11140-27T00 |
US $20.02 |
||
|
11140
|
11140
11140-2T000 Gauge-Oil Level9103--01 ~ ; NA16S +NA20S |
11140-2T000 |
US $15.12 |
||
|
11251
|
11251
30411-W0402 Plate-Engine, Rear9007--01 ~ ; NA16S +NA20S |
30411-W0402 |
US $41.33 |
||
| replacement | |||||
|
11251
|
11251
30411-W042A
Plate-Engine, Rear
9007--01 ~ ; NA16S +NA20S |
30411-W042A |
— | ||
|
11251
|
11251
11024-85G00 Plug-Taper9007--01 ~ ; NA16S +NA20S |
11024-85G00 |
US $1.73 |
||
|
11251A
|
11251A
11024-85G00 Plug-Taper9007--01 ~ ; NA16S +NA20S |
11024-85G00 |
US $1.73 |
||
|
11262B
|
11262B
11035-67G00 Bolt9007--01 ~ ; NA16S+NA20S |
11035-67G00 |
US $2.45 |
||
|
12279
|
12279
12279-85G00 Seal-Oil, Crankshaft Rear9007--01 ~ ; NA16S +NA20S |
12279-85G00 |
US $21.74 |
||
| replacement | |||||
|
12279
|
12279
12279-5L300 Seal-Oil, Crankshaft Rear9007--01 ~ ; NA16S +NA20S |
12279-5L300 |
US $30.30 |
||
|
12293
|
12293
12293-18001
Bolt-Main Bearing Cap
9007--01 ~ ; NA16S +NA20S |
12293-18001 |
— | ||
| replacement | |||||
|
12293
|
12293
1229301M00 Bolt-Main Bearing Cap9007--01 ~ ; NA16S +NA20S |
1229301M00 |
from US $3 |
||
|
12296
|
12296
12297-85G00 Retainer-Oil Seal, Rear9007--01 ~ ; NA16S +NA20S |
12297-85G00 |
US $40.61 |
||
|
13081
|
13081
13081-21000 Jet-Oil, Timing Chain9007--01 ~ ; NA16S +NA20S |
13081-21000 |
US $2.45 |
||
|
15146
|
15146
11150-27T00
Guide-Oil Level Gauge
9007--01 ~ 9103--01; NA20S |
11150-27T00 |
— | ||
|
15146
|
15146
11150-27T01 Guide-Oil Level Gauge9103--01 ~ ; NA20S |
11150-27T01 |
US $17.86 |
||
