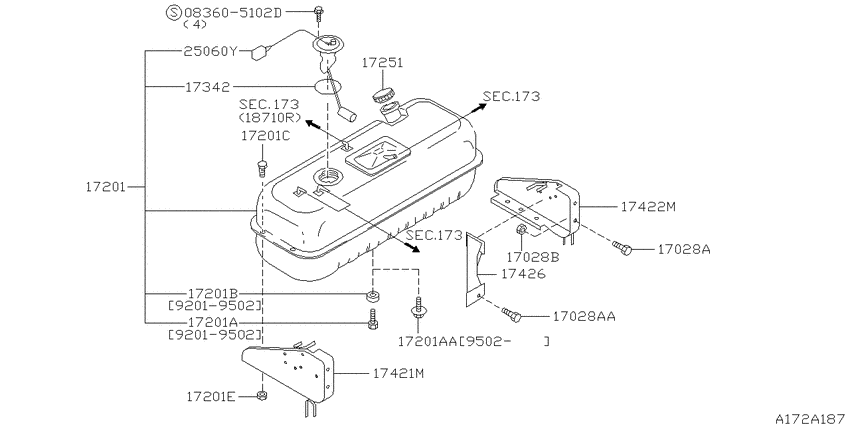

Fuel tank (1992-01-01 ~ 1995-06-01; 50リッター タンク; NA16S +NA20S) Diagram Nissan ATLAS/CONDOR
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- NA20S
- drive
- 2WD
- grade
- DX
- body
- WC
- body type
- L
- tire & max load
- ST.1T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083605102D
|
083605102D
08360-5102D ｽｸﾘﾕ-,ﾏｼﾝ |
08360-5102D |
US $1.93 |
||
|
17028A
|
17028A
01125-01534 SCREW9201--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
01125-01534 |
US $2.45 |
||
|
17028A
|
17028A
01125-01564 SCREW9201--01 ~ 9308--01; WC.2WD.SB.NA20S +NA16S |
01125-01564 |
US $2.45 |
||
|
17028AA
|
17028AA
01125-01564 SCREW9201--01 ~ 9308--01; WC.2WD.SB.NA20S +NA16S |
01125-01564 |
US $2.45 |
||
|
17028B
|
17028B
0122501014 NUT9201--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
0122501014 |
US $4.18 |
||
|
17201
|
17201
17201-2T001 Tank Assy-Fuel9201--01 ~ 9208--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
17201-2T001 |
US $606.05 |
||
|
17201
|
17201
17201-2T002 Tank Assy-Fuel9208--01 ~ 9502--01; WC.NA16S +WC.NA20S |
17201-2T002 |
US $606.05 |
||
|
17201
|
17201
17201-2T003 Tank Assy-Fuel9502--01 ~ 9506--01; WC.NA16S +WC.NA20S |
17201-2T003 |
US $606.05 |
||
|
17201
|
17201
01125-00062 Plug-Drain9201--01 ~ 9304--01; NA16S +NA20S |
01125-00062 |
US $2.45 |
||
|
17201
|
17201
17234-79900 Plug-Drain9502--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
17234-79900 |
US $2.45 |
||
|
17201
|
17201
17232-79900 Packing-Drain Plug9201--01 ~ 9308--01; NA16S +NA20S |
17232-79900 |
US $2.68 |
||
|
17201
|
17201
01125-01564 SCREW9201--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
01125-01564 |
US $2.45 |
||
|
17201
|
17201
0122500331 NUT-WIPER ARM9201--01 ~ 9308--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
0122500331 |
US $1.93 |
||
|
17201A
|
17201A
01125-00062 Plug-Drain9201--01 ~ 9304--01; NA16S +NA20S |
01125-00062 |
US $2.45 |
||
|
17201A
|
17201A
17234-79900 Plug-Drain9502--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
17234-79900 |
US $2.45 |
||
|
17201AA
|
17201AA
17234-79900 Plug-Drain9502--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
17234-79900 |
US $2.45 |
||
|
17201B
|
17201B
17232-79900 Packing-Drain Plug9201--01 ~ 9308--01; NA16S +NA20S |
17232-79900 |
US $2.68 |
||
|
17201C
|
17201C
01125-01564 SCREW9201--01 ~ 9506--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
01125-01564 |
US $2.45 |
||
|
17201E
|
17201E
0122500331 NUT-WIPER ARM9201--01 ~ 9308--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
0122500331 |
US $1.93 |
||
|
17251
|
17251
172510T000 Cap Assy-Filler9201--01 ~ 9304--01; NA16S +NA20S |
172510T000 |
US $82.66 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17342
|
17342
1734218000 Seal-O Ring, Fuel Gauge9201--01 ~ 9506--01; NA16S +NA20S |
1734218000 |
US $17.19 |
||
|
17421M
|
17421M
17421-2T002 Bracket Assy-Fuel Tank Supprot9201--01 ~ 9308--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S; ﾌﾛﾝﾄﾖｳ |
17421-2T002 |
US $124.70 |
||
|
17422M
|
17422M
17422-2T002 Bracket Assy-Fuel Tank Support9201--01 ~ 9308--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S; ﾘﾔﾖｳ |
17422-2T002 |
US $124.70 |
||
|
17426
|
17426
17426-2T000 Bracket Assy-Fuel Tank Support9201--01 ~ 9506--01; WC.NA20S +NA16S |
17426-2T000 |
US $54.43 |
||
|
25060Y
|
25060Y
25060-2T000 Sender Unit-Fuel Gauge9201--01 ~ 9208--01; 32WD.SB.LFW.NA20S +T.2WD.SB.A.NA20S +WC.NA20S +NA16S |
25060-2T000 |
US $208.80 |
||
|
25060Y
|
25060Y
250602T100 Sender Unit-Fuel Gauge9208--01 ~ 9502--01; WC.NA16S +WC.NA20S |
250602T100 |
US $208.80 |
||
|
25060Y
|
25060Y
25060-2T110 Sender Unit-Fuel Gauge9502--01 ~ 9506--01; WC.NA16S +WC.NA20S |
25060-2T110 |
US $208.80 |
||
