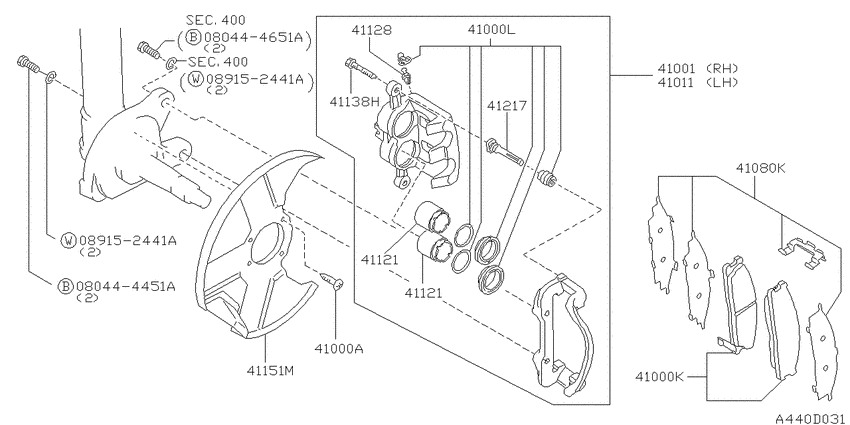

Front brake (1992-10-01 ~ 1995-06-01; 4WD.TD23) Diagram Nissan ATLAS/CONDOR
- Year
- 1992 - 1995
- Sales region
- Japan
- Engine
- TD23
- drive
- 4WD
- grade
- DX
- body
- T
- body type
- LFW
- tire & max load
- ST.1T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080444451A
|
080444451A
08044-4451A
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08044-4451A |
— | ||
|
080444651A
|
080444651A
08044-4651A
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08044-4651A |
— | ||
|
089152441A
|
089152441A
089152441A WASHERSPRING |
089152441A |
from US $0.57 |
||
|
089152441A
|
089152441A
089152441A WASHERSPRING |
089152441A |
from US $0.57 |
||
|
400
|
Front axle
400
|
||||
|
400
|
Front axle
400
|
||||
|
41000A
|
41000A
0141100131 BOLT9210--01 ~ 9308--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
0141100131 |
US $1.73 |
||
|
41000K
|
41000K
41060-27N91 Pad Kit-Disc Brake9210--01 ~ 9308--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
41060-27N91 |
US $136.80 |
||
|
41000L
|
41000L
AY600NS012 Seal Kit-Disc Brake9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
AY600NS012 |
from US $49.54 |
||
|
41001
|
41001
4100120N03 Caliper Assy-Front Rh, W/o Pads Or Shims9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
4100120N03 |
US $390.14 |
||
|
41011
|
41011
4101120N03 Caliper Assy-Front Lh, W/o Pads Or Shims9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
4101120N03 |
from US $230.18 |
||
|
41080K
|
41080K
41080-09G27 Hardware Kit-Front Disc Brake Pad9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
41080-09G27 |
US $88.70 |
||
|
41121
|
41121
41121-09G02 Piston-Cylinder9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
41121-09G02 |
US $56.45 |
||
|
41121
|
41121
41121-09G02 Piston-Cylinder9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
41121-09G02 |
US $56.45 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
44141AW70A |
from US $3.15 |
||
|
41151M
|
41151M
41151-20N01 Plate-Baffle, Rh9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23; ﾐｷﾞ ﾖｳ |
41151-20N01 |
US $32.98 |
||
|
41151M
|
41151M
41161-20N01 Plate-Baffle, Lh9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23; ﾋﾀﾞﾘ ﾖｳ |
41161-20N01 |
US $32.98 |
||
|
41217
|
41217
44140N9500 Pin-Lock9210--01 ~ 9506--01; -(4WD.SB.L+4WD.SB.LF+4WD.SB.LFW+4WD.SB.A).TD23 |
44140N9500 |
from US $8.45 |
||
