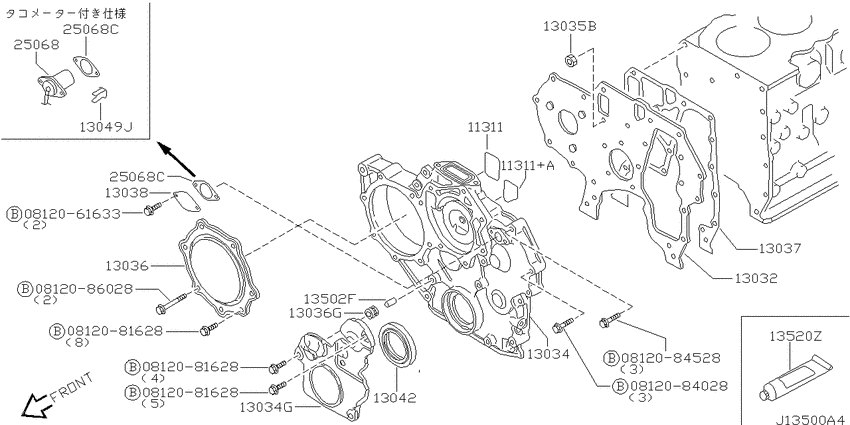

Front cover & fitting (2002-08-01 ~ 2004-08-01; フロントカバー; TD27) Diagram Nissan ATLAS/CONDOR
- Year
- 1999 - 2004
- Sales region
- Japan
- Engine
- TD27
- drive
- 2WD
- grade
- DX
- body
- T
- body type
- LF
- tire & max load
- SWT.13T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061633
|
0812061633
08120-61633
BOLT-HEX
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F BOLTHEX |
08120-6161F |
from US $2.36 |
||
|
0812081628
|
0812081628
08120-81628
BOLT-ADJUST
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E BOLT-HEX |
081208161E |
from US $0.57 |
||
|
0812081628
|
0812081628
08120-81628
BOLT-ADJUST
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E BOLT-HEX |
081208161E |
from US $0.57 |
||
|
0812081628
|
0812081628
08120-81628
BOLT-ADJUST
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E BOLT-HEX |
081208161E |
from US $0.57 |
||
|
0812084028
|
0812084028
0812084028
BOLTHEX
|
0812084028 |
— | ||
|
0812084528
|
0812084528
08120-84528 BOLT |
08120-84528 |
US $1.73 |
||
|
0812086028
|
0812086028
0812086028
BOLTHEX
|
0812086028 |
— | ||
|
11311
|
11311
1446543G20 Gasket9906--01 ~ 0208--01; TD27 |
1446543G20 |
from US $3.42 |
||
|
11311
|
11311
1446543G21 Seal-Oil, Front Cover9906--01 ~ 0208--01; TD27 |
1446543G21 |
from US $3.03 |
||
|
11311+A
|
11311+A
1446543G21 Seal-Oil, Front Cover9906--01 ~ 0208--01; TD27 |
1446543G21 |
from US $3.03 |
||
|
13032
|
13032
13031-1W400 Plate-Front9906--01 ~ 0208--01; TD27 |
13031-1W400 |
US $149.69 |
||
|
13032
|
13032
13031-5T100 Plate-Front0208--01 ~ 0408--01; TD27 |
13031-5T100 |
US $148.32 |
||
|
13034
|
13034
13034-5T101 Case-Front Cover9906--01 ~ 0106--01; TD27 |
13034-5T101 |
US $207.36 |
||
|
13034
|
13034
13034-5T102 Case-Front Cover0106--01 ~ 0208--01; TD27 |
13034-5T102 |
US $366.74 |
||
|
13034
|
13034
13036-5T100 Cover-Case9906--01 ~ 0208--01; TD27 |
13036-5T100 |
US $113.76 |
||
|
13034G
|
13034G
13036-5T100 Cover-Case9906--01 ~ 0208--01; TD27 |
13036-5T100 |
US $113.76 |
||
|
13035B
|
13035B
16132-43G00 Nut9906--01 ~ 0208--01; TD27 |
16132-43G00 |
US $6.48 |
||
|
13036
|
13036
13560-7T400 Cover-Front9906--01 ~ 0208--01; TD27 |
13560-7T400 |
US $71.52 |
||
|
13036
|
13036
13042-T7200 Grommet-Front Cover9906--01 ~ 0208--01; TD27 |
13042-T7200 |
US $4.46 |
||
|
13036G
|
13036G
13042-T7200 Grommet-Front Cover9906--01 ~ 0208--01; TD27 |
13042-T7200 |
US $4.46 |
||
|
13037
|
13037
1303706J01 Gasket-Plate9906--01 ~ 0208--01; TD27 |
1303706J01 |
from US $6.62 |
||
|
13038
|
13038
13040-09W00 Cover-Front9906--01 ~ 0208--01; TD27 |
13040-09W00 |
US $2.45 |
||
| replacement | |||||
|
13038
|
13038
13040-09W0A
Cover-Front
9906--01 ~ 0208--01; TD27 |
13040-09W0A |
— | ||
|
13042
|
13042
13510-43G00
Seal-Oil, Crankshaft Front
9906--01 ~ 0002--01; *TD27 |
13510-43G00 |
— | ||
| replacement | |||||
|
13042
|
13042
1351043G01 Seal-Oil, Crankshaft Front9906--01 ~ 0002--01; *TD27 |
1351043G01 |
from US $24.10 |
||
|
13042
|
13042
1351043G01 Seal-Oil, Crankshaft Front0002--01 ~ 0208--01; *TD27 |
1351043G01 |
from US $24.10 |
||
|
13049J
|
13049J
24211-89944
Clip-Wiring Harness
9906--01 ~ 0208--01; [*SB.(ST.13T+SWT.13T).TD27.MT.F5 +*SB.HST.13T.TD27 +*LB.TD27 +*L.TD27 +*ST.1T.TD27 +*TD27.AT |
24211-89944 |
— | ||
| replacement | |||||
|
13049J
|
13049J
242108994A Clip9906--01 ~ 0208--01; [*SB.(ST.13T+SWT.13T).TD27.MT.F5 +*SB.HST.13T.TD27 +*LB.TD27 +*L.TD27 +*ST.1T.TD27 +*TD27.AT |
242108994A |
US $4.71 |
||
|
13502F
|
13502F
13035-T7200 Spacer9906--01 ~ 0208--01; *TD27 |
13035-T7200 |
US $1.73 |
||
|
13520Z
|
13520Z
KA76015000
Gasket-Liquid
9906--01 ~ 0208--01; TD27; [K504] |
KA76015000 |
— | ||
|
25068
|
25068
23731-6T300 Sensor Unit9906--01 ~ 0103--01; [*SB.(ST.13T+SWT.13T).TD27.MT.F5 +*SB.HST.13T.TD27 +*LB.TD27 +*L.TD27 +*ST.1T.TD27 +*TD27.AT |
23731-6T300 |
US $163.56 |
||
|
25068
|
25068
23731-6T301 Sensor Unit0103--01 ~ 0208--01; H*SB.(ST.13T+SWT.13T).TD27.MT.F5 +*SB.HST.13T.TD27 +*LB.TD27 +*ST.1T.TD27 |
23731-6T301 |
US $141.39 |
||
|
25068
|
25068
1303934N00 Gasket-Sensor9906--01 ~ 0208--01; TD27 |
1303934N00 |
from US $2.44 |
||
|
25068C
|
25068C
1303934N00 Gasket-Sensor9906--01 ~ 0208--01; TD27 |
1303934N00 |
from US $2.44 |
||
|
25068C
|
25068C
1303934N00 Gasket-Sensor9906--01 ~ 0208--01; TD27 |
1303934N00 |
from US $2.44 |
||
