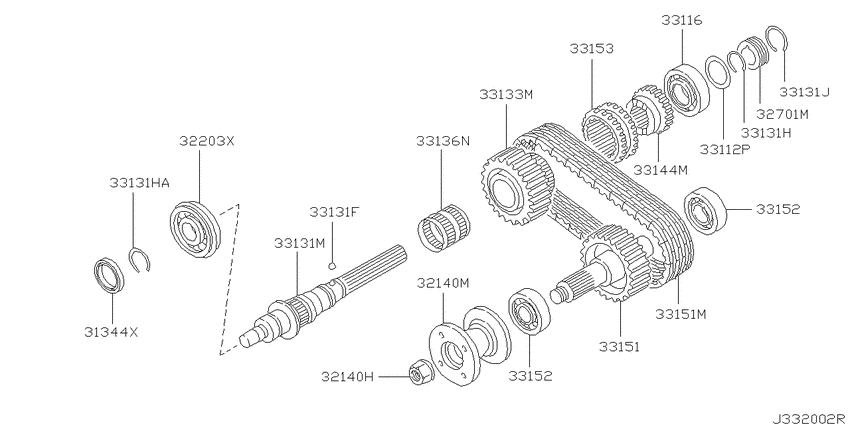

Transfer gear (2002-08-01 ~ 2004-08-01; 4WD.TD27) Diagram Nissan ATLAS/CONDOR
- Year
- 1999 - 2004
- Sales region
- Japan
- Engine
- TD27
- drive
- 4WD
- grade
- DX
- body
- WC
- body type
- LF
- tire & max load
- ST.075T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31344X
|
31344X
33111-20N00 Seal-Oil, Transfer Cover0208--01 ~ 0408--01; 4WD.TD27 |
33111-20N00 |
US $8.93 |
||
|
32140H
|
32140H
38216-31G00
Nut
9906--01 ~ 0208--01; 4WD.TD27 |
38216-31G00 |
— | ||
| replacement | |||||
|
32140H
|
32140H
3821631G0A Nut9906--01 ~ 0208--01; 4WD.TD27 |
3821631G0A |
from US $4.48 |
||
|
32140M
|
32140M
33210-33G00 Flange Assy-Companion9906--01 ~ 0208--01; 4WD.TD27 |
33210-33G00 |
US $56.16 |
||
| replacement | |||||
|
32140M
|
32140M
33210-33G0A Flange Assy-Companion9906--01 ~ 0208--01; 4WD.TD27 |
33210-33G0A |
US $78.05 |
||
|
32203X
|
32203X
322035C500 Bearing-Main, Transfer Front0208--01 ~ 0408--01; 4WD.TD27 |
322035C500 |
US $60.48 |
||
|
32701M
|
32701M
32701-33G02 Gear-Drive, Speedometer9906--01 ~ 0208--01; 4WD.TD27 |
32701-33G02 |
from US $29.94 |
||
|
33112P
|
33112P
3314833G00 Spacer-Main Shaft9906--01 ~ 0208--01; 4WD.TD27 |
3314833G00 |
US $4.03 |
||
|
33116
|
33116
33139-33G01 Bearing-Main, Transfer Rear9906--01 ~ 0208--01; 4WD.TD27 +4WD.QD32 |
33139-33G01 |
US $28.45 |
||
|
33131F
|
33131F
32720-36900 Ball-Steel9906--01 ~ 0208--01; 4WD.TD27 |
32720-36900 |
US $0.82 |
||
|
33131H
|
33131H
33138-73P21 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P21 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P22 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P22 |
US $4.03 |
||
|
33131H
|
33131H
3313873P23 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=2.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3313873P23 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P20 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P20 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P21 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P21 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P22 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P22 |
US $4.03 |
||
|
33131H
|
33131H
3313873P23 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=2.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3313873P23 |
US $4.03 |
||
|
33131H
|
33131H
33138-73P24 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=2.16 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P24 |
US $4.18 |
||
|
33131HA
|
33131HA
33138-73P20 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P20 |
US $4.03 |
||
|
33131HA
|
33131HA
33138-73P21 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P21 |
US $4.03 |
||
|
33131HA
|
33131HA
33138-73P22 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=1.98 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P22 |
US $4.03 |
||
|
33131HA
|
33131HA
3313873P23 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=2.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3313873P23 |
US $4.03 |
||
|
33131HA
|
33131HA
33138-73P24 Ring-Snap, Main Shaft9906--01 ~ 0208--01; 4WD.TD27; T=2.16 ｾﾝﾀｸｼﾃ ｼﾖｳ |
33138-73P24 |
US $4.18 |
||
|
33131J
|
33131J
33158-33G01 Ring-Retaining9906--01 ~ 0208--01; 4WD.TD27 |
33158-33G01 |
US $4.03 |
||
|
33131M
|
33131M
33131-20N03 Shaft-Main, Transfer9906--01 ~ 0208--01; 4WD.TD27 |
33131-20N03 |
US $349.75 |
||
|
33133M
|
33133M
33133-20N00 Sprocket-Front Drive9906--01 ~ 0208--01; 4WD.TD27; ﾐｿﾞﾅｼ MORSE ﾖｳ |
33133-20N00 |
US $169.92 |
||
|
33133M
|
33133M
33133-20N10 Sprocket-Front Drive9906--01 ~ 0208--01; 4WD.TD27; ﾐｿﾞｱﾘ JPAﾖｳ |
33133-20N10 |
US $169.92 |
||
|
33136N
|
33136N
33136-30C00 Bearing-Needle9906--01 ~ 0208--01; 4WD.TD27 |
33136-30C00 |
US $91.58 |
||
|
33144M
|
33144M
33144-30C00 Gear-Clutch, Front Drive9906--01 ~ 0208--01; 4WD.TD27 |
33144-30C00 |
US $52.85 |
||
|
33151
|
33151
33151-20N00 Shaft-Drive, Front9906--01 ~ 0208--01; 4WD.TD27; ﾐｿﾞﾅｼ MORSE ﾖｳ |
33151-20N00 |
US $146.88 |
||
|
33151
|
33151
33151-20N10 Shaft-Drive, Front9906--01 ~ 0208--01; 4WD.TD27; ﾐｿﾞｱﾘ JPAﾖｳ |
33151-20N10 |
US $146.88 |
||
|
33151
|
33151
33152-20N10 Chain-Front Drive, Transfer9906--01 ~ 0208--01; 4WD.TD27; ｺｸｲﾝ JPA |
33152-20N10 |
US $380.90 |
||
|
33151
|
33151
33152-30C00 Chain-Front Drive, Transfer9906--01 ~ 0208--01; 4WD.TD27; ｺｸｲﾝ MORSE |
33152-30C00 |
from US $364.38 |
||
|
33151M
|
33151M
33152-20N10 Chain-Front Drive, Transfer9906--01 ~ 0208--01; 4WD.TD27; ｺｸｲﾝ JPA |
33152-20N10 |
US $380.90 |
||
|
33151M
|
33151M
33152-30C00 Chain-Front Drive, Transfer9906--01 ~ 0208--01; 4WD.TD27; ｺｸｲﾝ MORSE |
33152-30C00 |
from US $364.38 |
||
|
33152
|
33152
3227336900 Bearing-Main Shaft9906--01 ~ 0208--01; 4WD.TD27 +4WD.QD32 |
3227336900 |
from US $13.01 |
||
|
33152
|
33152
3227336900 Bearing-Main Shaft9906--01 ~ 0208--01; 4WD.TD27 +4WD.QD32 |
3227336900 |
from US $13.01 |
||
|
33153
|
33153
33153-33G01 Sleeve-Coupling9906--01 ~ 0208--01; 4WD.TD27 |
33153-33G01 |
US $54.86 |
||
