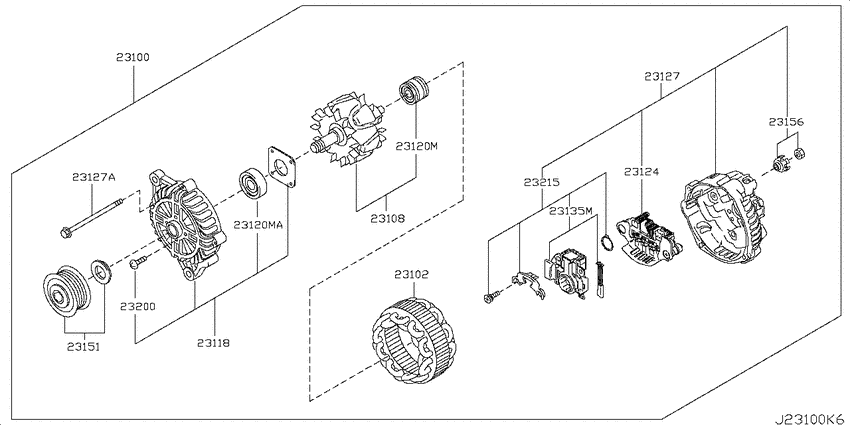

Alternator (2007-06-01 ~ ; オルターネーター本体; QR20DE) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD.STD
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-MA00A Alternator Assy0706--01 ~ ; QR20DE |
23100-MA00A |
from US $733.25 |
||
|
23100
|
23100
0122100381 NUT0706--01 ~ ; QR20DE |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-MA00A Stator Assy0706--01 ~ ; QR20DE |
23102-MA00A |
US $474.36 |
||
|
23108
|
23108
23108-MA00A Rotor Assy0706--01 ~ ; QR20DE |
23108-MA00A |
from US $346.92 |
||
|
23118
|
23118
23118-MA00A Cover Assy-Front0706--01 ~ ; QR20DE |
23118-MA00A |
US $111.17 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
0706--01 ~ ; QR20DE |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL0706--01 ~ ; QR20DE |
2312051E10 |
from US $34.67 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball0706--01 ~ ; QR20DE |
23120-22J20 |
from US $22.31 |
||
|
23120MA
|
23120MA
23120-22J20 Bearing-Ball0706--01 ~ ; QR20DE |
23120-22J20 |
from US $22.31 |
||
|
23124
|
23124
23124-MA00A Rectifier Assy0706--01 ~ ; QR20DE |
23124-MA00A |
from US $168.48 |
||
|
23127
|
23127
23127-MA00A Cover Assy-Rear0706--01 ~ ; QR20DE |
23127-MA00A |
US $628.70 |
||
|
23127
|
23127
23131-20P10 Bolt-Through0706--01 ~ ; QR20DE |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through0706--01 ~ ; QR20DE |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
231420B000 Brush-F0706--01 ~ ; QR20DE; 130 AMP |
231420B000 |
from US $13.54 |
||
|
23151
|
23151
23151-MA00A Pulley-Alternator0706--01 ~ ; QR20DE |
23151-MA00A |
from US $204.48 |
||
|
23156
|
23156
23156-1E810 Terminal Assy-B0706--01 ~ ; QR20DE |
23156-1E810 |
US $10.94 |
||
|
23200
|
23200
23115-20P10 Screw Set0706--01 ~ ; QR20DE |
23115-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-EB310 Regulator Assy-Ic0706--01 ~ ; QR20DE |
23215-EB310 |
US $273.60 |
||
