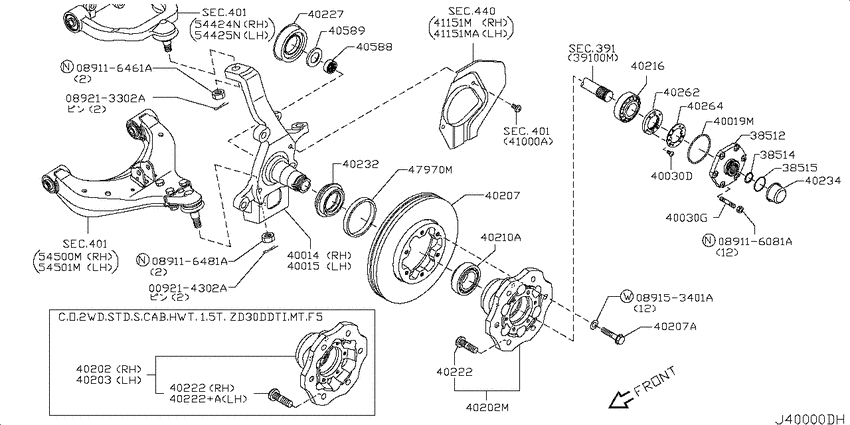

Front axle (2007-06-01 ~ ; シングルタイヤ; (4WD.STD+4WD.SHT).ZD30DDTI) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD.SHT
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009214302A
|
009214302A
009214302A PINCOTTER SPLI |
009214302A |
from US $0.48 |
||
|
089116081A
|
089116081A
089116081A
NUT
|
089116081A |
— | ||
|
089116461A
|
089116461A
08911-6461A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6461A |
— | ||
|
089116481A
|
089116481A
089116481A NUTHEX |
089116481A |
US $1.11 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
089213302A
|
089213302A
08921-3302A
PINCOTTER SPLI
|
08921-3302A |
— | ||
|
38512
|
38512
38512-MA010 ﾌﾗﾝｼﾞ,ﾄﾞﾗｲﾌﾞ ﾌﾛﾝﾄ ﾎｲ-ﾙ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38512-MA010 |
US $101.38 |
||
|
38514
|
38514
39253-31G10 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=1.1 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G10 |
US $4.85 |
||
|
38514
|
38514
39253-31G11 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=1.3 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G11 |
US $4.18 |
||
|
38514
|
38514
39253-31G12 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=1.5 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G12 |
US $3.95 |
||
|
38514
|
38514
39253-31G13 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=1.7 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G13 |
US $4.18 |
||
|
38514
|
38514
3925331G14 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=1.9 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3925331G14 |
US $4.18 |
||
|
38514
|
38514
39253-31G15 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.1 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G15 |
US $4.18 |
||
|
38514
|
38514
39253-31G16 Ring-Snap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.3 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39253-31G16 |
from US $2.22 |
||
|
38515
|
38515
3851550W00 Seal-O Ring, Hub Cap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3851550W00 |
US $2.68 |
||
|
391
|
Front drive shaft (ff)
391
|
||||
|
391
|
Front drive shaft (ff)
391
|
||||
|
40014
|
40014
40014-MA010 ｽﾋﾟﾝﾄﾞﾙ,ﾅﾂｸﾙ rh0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40014-MA010 |
US $580.56 |
||
|
40015
|
40015
40015-MA010 ｽﾋﾟﾝﾄﾞﾙ,ﾅﾂｸﾙ lh0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40015-MA010 |
US $580.56 |
||
|
40019M
|
40019M
40290-MA011 ｼ-ﾙ,o ﾘﾝｸﾞ ﾊﾌﾞ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40290-MA011 |
US $4.18 |
||
|
40030D
|
40030D
0141400051 SCREW0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
0141400051 |
from US $0.61 |
||
|
40030G
|
40030G
0115100271 STUD0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
0115100271 |
from US $0.65 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
40202
|
40202
40202-MA010
ﾊﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾛ-ﾄﾞ ﾎｲ-ﾙ ﾌﾛﾝﾄ
0706--01 ~ ; H4WD.STD.S.CAB.HST.15T.ZD30DDTI +4WD.STD.D.CAB.ZD30DDTI +4WD.SHT.ZD30DDTI |
40202-MA010 |
— | ||
|
40202M
|
40202M
40202-MA010
ﾊﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾛ-ﾄﾞ ﾎｲ-ﾙ ﾌﾛﾝﾄ
0706--01 ~ ; H4WD.STD.S.CAB.HST.15T.ZD30DDTI +4WD.STD.D.CAB.ZD30DDTI +4WD.SHT.ZD30DDTI |
40202-MA010 |
— | ||
|
40207
|
40207
40206VW000 Rotor-Disc Brake, Front0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40206VW000 |
from US $98.01 |
||
|
40207
|
40207
0112500723 BOLT-ROTOR0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
0112500723 |
from US $1.04 |
||
|
40207A
|
40207A
0112500723 BOLT-ROTOR0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
0112500723 |
from US $1.04 |
||
|
40210A
|
40210A
40211-MA010
ｺ-ﾝ,ﾍﾞｱﾘﾝｸﾞ ﾌﾛﾝﾄ ﾎｲ-ﾙ
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40211-MA010 |
— | ||
|
40216
|
40216
40216-MA010
ｺｰﾝ,ﾍﾞｱﾘﾝｸﾞﾌﾛﾝﾄ ﾎｲｰﾙ ｱｳﾀｰ
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40216-MA010 |
— | ||
|
40222
|
40222
40222-MA000 BOLTHUB0706--01 ~ ; H4WD.STD.S.CAB.HST.15T.ZD30DDTI +4WD.STD.D.CAB.ZD30DDTI +4WD.SHT.ZD30DDTI |
40222-MA000 |
US $3.46 |
||
|
40222
|
40222
40222-MA000 BOLTHUB0706--01 ~ ; H4WD.STD.S.CAB.HST.15T.ZD30DDTI +4WD.STD.D.CAB.ZD30DDTI +4WD.SHT.ZD30DDTI |
40222-MA000 |
US $3.46 |
||
|
40227
|
40227
4022720N00 Seal-Oil, Inner Drive Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4022720N00 |
from US $12.38 |
||
|
40227
|
40227
4022731G00 Seal-Grease, Side Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4022731G00 |
from US $9.59 |
||
|
40232
|
40232
40232-MA010
ｼ-ﾙ,ｸﾞﾘ-ｽ ﾌﾛﾝﾄ ﾊﾌﾞ
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40232-MA010 |
— | ||
| replacement | |||||
|
40232
|
40232
40232MA02A 40232MA02A0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40232MA02A |
US $6.51 |
||
|
40234
|
40234
4023430N00 Cap-Drive Flange, Front0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4023430N00 |
from US $10.32 |
||
|
40262
|
40262
4026292G00 Nut-Lock, Front Wheel Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4026292G00 |
from US $11.82 |
||
|
40264
|
40264
4026492G00 Washer-Front Wheel Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4026492G00 |
from US $6.94 |
||
|
40588
|
40588
4058850W00 Bearing-Drive Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4058850W00 |
from US $10.39 |
||
|
40589
|
40589
40589-50W00 Washer-Thrust, Drive Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
40589-50W00 |
US $16.27 |
||
|
440
|
Front brake
440
|
||||
|
47970M
|
47970M
47970-MA000 ｾﾝｻ-,ﾛ-ﾀ- ｱﾝﾁ ｽｷﾂﾄﾞ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
47970-MA000 |
US $42.05 |
||
