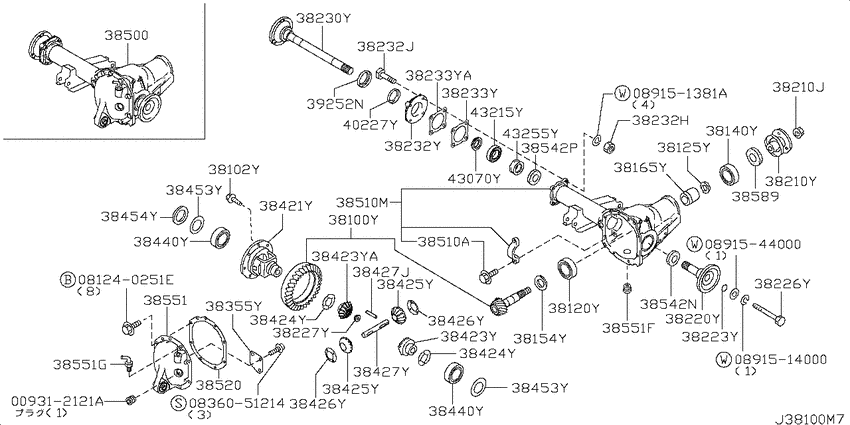

Front final drive (2007-06-01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD.SHT
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
0836051214
|
0836051214
08360-51214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51214 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
38100Y
|
38100Y
38100-F3500 Gear Set-Final Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38100-F3500 |
US $573.48 |
||
| replacement | |||||
|
38100Y
|
38100Y
38100-F3580 Gear Set-Final Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38100-F3580 |
US $598.30 |
||
|
38102Y
|
38102Y
3810212S00 Bolt-Drive Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3810212S00 |
from US $1.85 |
||
|
38120Y
|
38120Y
3812061000 Bearing-Drive Pinion, Rear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3812061000 |
from US $32.66 |
||
|
38125Y
|
38125Y
3812561001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3812561001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812661001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.83 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3812661001 |
US $4.71 |
||
|
38125Y
|
38125Y
3812761001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3812761001 |
US $4.85 |
||
|
38125Y
|
38125Y
38128-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.87 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38128-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
3812961001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.89 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3812961001 |
US $4.42 |
||
|
38125Y
|
38125Y
3813061001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.91 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3813061001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813161001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.93 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3813161001 |
US $4.85 |
||
|
38125Y
|
38125Y
38132-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38132-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38133-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.97 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38133-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
3813461001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.99 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3813461001 |
US $4.85 |
||
|
38125Y
|
38125Y
3813561001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=4.01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3813561001 |
US $4.85 |
||
|
38125Y
|
38125Y
38136-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=4.03 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38136-61001 |
US $4.85 |
||
|
38125Y
|
38125Y
38137-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=4.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38137-61001 |
US $4.18 |
||
|
38125Y
|
38125Y
38138-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=4.07 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38138-61001 |
US $3.46 |
||
|
38125Y
|
38125Y
38139-61001 Washer-Adjust, Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=4.09 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38139-61001 |
US $4.85 |
||
|
38140Y
|
38140Y
3812013201 Bearing-Drive Pinion, Front0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; MADE IN JAPAN |
3812013201 |
US $49.22 |
||
|
38140Y
|
38140Y
38120-1320A
Bearing-Drive Pinion
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; MADE IN CHINA |
38120-1320A |
— | ||
| replacement | |||||
|
38140Y
|
38140Y
3812013201 Bearing-Drive Pinion, Front0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; MADE IN CHINA |
3812013201 |
US $49.22 |
||
|
38154Y
|
38154Y
38154-P6017 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.09 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6017 |
from US $8.25 |
||
|
38154Y
|
38154Y
38154-P6018 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.12 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6018 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6019 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.15 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6019 |
US $8.78 |
||
|
38154Y
|
38154Y
38154-P6020 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.18 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6020 |
from US $8.30 |
||
|
38154Y
|
38154Y
38154-P6021 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.21 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6021 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6022 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.24 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6022 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6023 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.27 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6023 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6024 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6024 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6025 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.33 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6025 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6026 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.36 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154P6026 |
US $10.08 |
||
|
38154Y
|
38154Y
38154P6027 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.39 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154P6027 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6028 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.42 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6028 |
US $9.52 |
||
|
38154Y
|
38154Y
38154-P6029 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.45 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6029 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6030 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.48 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6030 |
from US $10.08 |
||
|
38154Y
|
38154Y
38154-P6031 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.51 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6031 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6032 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.54 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6032 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6033 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.57 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6033 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6034 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6034 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6035 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.63 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6035 |
US $10.08 |
||
|
38154Y
|
38154Y
38154-P6036 Washer-Adjust, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=3.66 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-P6036 |
US $9.52 |
||
|
38165Y
|
38165Y
3816561001 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=56.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
3816561001 |
US $11.35 |
||
|
38165Y
|
38165Y
38165B4000 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=54.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38165B4000 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4001 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=54.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38165B4001 |
US $12.67 |
||
|
38165Y
|
38165Y
38165B4002 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=55.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38165B4002 |
US $15.26 |
||
|
38165Y
|
38165Y
38165-B4003 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=55.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38165-B4003 |
US $14.54 |
||
|
38165Y
|
38165Y
38165-B4004 Spacer-Drive Pinion Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; L=55.70 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38165-B4004 |
US $14.54 |
||
|
38210J
|
38210J
38216-U301A Nut-Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38216-U301A |
US $4.99 |
||
|
38210Y
|
38210Y
38210-21G15 Flange Assy-Companion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38210-21G15 |
US $84.41 |
||
|
38220Y
|
38220Y
38220-21G00 Flange Assy-Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38220-21G00 |
US $161.28 |
||
|
38223Y
|
38223Y
3822321000 Seal-O Ring, Side Flange0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3822321000 |
US $0.58 |
||
| replacement | |||||
|
38223Y
|
38223Y
33125Z5002
O ring
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33125Z5002 |
— | ||
|
38226Y
|
38226Y
38226-23G00 Bolt-Fix Side Flange0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38226-23G00 |
US $3.46 |
||
|
38227Y
|
38227Y
38227-21G00 Nut-Lock, Side Flange0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38227-21G00 |
US $4.18 |
||
|
38230Y
|
38230Y
38230-MA00A ｼﾔﾌﾄ ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38230-MA00A |
US $180 |
||
|
38232H
|
38232H
0122500161 NUT-FIX PROPELLER SHAFT0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
0122500161 |
US $3.06 |
||
|
38232J
|
38232J
01111-00281 BOLT-FIX PROPELLER SHAFT0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
01111-00281 |
US $3.06 |
||
|
38232Y
|
38232Y
38232-01G00 Retainer-Extension Tube0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38232-01G00 |
US $62.38 |
||
|
38233Y
|
38233Y
3823301G10 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.5,ｾﾝﾀｸｼﾃ ｼﾖｳ |
3823301G10 |
US $7.49 |
||
|
38233Y
|
38233Y
3823301G11 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.1,ｾﾝﾀｸｼﾃ ｼﾖｳ |
3823301G11 |
US $3.46 |
||
|
38233Y
|
38233Y
38233-01G12 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.2,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38233-01G12 |
US $4.18 |
||
|
38233Y
|
38233Y
3823301G13 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.3,ｾﾝﾀｸｼﾃ ｼﾖｳ |
3823301G13 |
US $4.18 |
||
|
38233Y
|
38233Y
38233-01G14 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.4,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38233-01G14 |
US $4.18 |
||
|
38233YA
|
38233YA
3823301G11 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.1,ｾﾝﾀｸｼﾃ ｼﾖｳ |
3823301G11 |
US $3.46 |
||
|
38233YA
|
38233YA
38233-01G12 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.2,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38233-01G12 |
US $4.18 |
||
|
38233YA
|
38233YA
3823301G13 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.3,ｾﾝﾀｸｼﾃ ｼﾖｳ |
3823301G13 |
US $4.18 |
||
|
38233YA
|
38233YA
38233-01G14 Shim-Adjust, Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.4,ｾﾝﾀｸｼﾃ ｼﾖｳ |
38233-01G14 |
US $4.18 |
||
|
38355Y
|
38355Y
38355-01G00 Defense-Gear Oil0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38355-01G00 |
US $4.75 |
||
|
38421Y
|
38421Y
38421-12S00 Case-Differential0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38421-12S00 |
US $208.80 |
||
|
38423Y
|
38423Y
38423C6100 Gear-Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38423C6100 |
US $145.55 |
||
|
38423Y
|
38423Y
38423C6100 Gear-Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38423C6100 |
US $145.55 |
||
|
38423YA
|
38423YA
38423C6100 Gear-Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38423C6100 |
US $145.55 |
||
|
38424Y
|
38424Y
38424N3110 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.75-0.78 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3110 |
from US $3.39 |
||
|
38424Y
|
38424Y
38424N3111 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.78-0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3111 |
US $4.71 |
||
|
38424Y
|
38424Y
38424-N3112 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.81-0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3112 |
US $4.99 |
||
|
38424Y
|
38424Y
38424N3113 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.84-0.87 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3113 |
US $4.99 |
||
|
38424Y
|
38424Y
38424N3114 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.87-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3114 |
US $4.99 |
||
|
38424Y
|
38424Y
38424-N3115 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.90-0.93 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3115 |
US $4.99 |
||
|
38424Y
|
38424Y
38424-N3116 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.93-0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3116 |
US $4.99 |
||
|
38424Y
|
38424Y
38424N3110 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.75-0.78 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3110 |
from US $3.39 |
||
|
38424Y
|
38424Y
38424N3111 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.78-0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3111 |
US $4.71 |
||
|
38424Y
|
38424Y
38424-N3112 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.81-0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3112 |
US $4.99 |
||
|
38424Y
|
38424Y
38424N3113 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.84-0.87 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3113 |
US $4.99 |
||
|
38424Y
|
38424Y
38424N3114 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.87-0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424N3114 |
US $4.99 |
||
|
38424Y
|
38424Y
38424-N3115 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.90-0.93 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3115 |
US $4.99 |
||
|
38424Y
|
38424Y
38424-N3116 Washer-Thrust, Side Gear0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=0.93-0.96 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-N3116 |
US $4.99 |
||
|
38425Y
|
38425Y
3842550W00 Pinion-Mate0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3842550W00 |
US $55.31 |
||
|
38425Y
|
38425Y
3842550W00 Pinion-Mate0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3842550W00 |
US $55.31 |
||
|
38426Y
|
38426Y
38426P9001 Washer-Thrust, Pinion Mate0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38426P9001 |
US $4.30 |
||
|
38426Y
|
38426Y
38426P9001 Washer-Thrust, Pinion Mate0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38426P9001 |
US $4.30 |
||
|
38427J
|
38427J
38428U1500 Pin-Lock, Pinion Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38428U1500 |
from US $0.50 |
||
|
38427Y
|
38427Y
3842740F00 Shaft-Pinion Mate0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3842740F00 |
US $56.69 |
||
|
38440Y
|
38440Y
38440-N3111 Bearing-Differential Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38440-N3111 |
from US $32.66 |
||
|
38440Y
|
38440Y
38440-N3111 Bearing-Differential Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38440-N3111 |
from US $32.66 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3100 |
from US $9.36 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3101 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3102 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.15 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3104 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3105 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.35 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3107 |
from US $9.86 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3108 |
from US $9.64 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.45 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.55 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3112 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3100 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3100 |
from US $9.36 |
||
|
38453Y
|
38453Y
38453N3101 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3101 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3102 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3102 |
from US $9.73 |
||
|
38453Y
|
38453Y
38453N3103 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.15 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3103 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3104 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3104 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3105 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3105 |
from US $10.06 |
||
|
38453Y
|
38453Y
38453N3106 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3106 |
from US $9.56 |
||
|
38453Y
|
38453Y
38453N3107 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.35 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3107 |
from US $9.86 |
||
|
38453Y
|
38453Y
38453N3108 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3108 |
from US $9.64 |
||
|
38453Y
|
38453Y
38453N3109 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.45 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3109 |
US $12.05 |
||
|
38453Y
|
38453Y
38453N3110 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3110 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3111 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.55 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3111 |
US $10.99 |
||
|
38453Y
|
38453Y
38453N3112 Shim-Adjust, Side Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI; T=2.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3112 |
from US $9.73 |
||
|
38454Y
|
38454Y
38454-N3160 Spacer-Differential Side0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38454-N3160 |
from US $27.35 |
||
|
38500
|
38500
38500-MA001 ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38500-MA001 |
US $2,198 |
||
|
38510A
|
38510A
38315-N3100 Bolt-Bearing Cap0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38315-N3100 |
US $4.71 |
||
|
38510M
|
38510M
38310-46G02
ｷﾔﾘﾔ ｺﾝﾌﾟﾘ-ﾄ,ｷﾞﾔ ｳｲｽﾞ ｴｸｽﾃﾝｼﾖﾝ ﾁﾕ-ﾌﾞ
0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38310-46G02 |
— | ||
|
38520
|
38520
38320-21G02 Gasket-Gear Carrier0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38320-21G02 |
US $29.23 |
||
|
38542N
|
38542N
38342N3100 Seal-Oil, Side Flange0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38342N3100 |
from US $4.92 |
||
|
38542P
|
38542P
43252H1000 Seal-Oil, Rear Axle Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
43252H1000 |
from US $5.04 |
||
|
38551
|
38551
38350-MA00A ｶﾊﾞ-,ﾌﾛﾝﾄ ﾌｱｲﾅﾙ ﾄﾞﾗｲﾌﾞ0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38350-MA00A |
US $92.74 |
||
|
38551
|
38551
32103U840A Plug-Drain0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32103U840A |
from US $5.55 |
||
|
38551
|
38551
38356-01G10 Breather-Final Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38356-01G10 |
US $12.20 |
||
|
38551F
|
38551F
32103U840A Plug-Drain0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32103U840A |
from US $5.55 |
||
|
38551G
|
38551G
38356-01G10 Breather-Final Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
38356-01G10 |
US $12.20 |
||
|
38589
|
38589
3818921G17 Seal-Oil, Drive Pinion0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3818921G17 |
from US $7.66 |
||
|
39252N
|
39252N
3925201G00 Shield-Dust0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
3925201G00 |
US $14.40 |
||
|
40227Y
|
40227Y
4022731G00 Seal-Grease, Side Shaft0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4022731G00 |
from US $9.59 |
||
|
43070Y
|
43070Y
4307001L00 Spacer-Rear Axle Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
4307001L00 |
from US $3.02 |
||
|
43215Y
|
43215Y
43215H5000 Bearing-Rear Axle, Outer0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
43215H5000 |
from US $37.33 |
||
|
43255Y
|
43255Y
43255H1000 Collar-Bearing0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
43255H1000 |
from US $16.07 |
||
