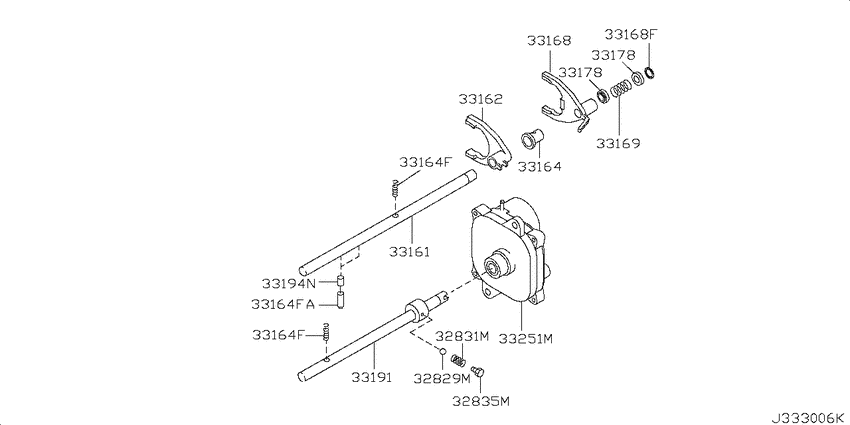

Transfer shift lever,fork & control (2007-06-01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 4WD.SHT
- transmission
- MT.F5
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HST.15T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32829M
|
32829M
32829-26760 Ball-Check0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32829-26760 |
from US $0.74 |
||
|
32831M
|
32831M
32830-EA301 Spring-Locking Ball0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32830-EA301 |
from US $0.83 |
||
|
32835M
|
32835M
32834-33G0A Plug-Checking Ball0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32834-33G0A |
US $2.45 |
||
|
33161
|
33161
33161-8S010 Rod-Shift, Low & High0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33161-8S010 |
US $21.31 |
||
|
33162
|
33162
33162-8S01A Fork-Shift, Low & High0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33162-8S01A |
US $52.81 |
||
|
33164
|
33164
33164-8S015 Bracket-Shift Rod, Front Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33164-8S015 |
US $23.62 |
||
|
33164
|
33164
32917-01T00 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32917-01T00 |
from US $3.53 |
||
|
33164
|
33164
33192-8S010 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33192-8S010 |
US $3.46 |
||
|
33164F
|
33164F
32917-01T00 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32917-01T00 |
from US $3.53 |
||
|
33164F
|
33164F
33192-8S010 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33192-8S010 |
US $3.46 |
||
|
33164F
|
33164F
32917-01T00 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
32917-01T00 |
from US $3.53 |
||
|
33164F
|
33164F
33192-8S010 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33192-8S010 |
US $3.46 |
||
|
33164FA
|
33164FA
33192-8S010 Pin0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33192-8S010 |
US $3.46 |
||
|
33168
|
33168
33168-8S010 Fork-Shift, Front Drive0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33168-8S010 |
US $58.61 |
||
|
33168
|
33168
33176-33G00 Ring-Retainer, Shift Fork0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33176-33G00 |
US $2.45 |
||
|
33168F
|
33168F
33176-33G00 Ring-Retainer, Shift Fork0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33176-33G00 |
US $2.45 |
||
|
33169
|
33169
33169-8S010 Spring-Shift Fork0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33169-8S010 |
US $2.45 |
||
|
33178
|
33178
33178-8S010 Collar-Fork Guide0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33178-8S010 |
US $9.07 |
||
|
33178
|
33178
33178-8S010 Collar-Fork Guide0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33178-8S010 |
US $9.07 |
||
|
33191
|
33191
33190-EA30A Shaft-Cross Shift0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33190-EA30A |
US $87.84 |
||
|
33194N
|
33194N
33194-8S010 Collar-Shift0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33194-8S010 |
US $3.17 |
||
|
33251M
|
33251M
33251EA301 Device Assy-Transfer Control0706--01 ~ ; (4WD.STD+4WD.SHT).ZD30DDTI |
33251EA301 |
US $475.78 |
