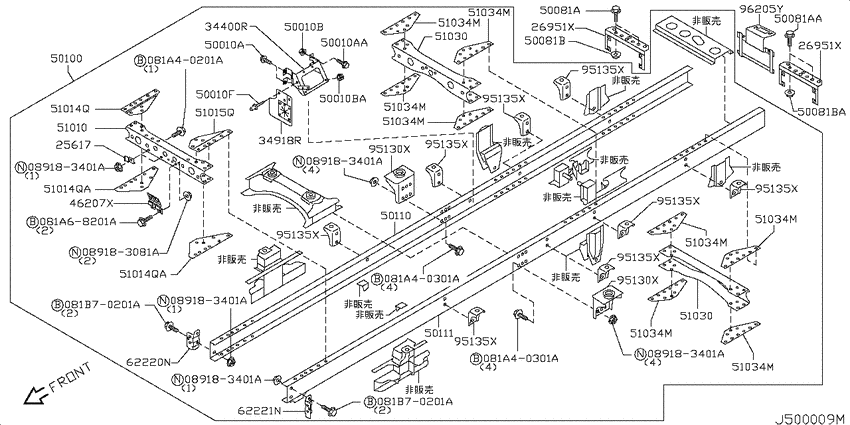

Frame (2007-06-01 ~ ; ﾌﾚｰﾑ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T)) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD.STD
- transmission
- MT.F6
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HWT.2T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A40201A
|
081A40201A
081A40201A
BOLTHEX
|
081A40201A |
— | ||
|
081A40301A
|
081A40301A
081A4-0301A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A4-0301A |
— | ||
|
081A40301A
|
081A40301A
081A4-0301A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A4-0301A |
— | ||
|
081A68201A
|
081A68201A
081A68201A BOLTFLANGE |
081A68201A |
US $1.24 |
||
|
081B70201A
|
081B70201A
081B70201A BOLTFLANGE |
081B70201A |
US $0.65 |
||
|
081B70201A
|
081B70201A
081B70201A BOLTFLANGE |
081B70201A |
US $0.65 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.93 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
25617
|
25617
B5617-MA0MA Bracket-Horn0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
B5617-MA0MA |
US $4.03 |
||
|
26951X
|
26951X
26910-T8001 Bracket0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
26910-T8001 |
US $17.14 |
||
|
26951X
|
26951X
26910-T8001 Bracket0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
26910-T8001 |
US $17.14 |
||
|
46207X
|
46207X
46207-MA40A ﾌﾞﾗｹﾂﾄ,ﾌﾞﾚ-ｷ & ｸﾗﾂﾁ ﾎ-ｽ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
46207-MA40A |
US $14.40 |
||
|
50081A
|
50081A
01125-08254 BOLT0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
01125-08254 |
US $3.75 |
||
|
50081A
|
50081A
01125-08254 BOLT0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
01125-08254 |
US $3.75 |
||
|
50081AA
|
50081AA
01125-08254 BOLT0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
01125-08254 |
US $3.75 |
||
|
50081B
|
50081B
0122500331 NUT-WIPER ARM0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
0122500331 |
US $1.93 |
||
|
50081B
|
50081B
0122500331 NUT-WIPER ARM0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
0122500331 |
US $1.93 |
||
|
50081BA
|
50081BA
0122500331 NUT-WIPER ARM0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
0122500331 |
US $1.93 |
||
|
50100
|
50100
50100-MA00A ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-0706--01 ~ ; +C.O.STD.S.CAB.HWT.2T +REFRIG.2WD.STD.HWT.2T |
50100-MA00A |
US $5,894 |
||
|
50110
|
50110
E0110-MA00A ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ rh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E0110-MA00A |
US $1,512 |
||
|
50111
|
50111
E0111-MA00A ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｻｲﾄﾞ lh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E0111-MA00A |
US $1,512 |
||
|
51010
|
51010
E1011-MA0MA ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ﾌｱ-ｽﾄ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1011-MA0MA |
US $142.42 |
||
|
51014Q
|
51014Q
E1014-MA0MA ｶﾞｾﾂﾄ,ｸﾛｽ ﾒﾝﾊﾞｰ rh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1014-MA0MA |
US $21.31 |
||
|
51014Q
|
51014Q
E1014-MA0AA ｶﾞｾﾂﾄ,ｸﾛｽ ﾒﾝﾊﾞｰ rh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1014-MA0AA |
US $21.31 |
||
|
51014QA
|
51014QA
E1014-MA0AA ｶﾞｾﾂﾄ,ｸﾛｽ ﾒﾝﾊﾞｰ rh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1014-MA0AA |
US $21.31 |
||
|
51014QA
|
51014QA
E1014-MA0AA ｶﾞｾﾂﾄ,ｸﾛｽ ﾒﾝﾊﾞｰ rh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1014-MA0AA |
US $21.31 |
||
|
51015Q
|
51015Q
E1015-MA0MA ｶﾞｾﾂﾄ,ｸﾛｽ ﾒﾝﾊﾞｰ lh0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
E1015-MA0MA |
US $21.31 |
||
|
51030
|
51030
51031-MA030 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ｻ-ﾄﾞ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51031-MA030 |
US $233.28 |
||
|
51030
|
51030
51031-MA030 ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｸﾛｽ ｻ-ﾄﾞ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51031-MA030 |
US $233.28 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
51034M
|
51034M
51034-MA030 ｶﾞｾﾂﾄ,ｻ-ﾄﾞ ｸﾛｽ ﾒﾝﾊﾞ-0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
51034-MA030 |
US $21.31 |
||
|
62220N
|
62220N
F2220MA0MA ﾌﾞﾗｹﾂﾄ ｱﾂｼｰ ﾌﾛﾝ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
F2220MA0MA |
US $26.35 |
||
|
62221N
|
62221N
F2221MA0MA ﾌﾞﾗｹﾂﾄ ｱﾂｼｰ ﾌﾛﾝ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
F2221MA0MA |
US $26.35 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
95135X
|
95135X
K3742-MA0MA ﾌﾞﾗｹﾂﾄ,ﾘﾔ ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
K3742-MA0MA |
US $29.38 |
||
|
96205Y
|
96205Y
962202T011 ﾌﾞﾗｹﾂﾄ,ﾌﾟﾚｰﾄ0706--01 ~ ; 7C.O.STD.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
962202T011 |
US $69.70 |
