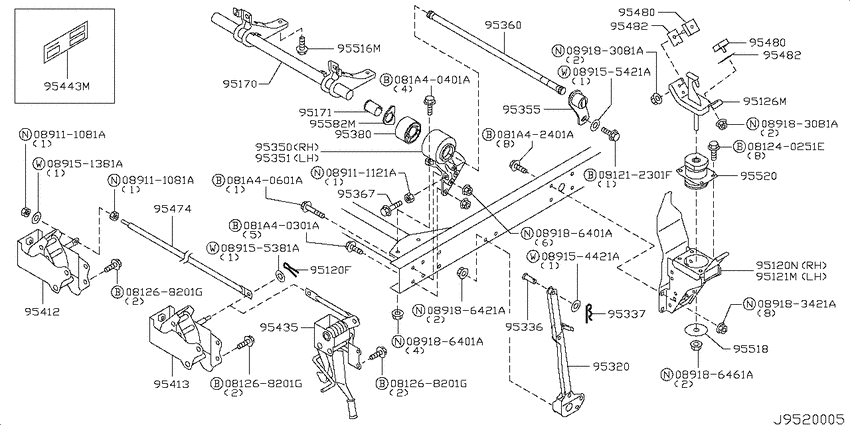

ﾁﾙﾄ ｷｬﾌﾞ ﾏｳﾝﾃｨﾝｸﾞ (2007-06-01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T)) Diagram Nissan ATLAS/CONDOR
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- ZD30DDTI
- drive
- 2WD.STD
- transmission
- MT.F6
- grade
- BASE
- body
- C.O.STD
- tire & max load
- HWT.2T
- cabin
- S.CAB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081212301F
|
081212301F
08121-2301F
Bolt-hexagon
|
08121-2301F |
— | ||
|
081240251E
|
081240251E
081240251E
Bolt-hexagon
|
081240251E |
— | ||
|
081268201G
|
081268201G
081268201G
Bolt-hexagon
|
081268201G |
— | ||
|
081268201G
|
081268201G
081268201G
Bolt-hexagon
|
081268201G |
— | ||
|
081268201G
|
081268201G
081268201G
Bolt-hexagon
|
081268201G |
— | ||
|
081A40301A
|
081A40301A
081A4-0301A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A4-0301A |
— | ||
|
081A40401A
|
081A40401A
081A4-0401A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A4-0401A |
— | ||
|
081A40601A
|
081A40601A
081A4-0601A
ﾎﾞﾙﾄ,ﾍｷｻｺﾞﾝ
|
081A4-0601A |
— | ||
|
081A42401A
|
081A42401A
081A4-2401A
ﾎﾞﾙﾄﾌﾗﾝｼﾞﾍｷｻｺﾞﾝ
|
081A4-2401A |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089111121A
|
089111121A
08911-1121A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-1121A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
089155381A
|
089155381A
089155381A Washer-Plain |
089155381A |
US $1.90 |
||
|
089155421A
|
089155421A
08915-5421A WASHERPLAIN |
08915-5421A |
from US $0.52 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089186401A
|
089186401A
089186401A NUTSLOCK |
089186401A |
US $1.83 |
||
|
089186401A
|
089186401A
089186401A NUTSLOCK |
089186401A |
US $1.83 |
||
|
089186421A
|
089186421A
089186421A NUTSLOCK |
089186421A |
from US $0.59 |
||
|
089186461A
|
089186461A
089186461A STANDARD HARDWA |
089186461A |
US $0.63 |
||
|
95120F
|
95120F
0153200022 PIN0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
0153200022 |
US $1.73 |
||
|
95120N
|
95120N
95120-MA70A ﾌﾞﾗｹﾂﾄ,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ ｾｶﾝﾄﾞ rh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95120-MA70A |
US $230.40 |
||
|
95121M
|
95121M
95121-MA70A ﾌﾞﾗｹﾂﾄ,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ ｾｶﾝﾄﾞ lh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95121-MA70A |
US $230.40 |
||
|
95126M
|
95126M
95126-MA000 ﾌﾞﾗｹﾂﾄ,ﾌﾛ-ﾃｲﾝｸﾞ rh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95126-MA000 |
US $89.71 |
||
|
95170
|
95170
95170-MA300 ﾚﾊﾞ-,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95170-MA300 |
US $244.80 |
||
|
95171
|
95171
95171MA000 BUSHCAB MOUNTI0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95171MA000 |
US $4.32 |
||
|
95320
|
95320
95320-MA000 ﾌﾞﾗｹﾂﾄ,ﾁﾙﾄ ｽﾄﾂﾊﾟ- ﾛｱ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95320-MA000 |
US $75.60 |
||
|
95336
|
95336
95336-0T00A ﾋﾟﾝ,ｽﾄﾂﾊﾟ- ｱﾂﾊﾟ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95336-0T00A |
US $5.62 |
||
|
95337
|
95337
95337-0T00A ﾋﾟﾝ,ｽﾄﾂﾊﾟｰ ｾﾝﾀｰ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95337-0T00A |
US $0.86 |
||
|
95350
|
95350
95350-MA00B ﾌﾞﾗｹﾂﾄ,ﾁﾙﾄ ﾋﾝｼﾞ rh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95350-MA00B |
US $89.57 |
||
|
95351
|
95351
95351MA00B ﾌﾞﾗｹﾂﾄ,ﾁﾙﾄ ﾋﾝｼﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95351MA00B |
US $89.57 |
||
|
95355
|
95355
95355-MA00A ｱ-ﾑ,ｱﾝｶ-0706--01 ~ 0801--01; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95355-MA00A |
US $50.83 |
||
|
95355
|
95355
95355-MC10A ｱ-ﾑ,ｱﾝｶ-0801--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95355-MC10A |
US $48.38 |
||
|
95360
|
95360
95360-MA70B ﾊﾞ-,ﾄ-ｼﾖﾝ rh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95360-MA70B |
US $107.42 |
||
|
95367
|
95367
95367-0T002 ﾎﾞﾙﾄ,ｽﾄﾂﾊﾟ- ﾄ-ｼﾖﾝ ﾊﾞ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95367-0T002 |
US $0.86 |
||
|
95380
|
95380
95380MA00A CUSHION0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95380MA00A |
US $16.27 |
||
|
95412
|
95412
95410-0T006 ﾌﾞﾗｹﾂﾄ,ﾁﾙﾄ ﾛﾂｸ ﾘﾝｹ-ｼﾞ rh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95410-0T006 |
US $96.34 |
||
|
95413
|
95413
95411-0T007 ﾌﾞﾗｹﾂﾄ,ﾁﾙﾄ ﾛﾂｸ ﾘﾝｹ-ｼﾞ lh0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95411-0T007 |
US $96.34 |
||
|
95435
|
95435
95435-MA700 ﾚﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾁﾙﾄ ｺﾝﾄﾛ-ﾙ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95435-MA700 |
US $51.41 |
||
|
95443M
|
95443M
95443-MA00A ﾌﾟﾚ-ﾄ,ｷﾔﾌﾞ ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95443-MA00A |
US $4.32 |
||
|
95474
|
95474
95474-0T000 ﾛﾂﾄﾞ,ｾﾝﾀ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95474-0T000 |
US $45.94 |
||
|
95480
|
95480
95480-0T002 ｼﾖﾙﾀﾞ- ﾗﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95480-0T002 |
US $18.58 |
||
|
95480
|
95480
95480-0T002 ｼﾖﾙﾀﾞ- ﾗﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95480-0T002 |
US $18.58 |
||
|
95482
|
95482
95482-0T000 ｽﾍﾟ-ｻ-,ｼﾖﾙﾀﾞ- ﾗﾊﾞ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95482-0T000 |
US $5.33 |
||
|
95482
|
95482
95482-0T000 ｽﾍﾟ-ｻ-,ｼﾖﾙﾀﾞ- ﾗﾊﾞ-0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95482-0T000 |
US $5.33 |
||
|
95516M
|
95516M
95516-0T00A ﾎﾞﾙﾄ,ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95516-0T00A |
US $4.18 |
||
|
95518
|
95518
95528-MA00A ﾜﾂｼﾔ-,ﾎﾞﾃﾞ- ﾏｳﾝﾃｲﾝｸﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95528-MA00A |
US $6.91 |
||
|
95520
|
95520
95520-MA00A ｲﾝｼﾕﾚｰﾀｰ,ﾎﾞﾃﾞｰ ﾏｳﾝﾃｲﾝｸﾞ ｾｶﾝﾄﾞ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95520-MA00A |
US $46.22 |
||
|
95582M
|
95582M
95582MA00A ｽﾄﾂﾊﾟｰ,ﾎﾞﾃﾞｰ ﾏｳ0706--01 ~ ; =C.O.STD.S.CAB.(SWT.2T+HWT.2T) +REFRIG.2WD.STD.(SWT.2T+HWT.2T) |
95582MA00A |
US $6.91 |
