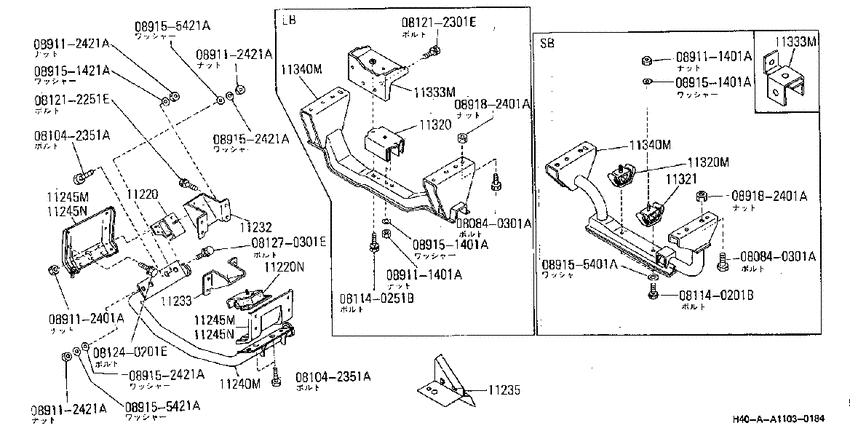

engine & transmission mounting (1984-06-01 ~ 1986-11-01; FD33#) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- FD33T
- transmission
- MT
- body
- TH
- body type
- LB/2T
- transmission/shift type
- F6
- tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080840301A
|
080840301A
08084-0301A
Bolt-hexagon
|
08084-0301A |
— | ||
|
080840301A
|
080840301A
08084-0301A
Bolt-hexagon
|
08084-0301A |
— | ||
|
081042351A
|
081042351A
08104-2351A
Bolt-hexagon
|
08104-2351A |
— | ||
|
081042351A
|
081042351A
08104-2351A
Bolt-hexagon
|
08104-2351A |
— | ||
|
081140201B
|
081140201B
08114-0201B
Bolt-hexagon
|
08114-0201B |
— | ||
|
081140251B
|
081140251B
08114-0251B
Bolt-hexagon
|
08114-0251B |
— | ||
|
081212251E
|
081212251E
081212251E
Bolt-hexagon
|
081212251E |
— | ||
|
081212301E
|
081212301E
08121-2301E
Bolt-hexagon
|
08121-2301E |
— | ||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081270301E
|
081270301E
08127-0301E
Bolt-hexagon
|
08127-0301E |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
US $2.21 |
||
|
089112421A
|
089112421A
089112421A NUTHEX |
089112421A |
from US $0.54 |
||
|
089112421A
|
089112421A
089112421A NUTHEX |
089112421A |
from US $0.54 |
||
|
089112421A
|
089112421A
089112421A NUTHEX |
089112421A |
from US $0.54 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
089155421A
|
089155421A
08915-5421A WASHERPLAIN |
08915-5421A |
from US $0.52 |
||
|
089155421A
|
089155421A
08915-5421A WASHERPLAIN |
08915-5421A |
from US $0.52 |
||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
11220
|
11220
11220-T8000
Insulator-Engine Mounting, Front
8112--01 ~ 8406--01; ALL-ED33 |
11220-T8000 |
— | ||
|
11220
|
11220
11220-T9011 Insulator-Engine Mounting, Front8406--01 ~ 8611--01; FD33T; ﾐｷﾞ ﾖｳ |
11220-T9011 |
US $55.58 |
||
|
11220
|
11220
11220-T8010
Insulator-Engine Mounting, Front
8406--01 ~ 8611--01; FD33#; ﾋﾀﾞﾘ ﾖｳ |
11220-T8010 |
— | ||
| replacement | |||||
|
11220
|
11220
1122038T00 Insulator-Engine Mounting, Front8406--01 ~ 8611--01; FD33#; ﾋﾀﾞﾘ ﾖｳ |
1122038T00 |
US $42.69 |
||
|
11220N
|
11220N
11220-T8010
Insulator-Engine Mounting, Front
8406--01 ~ 8611--01; FD33#; ﾋﾀﾞﾘ ﾖｳ |
11220-T8010 |
— | ||
| replacement | |||||
|
11220N
|
11220N
1122038T00 Insulator-Engine Mounting, Front8406--01 ~ 8611--01; FD33#; ﾋﾀﾞﾘ ﾖｳ |
1122038T00 |
US $42.69 |
||
|
11232
|
11232
11232-T8401 Bracket-Engine Mounting, Rh8301--01 ~ 8406--01; FD33T |
11232-T8401 |
US $83.81 |
||
|
11232
|
11232
11232-T9001 Bracket-Engine Mounting, Rh8406--01 ~ 8611--01; FD33# |
11232-T9001 |
US $51.26 |
||
|
11233
|
11233
11233-T8400 Bracket-Engine Mounting, Lh8212--01 ~ 8301--01; FD33T |
11233-T8400 |
US $41.62 |
||
|
11233
|
11233
11233-T8401 Bracket-Engine Mounting, Lh8301--01 ~ 8406--01; FD33T |
11233-T8401 |
US $41.62 |
||
|
11233
|
11233
11233-T9001 Bracket-Engine Mounting, Lh8406--01 ~ 8611--01; FD33# |
11233-T9001 |
US $51.26 |
||
|
11235
|
11235
11228-S9701 Plate-Heat Shield8301--01 ~ 8406--01; FD33T; (A) |
11228-S9701 |
US $13.10 |
||
|
11235
|
11235
11229-S9700 Plate-Heat Shield8301--01 ~ 8406--01; FD33T; (B) |
11229-S9700 |
US $8.93 |
||
|
11240M
|
11240M
11240-T9000 Member-Engine Mounting, Front8406--01 ~ 8611--01; FD33# |
11240-T9000 |
US $400.73 |
||
|
11245M
|
11245M
11252-T9004
Support-Engine Mounting, Front
8406--01 ~ 8611--01; FD33T; ﾐｷﾞ ﾖｳ |
11252-T9004 |
— | ||
|
11245M
|
11245M
11252-T9004
Support-Engine Mounting, Front
8406--01 ~ 8611--01; FD33T; ﾐｷﾞ ﾖｳ |
11252-T9004 |
— | ||
|
11245N
|
11245N
11253-T9004
Support-Engine Mounting, Front
8406--01 ~ 8611--01; FD33T; ﾋﾀﾞﾘ ﾖｳ |
11253-T9004 |
— | ||
|
11245N
|
11245N
11253-T9004
Support-Engine Mounting, Front
8406--01 ~ 8611--01; FD33T; ﾋﾀﾞﾘ ﾖｳ |
11253-T9004 |
— | ||
|
11320
|
11320
11320-T8001 Insulator-Engine Mounting, Rear8112--01 ~ 8212--01; ALL-(AT,3T); ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
11320-T8001 |
US $61.78 |
||
|
11320
|
11320
11320-T9301 Insulator-Engine Mounting, Rear8301--01 ~ 8406--01; 3T.ED33+FD33T |
11320-T9301 |
US $69.12 |
||
|
11333M
|
11333M
11332-T9300 Bracket-Engine Mounting, Rear Lh8406--01 ~ 8611--01; LB.FD33# |
11332-T9300 |
US $145.44 |
||
|
11333M
|
11333M
11332-T9300 Bracket-Engine Mounting, Rear Lh8406--01 ~ 8611--01; LB.FD33# |
11332-T9300 |
US $145.44 |
||
|
11340M
|
11340M
11330-T9301 Member Assy-Engine Mounting, Rear8406--01 ~ 8611--01; LB.FD33# |
11330-T9301 |
US $355.42 |
||
|
11340M
|
11340M
11330-T9301 Member Assy-Engine Mounting, Rear8406--01 ~ 8611--01; LB.FD33# |
11330-T9301 |
US $355.42 |
||
