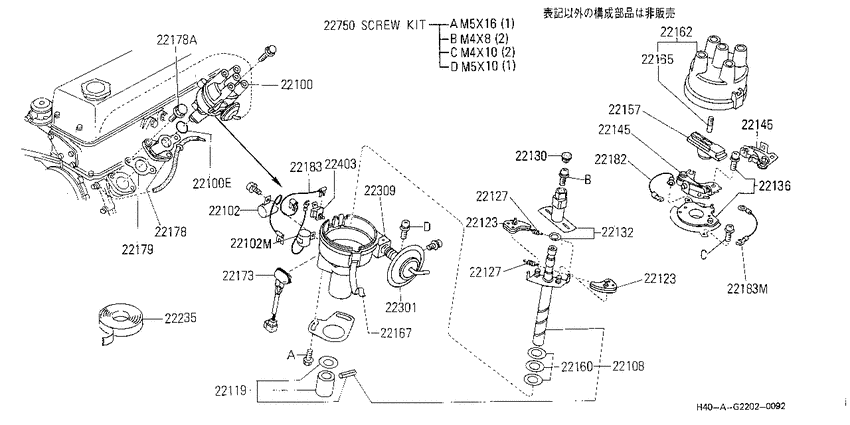

Distributor (1983-10-01 ~ ; 日立; Z20D) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- Z20D
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-T8502 Distributor Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22100-T8502 |
US $593.30 |
||
|
22100
|
22100
2218071200 Seal-O Ring8301--01 ~ 9006--01; Z20D |
2218071200 |
from US $3.55 |
||
|
22100E
|
22100E
2218071200 Seal-O Ring8301--01 ~ 9006--01; Z20D |
2218071200 |
from US $3.55 |
||
|
22102
|
22102
22102-U9605 Condenser Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22102-U9605 |
US $6.91 |
||
|
22102
|
22102
22102-U9606 Condenser Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22102-U9606 |
US $6.91 |
||
|
22102M
|
22102M
22102-U9606 Condenser Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22102-U9606 |
US $6.91 |
||
|
22108
|
22108
22108-N6000 Shaft Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22108-N6000 |
US $37.15 |
||
|
22119
|
22119
22119-W0400
Coupling Set
8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22119-W0400 |
— | ||
|
22123
|
22123
22109-A5500 Weight-Governor8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22109-A5500 |
US $6.19 |
||
|
22123
|
22123
22109-A5500 Weight-Governor8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22109-A5500 |
US $6.19 |
||
|
22127
|
22127
22110-T8501 Spring-Governor8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22110-T8501 |
US $7.20 |
||
|
22127
|
22127
22110-T8501 Spring-Governor8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22110-T8501 |
US $7.20 |
||
|
22130
|
22130
22130-A5500
Packing
8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22130-A5500 |
— | ||
|
22132
|
22132
22132-T8501 Cam Set8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22132-T8501 |
US $61.78 |
||
|
22136
|
22136
22136-U9605 Plate Assy-Breaker8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22136-U9605 |
US $45.50 |
||
|
22145
|
22145
22145-U9605 Contact Set8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22145-U9605 |
US $11.52 |
||
|
22145
|
22145
22145-U9605 Contact Set8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22145-U9605 |
US $11.52 |
||
|
22157
|
22157
22157-H7200 Rotor-Head8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22157-H7200 |
US $24.91 |
||
|
22160
|
22160
22160-M5600 Washer Set-Thrust8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22160-M5600 |
US $4.03 |
||
|
22162
|
22162
22162-19M00
Cap Assy-Distributor
8406--01 ~ 8611--01; Z20D; ﾋﾀﾁ |
22162-19M00 |
— | ||
| replacement | |||||
|
22162
|
22162
22162-19M01
Cap Assy-Distributor
8406--01 ~ 8611--01; Z20D; ﾋﾀﾁ |
22162-19M01 |
— | ||
|
22162
|
22162
22162-19M01
Cap Assy-Distributor
8611--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22162-19M01 |
— | ||
|
22162
|
22162
22162-U6002
Cap Assy-Distributor
8301--01 ~ 8307--01; Z20D; ﾋﾀﾁ |
22162-U6002 |
— | ||
|
22162
|
22162
22162-U6003
Cap Assy-Distributor
8307--01 ~ 8406--01; Z20D; ﾋﾀﾁ |
22162-U6003 |
— | ||
|
22165
|
22165
22165-30101 Point Assy-Carbon8301--01 ~ 8307--01; Z20D; ﾋﾀﾁ |
22165-30101 |
US $5.81 |
||
|
22165
|
22165
22165W0561 Point Assy-Carbon8307--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22165W0561 |
US $2.49 |
||
|
22167
|
22167
22167-N6005
Clamp Set-Cap
8301--01 ~ 8303--01; Z20D; ﾋﾀﾁ |
22167-N6005 |
— | ||
| replacement | |||||
|
22167
|
22167
22167-N8600
Clamp Set-Cap
8301--01 ~ 8303--01; Z20D; ﾋﾀﾁ |
22167-N8600 |
— | ||
|
22167
|
22167
22167-N8600
Clamp Set-Cap
8303--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22167-N8600 |
— | ||
|
22173
|
22173
22159-U9560
Harness Assy-Distributor
8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22159-U9560 |
— | ||
|
22178
|
22178
22178-W3800 Support-Distributor8301--01 ~ 8611--01; Z20D |
22178-W3800 |
US $32.30 |
||
|
22178
|
22178
01436-00181 SCREW8301--01 ~ 8611--01; Z20D; M6 X 14 |
01436-00181 |
US $2.45 |
||
|
22178A
|
22178A
01436-00181 SCREW8301--01 ~ 8611--01; Z20D; M6 X 14 |
01436-00181 |
US $2.45 |
||
|
22179
|
22179
2217907N00 Packing-Support, Distributor8912--01 ~ 9006--01; Z20D |
2217907N00 |
US $2.36 |
||
|
22179
|
22179
22179-E3000 Packing-Support, Distributor8301--01 ~ 8912--01; Z20D |
22179-E3000 |
US $2.45 |
||
| replacement | |||||
|
22179
|
22179
2217907N00 Packing-Support, Distributor8301--01 ~ 8912--01; Z20D |
2217907N00 |
US $2.36 |
||
|
22182
|
22182
22182-U9605 Wire Assy-Earth8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22182-U9605 |
US $5.04 |
||
|
22183
|
22183
22183-U9605 Wire Assy-Lead8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22183-U9605 |
US $4.03 |
||
|
22183
|
22183
22183-U9606 Wire Assy-Lead8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22183-U9606 |
US $4.03 |
||
|
22183M
|
22183M
22183-U9606 Wire Assy-Lead8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22183-U9606 |
US $4.03 |
||
|
22235
|
22235
B2235-U7410
Tape-Seal, Distributor
8301--01 ~ 9006--01; Z20S+Z20D |
B2235-U7410 |
— | ||
| replacement | |||||
|
22235
|
22235
22235-U7400 Tape-Seal, Distributor8301--01 ~ 9006--01; Z20S+Z20D |
22235-U7400 |
from US $0.50 |
||
|
22301
|
22301
22301-T8500 Control Assy-Vacuum8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22301-T8500 |
US $65.09 |
||
|
22309
|
22309
22309-52L00 Terminal-Earth8611--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22309-52L00 |
US $2.45 |
||
|
22309
|
22309
22309-M5600 Terminal-Earth8301--01 ~ 8611--01; Z20D; ﾋﾀﾁ |
22309-M5600 |
US $4.90 |
||
|
22403
|
22403
22403-U9605 Terminal Assy8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22403-U9605 |
US $16.42 |
||
|
22750
|
22750
22750-M5600 Screw Kit8301--01 ~ 9006--01; Z20D; ﾋﾀﾁ |
22750-M5600 |
US $8.93 |
||
