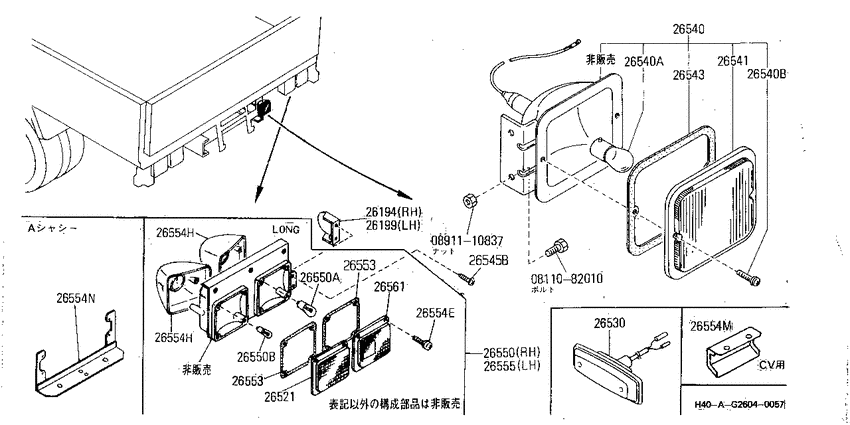

Rear combination lamp (1981-12-01 ~ 1986-11-01; LB) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- Z20D
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811082010
|
0811082010
08110-82010
Bolt-hexagon
|
08110-82010 |
— | ||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
26521
|
26521
26015T6001 Lens-Combination Lamp, Lh8112--01 ~ 8406--01; SB-CV; ﾀ-ﾝ ﾖｳ[B113] |
26015T6001 |
from US $5.35 |
||
|
26541
|
26541
26015T6003 Lens-Combination Lamp, Rh8112--01 ~ 8406--01; SB-CV; [B113] |
26015T6003 |
from US $3.90 |
||
|
26550
|
26550
26540-T6000 Lamp Assy-Rear Combination, Rh8212--01 ~ 8611--01; Z20#+SD25; 12V[B113] |
26540-T6000 |
US $180 |
||
|
26550
|
26550
2655008T00 Lamp Assy-Rear Combination, Rh8611--01 ~ 8905--01; Z20#+TD27; 12V[B113] |
2655008T00 |
US $257.81 |
||
|
26550
|
26550
AY08000022 Bulb8212--01 ~ 8611--01; Z20#+SD25; 12V-23W |
AY08000022 |
US $2.30 |
||
|
26550
|
26550
AY08000008 Bulb8212--01 ~ 8611--01; Z20#+SD25; 12V-23/8W |
AY08000008 |
US $2.59 |
||
|
26550
|
26550
AY08000064 Bulb8212--01 ~ 8611--01; Z20#+SD25; 12V-3.4W |
AY08000064 |
US $0.97 |
||
|
26550A
|
26550A
AY08000022 Bulb8212--01 ~ 8611--01; Z20#+SD25; 12V-23W |
AY08000022 |
US $2.30 |
||
|
26550B
|
26550B
AY08000008 Bulb8212--01 ~ 8611--01; Z20#+SD25; 12V-23/8W |
AY08000008 |
US $2.59 |
||
|
26553
|
26553
26016T6001 Packing-Lamp, Rh8112--01 ~ 8406--01; SB-CV; [B113] |
26016T6001 |
US $11.09 |
||
|
26553
|
26553
26016T6001 Packing-Lamp, Rh8112--01 ~ 8406--01; SB-CV; [B113] |
26016T6001 |
US $11.09 |
||
|
26554E
|
26554E
26019-T6004 Bolt8112--01 ~ 8406--01; SB-CV; ﾃ-ﾙ ﾖｳ[B113] |
26019-T6004 |
US $1.73 |
||
|
26554E
|
26554E
26019T6005 Bolt8611--01 ~ 8905--01; SB LB.(TLF+TH); [B113] |
26019T6005 |
US $1.73 |
||
|
26554H
|
26554H
26557-T6000
Cover-Combination Lamp, Rh
8406--01 ~ 8611--01; !SB-CV LB.2T.ED33.R5; RH |
26557-T6000 |
— | ||
|
26554H
|
26554H
26577-T6000 Cover-Combination Lamp, Rh8112--01 ~ 8406--01; SB-CV; [B113] |
26577-T6000 |
US $12.82 |
||
|
26554H
|
26554H
26557-T6000
Cover-Combination Lamp, Rh
8406--01 ~ 8611--01; !SB-CV LB.2T.ED33.R5; RH |
26557-T6000 |
— | ||
|
26554H
|
26554H
26577-T6000 Cover-Combination Lamp, Rh8112--01 ~ 8406--01; SB-CV; [B113] |
26577-T6000 |
US $12.82 |
||
|
26554N
|
26554N
26910-T8001 Bracket8611--01 ~ 8905--01; 5SB.A.(TL#+TH#+WC) DP+VC DP.TLF.BD30.A |
26910-T8001 |
US $17.14 |
||
|
26555
|
26555
26545-T6000 Lamp Assy-Rear Combination, Lh8212--01 ~ 8611--01; Z20#+SD25; 12V[B113] |
26545-T6000 |
US $180 |
||
|
26555
|
26555
2655508T00 Lamp Assy-Rear Combination, Lh8611--01 ~ 8905--01; Z20#+TD27; [B113] |
2655508T00 |
US $257.81 |
||
|
26561
|
26561
26015-T6002 Lens-Combination Lamp, Rh8112--01 ~ 8406--01; SB-CV; ﾃ-ﾙ ﾖｳ[B113] |
26015-T6002 |
US $16.70 |
||
|
26561
|
26561
26591T6000 Combination Lamp Lens (Red)8611--01 ~ 8905--01; SB LB.(TLF+TH); [B113] |
26591T6000 |
from US $10.60 |
||
|
26561
|
26561
26025-T6000 Screw8112--01 ~ 8406--01; SB-CV; [B113] |
26025-T6000 |
US $1.73 |
||
