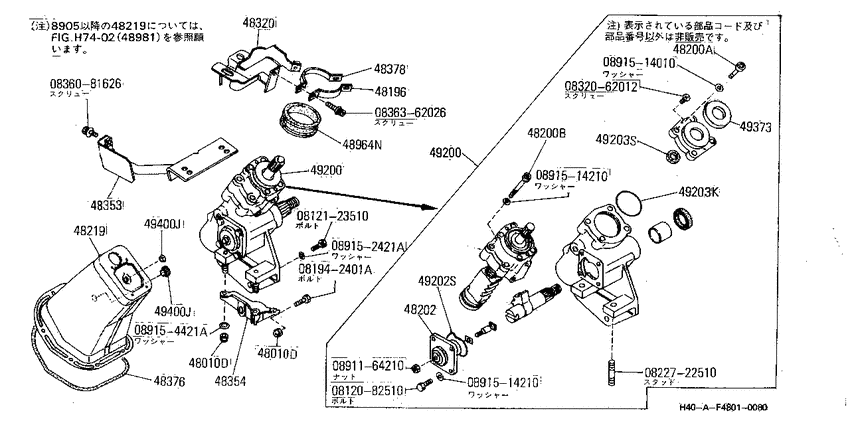

steering gear (1989-05-01 ~ 1990-06-01; パワーステアリング用; FD35# +*Z20 +*TD27 +*ED33 +*BD30) Diagram Nissan ATLAS/CONDOR
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- Z20D
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- R5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812082510
|
0812082510
08120-82510
Bolt-hexagon
|
08120-82510 |
— | ||
|
0812123510
|
0812123510
08121-23510
Bolt-hexagon
|
08121-23510 |
— | ||
|
081942401A
|
081942401A
08194-2401A
Bolt-hexagon
|
08194-2401A |
— | ||
|
0822722510
|
0822722510
08227-22510
ｽﾀﾂﾄﾞ
|
08227-22510 |
— | ||
|
0832062012
|
0832062012
08320-62012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-62012 |
— | ||
|
0836362026
|
0836362026
08363-62026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62026 |
— | ||
|
0891164210
|
0891164210
08911-64210
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64210 |
— | ||
| replacement | |||||
|
0891164210
|
0891164210
089116421A Nut |
089116421A |
US $3.06 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
0891514210
|
0891514210
08915-14210 WASHER-LOCK |
08915-14210 |
US $1.73 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
48010D
|
48010D
48366-C0401 Nut8502--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
48366-C0401 |
US $4.18 |
||
|
48010D
|
48010D
48366-C0401 Nut8502--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
48366-C0401 |
US $4.18 |
||
|
48196
|
48196
48327-T8000 Plate-Shield, Steering Gear8112--01 ~ 8406--01; SB |
48327-T8000 |
US $7.63 |
||
|
48196
|
48196
48327-T9000 Plate-Shield, Steering Gear8112--01 ~ 8406--01; LB |
48327-T9000 |
US $7.49 |
||
|
48200A
|
48200A
49367-R8200 Bolt8112--01 ~ 8406--01; SB.275T *SB.2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49367-R8200 |
US $4.32 |
||
|
48200A
|
48200A
49367-T9000 Bolt9006--01 ~ ; (SB/2T +SB/3T +LB/2T +LB/275T +LB/3T +SLB |
49367-T9000 |
US $4.32 |
||
|
48200B
|
48200B
49366-R8200 Bolt8112--01 ~ 8212--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49366-R8200 |
US $5.90 |
||
|
48202
|
48202
49371-R8226 Cover-Sector Shaft8112--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49371-R8226 |
US $279.36 |
||
|
48202
|
48202
48207-J2400 Packing-Sector Shaft Cover8112--01 ~ 8611--01; 2T |
48207-J2400 |
US $1.73 |
||
|
48219
|
48219
48981-02T00 Cover-Gear Box, Front8905--01 ~ 9006--01; Z20#+TD27+BD30+ED33 |
48981-02T00 |
US $293.11 |
||
|
48219
|
48219
48288-82100 Packing8112--01 ~ 8611--01; 2T |
48288-82100 |
US $2.45 |
||
|
48320
|
48320
48323-T8000
Clamp-Steering Post
8112--01 ~ 8301--01; ALL |
48323-T8000 |
— | ||
|
48320
|
48320
48323-T8001 Clamp-Steering Post8301--01 ~ 8504--01; ALL |
48323-T8001 |
US $53.14 |
||
|
48320
|
48320
48960-50T00 Clamp-Steering Post8905--01 ~ 9006--01; %SB.(TL#+TH#) +WC +DP +VC +LB.(TLF+TH) |
48960-50T00 |
US $40.03 |
||
|
48320
|
48320
48960-T8000 Clamp-Steering Post8504--01 ~ 8905--01; ALL |
48960-T8000 |
US $53.14 |
||
|
48353
|
48353
48380-T9000 Bracket8112--01 ~ 8212--01; LB |
48380-T9000 |
US $78.91 |
||
|
48353
|
48353
48380-T9001 Bracket8905--01 ~ 9006--01; TLF +TH +THS +WC +DP +VC |
48380-T9001 |
US $78.91 |
||
|
48354
|
48354
48390-T9000 Bracket8112--01 ~ 8406--01; LB |
48390-T9000 |
US $995.45 |
||
|
48376
|
48376
48355-T9000 Insulator-Steering Gear Housing8112--01 ~ 8406--01; LB |
48355-T9000 |
US $7.49 |
||
|
48378
|
48378
48326-T8000 Plate8112--01 ~ 8406--01; SB |
48326-T8000 |
US $7.63 |
||
|
48378
|
48378
48326-T9000 Plate8112--01 ~ 8406--01; LB |
48326-T9000 |
US $7.49 |
||
|
48964N
|
48964N
48341-B6000 Bush-Steering Column8112--01 ~ 8406--01; SB |
48341-B6000 |
US $4.32 |
||
|
48964N
|
48964N
48955-08T01 Bush-Steering Column8611--01 ~ 8905--01; SB LB.(TLF+TH); |
48955-08T01 |
US $4.32 |
||
|
49200
|
49200
49200-01T01 Gear Assy-Power Steering9006--01 ~ ; ;SB/2T +SB/3T +LB/275T +LB/2T.BD30 +LB/2T.FD35.TLF +LB/2T.TH; |
49200-01T01 |
US $3,738 |
||
|
49200
|
49200
49200-T8000 Gear Assy-Power Steering8112--01 ~ 8406--01; SB.275T *SB.2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49200-T8000 |
US $3,738 |
||
|
49200
|
49200
49200-01T01 Gear Assy-Power Steering9006--01 ~ ; ;SB/2T +SB/3T +LB/275T +LB/2T.BD30 +LB/2T.FD35.TLF +LB/2T.TH; |
49200-01T01 |
US $3,738 |
||
|
49200
|
49200
49200-T8000 Gear Assy-Power Steering8112--01 ~ 8406--01; SB.275T *SB.2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49200-T8000 |
US $3,738 |
||
|
49202S
|
49202S
49321-R8226
Seal Kit-Oil, Sector Shaft
8112--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49321-R8226 |
— | ||
|
49203K
|
49203K
49345-R8225 Seal Kit-Pinion, Power Steering Gear8112--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49345-R8225 |
US $4.57 |
||
|
49203S
|
49203S
49365-R8226
Seal Kit-Oil, Worm Gear
8112--01 ~ 8611--01; 275T+3T *2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49365-R8226 |
— | ||
|
49373
|
49373
49373-T9000 Cap-Seal, Rear Cover8112--01 ~ 8406--01; LB.(275T+3T) *LB.2T; *=ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾖｳ |
49373-T9000 |
US $9.22 |
||
|
49400J
|
49400J
27690-Z0001 Plug8202--01 ~ 8406--01; LB; A[J501] |
27690-Z0001 |
US $7.49 |
||
|
49400J
|
49400J
48357-T9000 Plug8202--01 ~ 8406--01; LB; B |
48357-T9000 |
US $6.19 |
||
|
49400J
|
49400J
67831-32200 Plug8112--01 ~ 8202--01; LB; A |
67831-32200 |
US $0.86 |
||
|
49400J
|
49400J
74922-09500
Plug
8112--01 ~ 8202--01; LB; B |
74922-09500 |
— | ||
|
49400J
|
49400J
27690-Z0001 Plug8202--01 ~ 8406--01; LB; A[J501] |
27690-Z0001 |
US $7.49 |
||
|
49400J
|
49400J
48357-T9000 Plug8202--01 ~ 8406--01; LB; B |
48357-T9000 |
US $6.19 |
||
|
49400J
|
49400J
67831-32200 Plug8112--01 ~ 8202--01; LB; A |
67831-32200 |
US $0.86 |
||
|
49400J
|
49400J
74922-09500
Plug
8112--01 ~ 8202--01; LB; B |
74922-09500 |
— | ||
