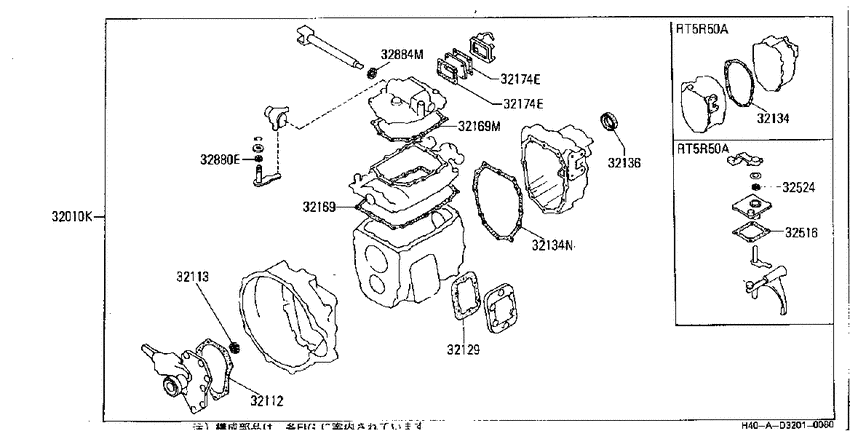

Transmission & transaxle assembly (1986-11-01 ~ ; ガスケット & シール キット; LB.FD35.(TLF.F5+TH.WT) (RS5R50A)) Diagram Nissan ATLAS/CONDOR
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- FD35
- transmission
- MT
- body
- TH
- body type
- LB/275T
- transmission/shift type
- F5
- tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32010K
|
32010K
32162-01T25 Gasket & Seal Kit-Transmission8611--01 ~ ; $SB.FD35 LB.(TH+TLF).FD35; RS5R50A |
32162-01T25 |
US $96.34 |
||
|
32010K
|
32010K
32169-J2025 Gasket & Seal Kit-Transmission8112--01 ~ 8611--01; R5+F5; RT5R41A |
32169-J2025 |
US $102.67 |
||
|
32112
|
32112
32112-01T01 Gasket-Front Cover8611--01 ~ 8905--01; FD35# |
32112-01T01 |
US $3.46 |
||
|
32112
|
32112
32112-J2000
Gasket-Front Cover
8112--01 ~ 8611--01; R5+F5 |
32112-J2000 |
— | ||
| replacement | |||||
|
32112
|
32112
321120T000 Gasket-Front Cover8112--01 ~ 8611--01; R5+F5 |
321120T000 |
US $13.44 |
||
|
32113
|
32113
3211386401 Seal-Oil, Front Cover8112--01 ~ 8611--01; R5+F5 |
3211386401 |
from US $5.76 |
||
| replacement | |||||
|
32113
|
32113
C2113-86401 Seal-oil cover8112--01 ~ 8611--01; R5+F5 |
C2113-86401 |
US $9.71 |
||
|
32113
|
32113
32219Z5004
Seal-Oil, Front Cover
8611--01 ~ 8905--01; FD35# |
32219Z5004 |
— | ||
| replacement | |||||
|
32113
|
32113
C2219-Z5004 Seal-oil cover8611--01 ~ 8905--01; FD35# |
C2219-Z5004 |
from US $13.19 |
||
|
32129
|
32129
32129-01T00
Packing-Pto Cover
8611--01 ~ 8905--01; FD35# |
32129-01T00 |
— | ||
|
32129
|
32129
32129T8000 Packing-Pto Cover8112--01 ~ 8611--01; R5+F5 |
32129T8000 |
from US $4.02 |
||
|
32134
|
32134
32134-J2000 Gasket-Rear Extension8112--01 ~ 8611--01; R5+F5 |
32134-J2000 |
US $4.18 |
||
| replacement | |||||
|
32134
|
32134
32134-0T000 Gasket-Rear Extension8112--01 ~ 8611--01; R5+F5 |
32134-0T000 |
US $5.18 |
||
|
32134
|
32134
32194-01T00
Gasket-Overdrive Gear Case
8611--01 ~ 8905--01; FD35# |
32194-01T00 |
— | ||
| replacement | |||||
|
32134
|
32134
321940T200 Gasket-Overdrive Gear Case8611--01 ~ 8905--01; FD35# |
321940T200 |
US $6.68 |
||
|
32134N
|
32134N
32134-J2000 Gasket-Rear Extension8112--01 ~ 8611--01; R5+F5 |
32134-J2000 |
US $4.18 |
||
| replacement | |||||
|
32134N
|
32134N
32134-0T000 Gasket-Rear Extension8112--01 ~ 8611--01; R5+F5 |
32134-0T000 |
US $5.18 |
||
|
32134N
|
32134N
32194-01T00
Gasket-Overdrive Gear Case
8611--01 ~ 8905--01; FD35# |
32194-01T00 |
— | ||
| replacement | |||||
|
32134N
|
32134N
321940T200 Gasket-Overdrive Gear Case8611--01 ~ 8905--01; FD35# |
321940T200 |
US $6.68 |
||
|
32136
|
32136
32136-02T00 Seal-Oil, Rear Extension8611--01 ~ 8905--01; FD35# |
32136-02T00 |
from US $9.94 |
||
|
32136
|
32136
32136-J2000 Seal-Oil, Rear Extension8112--01 ~ 8201--01; R5+F5 |
32136-J2000 |
US $6.77 |
||
|
32136
|
32136
32136J6500 Seal-Oil, Rear Extension8201--01 ~ 8611--01; R5+F5 |
32136J6500 |
from US $4.11 |
||
|
32169
|
32169
32162-01T00
Gasket-Shift Housing
8611--01 ~ 9006--01; FD35# |
32162-01T00 |
— | ||
| replacement | |||||
|
32169
|
32169
32162-0T200
Gasket-Shift Housing
8611--01 ~ 9006--01; FD35# |
32162-0T200 |
— | ||
|
32169
|
32169
32169-J2000
Gasket-Shift Housing
8112--01 ~ 8611--01; R5+F5 |
32169-J2000 |
— | ||
| replacements | |||||
|
32169
|
32169
32162-J2000
Прокладка shift
8112--01 ~ 8611--01; R5+F5 |
32162-J2000 |
— | ||
|
32169
|
32169
321620T000 Gasket-Shift Housing8112--01 ~ 8611--01; R5+F5 |
321620T000 |
US $6.51 |
||
|
32169
|
32169
32129-01T01
Gasket-Housing Cover
8611--01 ~ 9006--01; FD35# |
32129-01T01 |
— | ||
|
32169M
|
32169M
32129-01T01
Gasket-Housing Cover
8611--01 ~ 9006--01; FD35# |
32129-01T01 |
— | ||
|
32174E
|
32174E
32129-01T10
Gasket-Top Cover
8611--01 ~ 9006--01; FD35# |
32129-01T10 |
— | ||
| replacement | |||||
|
32174E
|
32174E
32129-0T210 Gasket-Housing Cover8611--01 ~ 9006--01; FD35# |
32129-0T210 |
from US $6.66 |
||
|
32174E
|
32174E
32129-01T10
Gasket-Top Cover
8611--01 ~ 9006--01; FD35# |
32129-01T10 |
— | ||
| replacement | |||||
|
32174E
|
32174E
32129-0T210 Gasket-Housing Cover8611--01 ~ 9006--01; FD35# |
32129-0T210 |
from US $6.66 |
||
|
32524
|
32524
33185-C6200 Seal-Oil, Shift Shaft8112--01 ~ 8611--01; R5+F5 |
33185-C6200 |
from US $4.47 |
||
|
32880E
|
32880E
32175-Z5000 Seal-Oil, Select Lever8611--01 ~ 9006--01; FD35# |
32175-Z5000 |
from US $2.68 |
||
|
32884M
|
32884M
32175-90002
Seal-Oil, Cross Shaft
8611--01 ~ 9006--01; FD35# |
32175-90002 |
— | ||
| replacement | |||||
|
32884M
|
32884M
32884-5T000 Seal-Oil, Cross Shaft8611--01 ~ 9006--01; FD35# |
32884-5T000 |
from US $2.74 |
||
|
32884M
|
32884M
32884-61500 Seal-Oil, Cross Shaft8112--01 ~ 8611--01; R5+F5 |
32884-61500 |
from US $1.76 |
||
