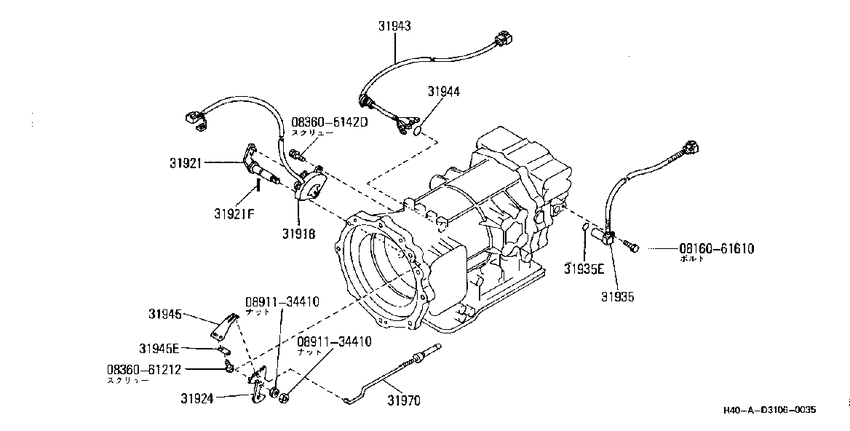

control Switch (1987-09-01 ~ ; RE4R02A) Diagram Nissan ATLAS/CONDOR
- Year
- 1987 - 1989
- Sales region
- Japan
- Engine
- FD35
- transmission
- AT
- body
- TLF
- body type
- SB/2T
- transmission/shift type
- R4
- tire
- WT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816061610
|
0816061610
08160-61610
Bolt-hexagon
|
08160-61610 |
— | ||
|
083605142D
|
083605142D
08360-5142D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5142D |
— | ||
|
0836061212
|
0836061212
08360-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61212 |
— | ||
|
0891134410
|
0891134410
08911-34410
NUT
|
08911-34410 |
— | ||
| replacement | |||||
|
0891134410
|
0891134410
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
0891134410
|
0891134410
08911-34410
NUT
|
08911-34410 |
— | ||
| replacement | |||||
|
0891134410
|
0891134410
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
31918
|
31918
31918-71X00 Switch Assy-Pnp(Inhibitor)8709--01 ~ ; FD35.AT |
31918-71X00 |
US $154.08 |
||
|
31921
|
31921
31920-41X00 Shaft Assy-Manual8709--01 ~ ; FD35.AT |
31920-41X00 |
US $24.19 |
||
|
31921
|
31921
3190641X03 Pin-Spring8709--01 ~ ; FD35.AT |
3190641X03 |
US $1.73 |
||
|
31921F
|
31921F
3190641X03 Pin-Spring8709--01 ~ ; FD35.AT |
3190641X03 |
US $1.73 |
||
|
31924
|
31924
31924-71X01 Plate Assy-Manual8709--01 ~ ; FD35.AT |
31924-71X01 |
US $22.32 |
||
|
31935
|
31935
31935-71X00 Sensor Assy-Revolution8709--01 ~ ; FD35.AT |
31935-71X00 |
US $124.42 |
||
|
31935
|
31935
3152641X05 Seal-O Ring8709--01 ~ ; FD35.AT |
3152641X05 |
US $4.03 |
||
|
31935E
|
31935E
3152641X05 Seal-O Ring8709--01 ~ ; FD35.AT |
3152641X05 |
US $4.03 |
||
|
31943
|
31943
31943-71X00 Terminal Assy8709--01 ~ 8811--01; FD35.AT |
31943-71X00 |
US $110.59 |
||
|
31943
|
31943
31943-71X02 Terminal Assy8905--01 ~ ; FD35.AT; |
31943-71X02 |
US $110.59 |
||
|
31944
|
31944
3152641X04 Seal-O Ring, Terminal8709--01 ~ ; FD35.AT |
3152641X04 |
US $3.88 |
||
|
31945
|
31945
31945-71X00 Spring-Detent8709--01 ~ ; FD35.AT |
31945-71X00 |
US $6.19 |
||
|
31945
|
31945
31437-41X03 Spacer8709--01 ~ ; FD35.AT |
31437-41X03 |
US $0.86 |
||
|
31945E
|
31945E
31437-41X03 Spacer8709--01 ~ ; FD35.AT |
31437-41X03 |
US $0.86 |
||
|
31970
|
31970
31970-71X00 Rod Assy-Parking8709--01 ~ ; FD35.AT |
31970-71X00 |
US $7.49 |
||
