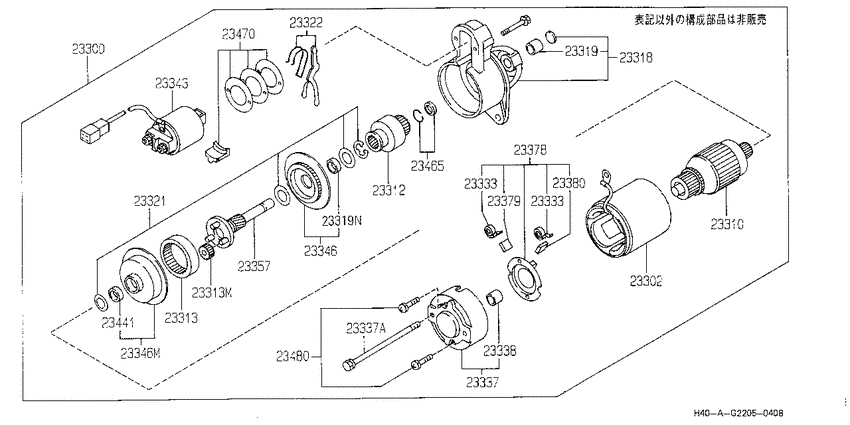

Starter motor (1990-06-01 ~ ; 日立製寒冷地仕様; NA20S) Diagram Nissan ATLAS/CONDOR
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- body
- TH
- body type
- SB/2T
- transmission/shift type
- F5
- tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-18C01 Motor Assy-Starter9006--01 ~ 9007--01; NA20S; ﾋﾀﾁ |
23300-18C01 |
US $784.46 |
||
|
23300
|
23300
23300-18C03 Motor Assy-Starter9007--01 ~ ; NA20S; ﾋﾀﾁ |
23300-18C03 |
from US $647.28 |
||
|
23300
|
23300
23300-G8400 Motor Assy-Starter9006--01 ~ ; *NA20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23300-G8400 |
US $897.74 |
||
|
23302
|
23302
23302-77A00 Yoke Assy9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23302-77A00 |
US $230.40 |
||
|
23310
|
23310
23310-77A00 Armature Assy9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23310-77A00 |
US $318.60 |
||
|
23310
|
23310
23310-D0200 Armature Assy9006--01 ~ ; NA20S; ﾋﾀﾁ |
23310-D0200 |
from US $339.40 |
||
|
23312
|
23312
23312-42L60 Pinion Assy9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23312-42L60 |
US $113.76 |
||
|
23312
|
23312
23312-D0100 Pinion Assy9006--01 ~ ; NA20S; ﾋﾀﾁ |
23312-D0100 |
US $116.06 |
||
|
23313
|
23313
23361-42L60
Gear
9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23361-42L60 |
— | ||
|
23313
|
23313
23367-42L60 Planet Gear9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23367-42L60 |
US $11.09 |
||
|
23313M
|
23313M
23367-42L60 Planet Gear9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23367-42L60 |
US $11.09 |
||
|
23318
|
23318
23318-80W00 Case Assy-Gear9007--01 ~ ; NA20S |
23318-80W00 |
US $103.97 |
||
|
23318
|
23318
23318-G8400 Case Assy-Gear9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23318-G8400 |
US $111.74 |
||
|
23318
|
23318
23318-W0402 Case Assy-Gear9006--01 ~ 9007--01; NA20S; ﾋﾀﾁ |
23318-W0402 |
US $103.97 |
||
|
23319
|
23319
23338N3300 Metal-Rear Cover9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23319
|
23319
23319-42L60 Metal-Gear Case9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23319-42L60 |
US $11.66 |
||
|
23319N
|
23319N
23319-42L60 Metal-Gear Case9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23319-42L60 |
US $11.66 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust9006--01 ~ ; NA20S; ﾋﾀﾁ |
23321-N3300 |
US $4.18 |
||
|
23321
|
23321
23369-42L60 Washer Set-Thrust9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23369-42L60 |
US $4.03 |
||
|
23322
|
23322
23322-42L60 Lever Set-Shift9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23322-42L60 |
US $13.10 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift9006--01 ~ ; NA20S; ﾋﾀﾁ |
23322-M8100 |
US $12.67 |
||
|
23333
|
23333
23333-M8000 Spring-Brush9006--01 ~ ; NA20S; ﾋﾀﾁ |
23333-M8000 |
US $6.48 |
||
|
23333
|
23333
23333-M8000 Spring-Brush9006--01 ~ ; NA20S; ﾋﾀﾁ |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-80W00 Cover Assy-Rear9006--01 ~ ; NA20S; ﾋﾀﾁ |
23337-80W00 |
US $38.45 |
||
|
23337
|
23337
23337-G8400 Cover Assy-Rear9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23337-G8400 |
US $47.23 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9006--01 ~ ; NA20S; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340N5900 Bolt-Through9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9006--01 ~ ; NA20S; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23340N5900 |
US $4.61 |
||
|
23338
|
23338
23338-16E01 METAL-REAR COVER9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23338-16E01 |
US $7.49 |
||
|
23343
|
23343
23343-18C01 Switch Assy-Magnetic9006--01 ~ ; NA20S; ﾋﾀﾁ |
23343-18C01 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
23343-18C02 Switch Assy-Magnetic9006--01 ~ ; NA20S; ﾋﾀﾁ |
23343-18C02 |
US $155.52 |
||
|
23343
|
23343
23343-G8400 Switch Assy-Magnetic9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23343-G8400 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
23343-84A06 Switch Assy-Magnetic9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23343-84A06 |
US $141.84 |
||
|
23346
|
23346
23383-42L60 Bracket Assy-Center9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23383-42L60 |
US $103.82 |
||
|
23346
|
23346
23383-42L61 Bracket Assy-Center9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23383-42L61 |
US $75.46 |
||
|
23346M
|
23346M
23383-42L61 Bracket Assy-Center9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23383-42L61 |
US $75.46 |
||
|
23357
|
23357
23357-42L60 Shaft-Pinion9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23357-42L60 |
US $134.35 |
||
|
23378
|
23378
23378-77A01 Holder Assy-Brush9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23378-77A01 |
US $44.35 |
||
|
23378
|
23378
23378-M8101 Holder Assy-Brush9006--01 ~ ; NA20S; ﾋﾀﾁ |
23378-M8101 |
US $26.21 |
||
|
23379
|
23379
23379-M0102 Brush-Minus9006--01 ~ ; NA20S; ﾋﾀﾁ |
23379-M0102 |
US $8.06 |
||
|
23379
|
23379
23379-M8001 Brush-Minus9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23379-M8001 |
US $6.19 |
||
|
23380
|
23380
23380-77A01 Brush-Plus9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23380-77A01 |
US $9.94 |
||
|
23380
|
23380
23380-M0101 Brush-Plus9006--01 ~ ; NA20S; ﾋﾀﾁ |
23380-M0101 |
US $8.06 |
||
|
23441
|
23441
23319-42L61 Metal-Gear Case9006--01 ~ ; *NA20S; ﾋﾀﾁ |
23319-42L61 |
US $10.08 |
||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion9006--01 ~ ; NA20S; ﾋﾀﾁ |
23465-80W00 |
US $7.49 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust9006--01 ~ ; *NA20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ﾖｳ |
23470-77A00 |
US $11.23 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust9006--01 ~ ; NA20S; ﾋﾀﾁ |
23470-M8001 |
US $10.08 |
||
|
23480
|
23480
23480-M0100 Screw Set9006--01 ~ ; NA20S; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
