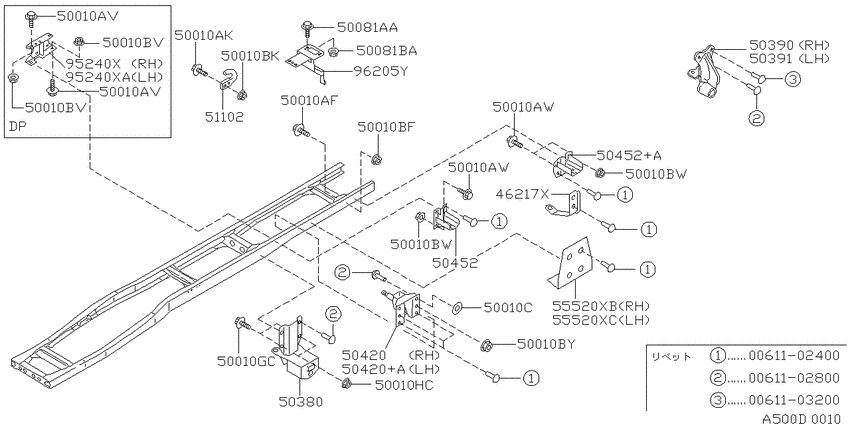

Frame (1992-11-01 ~ 1993-10-01; &フィッティング パーツ (パート 2); T.MB +DP.4WD) Diagram Nissan ATLAS/CONDOR
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- FD42
- drive
- 4WD
- grade
- VZ.S
- body
- CV
- body type
- HK.WT
- load
- 2T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0061102400
|
0061102400
00611-02400
ﾘﾍﾞﾂﾄ
|
00611-02400 |
— | ||
|
0061102800
|
0061102800
00611-02800 RIVET |
00611-02800 |
US $1.73 |
||
|
0061103200
|
0061103200
00611-03200 RIVET |
00611-03200 |
US $1.73 |
||
|
46217X
|
46217X
46217-0T002 Bracket-Rear Brake Hose9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
46217-0T002 |
US $20.16 |
||
|
50010AF
|
50010AF
01125-01534 SCREW9211--01 ~ 9507--01; T.4WD.MB.H.WT +DP.4WD; ｶﾞｾﾞﾂﾄ5THｸﾛｽ ﾄﾘﾂｹﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AF
|
50010AF
0112540304 BOLT-EGR TUBE9507--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ｶﾞｾﾞﾂﾄ5THｸﾛｽ ﾄﾘﾂｹﾖｳ |
0112540304 |
US $2.88 |
||
|
50010AK
|
50010AK
01125-01554 BOLT9211--01 ~ 9507--01; T.4WD.MB.H.WT +DP.4WD; ﾘﾔ ﾌﾂｸ ﾖｳ |
01125-01554 |
US $2.45 |
||
|
50010AK
|
50010AK
01125-42454 BOLT9507--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾘﾔ ﾌﾂｸ ﾖｳ |
01125-42454 |
US $2.45 |
||
|
50010AV
|
50010AV
01125-01534 SCREW9211--01 ~ ; DP.4WD; ﾄﾗﾆｵﾝ ﾌﾞﾗｹﾂﾄ RH&LHﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AV
|
50010AV
01125-01534 SCREW9211--01 ~ ; DP.4WD; ﾄﾗﾆｵﾝ ﾌﾞﾗｹﾂﾄ RH&LHﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AW
|
50010AW
01125-01534 SCREW9211--01 ~ 9310--01; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AW
|
50010AW
0112540304 BOLT-EGR TUBE9507--01 ~ ; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
0112540304 |
US $2.88 |
||
|
50010AW
|
50010AW
01125-01534 SCREW9211--01 ~ 9310--01; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AW
|
50010AW
0112540304 BOLT-EGR TUBE9507--01 ~ ; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
0112540304 |
US $2.88 |
||
|
50010BF
|
50010BF
0122501014 NUT9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ｶﾞｾﾞﾂﾄ5THｸﾛｽ ﾄﾘﾂｹﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BK
|
50010BK
01225-00192 NUT9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾘﾔ ﾌﾂｸ ﾖｳ |
01225-00192 |
US $1.73 |
||
|
50010BV
|
50010BV
0122501014 NUT9211--01 ~ ; DP.4WD; ﾄﾗﾆｵﾝ ﾌﾞﾗｹﾂﾄ RH&LHﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BV
|
50010BV
0122501014 NUT9211--01 ~ ; DP.4WD; ﾄﾗﾆｵﾝ ﾌﾞﾗｹﾂﾄ RH&LHﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BW
|
50010BW
0122501014 NUT9211--01 ~ 9310--01; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BW
|
50010BW
0122501014 NUT9211--01 ~ 9310--01; T.4WD.MB.H.WT +DP.4WD; RR ﾍﾙﾊﾟ-ﾗﾊﾞ- BRKT ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BY
|
50010BY
0122501014 NUT9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ABS BRKT RR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010C
|
50010C
01311-00291 WASHER-PLAIN9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ABS BRKT RR ﾖｳ |
01311-00291 |
US $2.45 |
||
|
50010GC
|
50010GC
01125-01534 SCREW9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
01125-01534 |
US $2.45 |
||
|
50010HC
|
50010HC
0122501014 NUT9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
0122501014 |
US $4.18 |
||
|
50380
|
50380
50380-0T800 Bracket Assy-Rear Spring, Front Rh9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
50380-0T800 |
US $211.68 |
||
|
50390
|
50390
50390-0T800 Bracket Assy-Rear Spring, Rear Rh9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾐｷﾞ ﾖｳ |
50390-0T800 |
US $211.68 |
||
|
50391
|
50391
50391-0T800 Bracket Assy-Rear Spring, Rear Lh9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾋﾀﾞﾘ ﾖｳ |
50391-0T800 |
US $211.68 |
||
|
50420
|
50420
50420-0T801 Bracket Assy-Rear Shock Absorber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾐｷﾞ ﾖｳ |
50420-0T801 |
US $81.07 |
||
|
50420
|
50420
50421-0T801 Bracket Assy-Rear Shock Absorber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾋﾀﾞﾘ ﾖｳ |
50421-0T801 |
US $73.58 |
||
|
50420+A
|
50420+A
50421-0T801 Bracket Assy-Rear Shock Absorber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD; ﾋﾀﾞﾘ ﾖｳ |
50421-0T801 |
US $73.58 |
||
|
50452
|
50452
50450-0T801 Bracket-Rear Helper Rubber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
50450-0T801 |
US $26.93 |
||
|
50452
|
50452
50450-0T811 Bracket-Rear Helper Rubber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
50450-0T811 |
US $26.93 |
||
|
50452+A
|
50452+A
50450-0T811 Bracket-Rear Helper Rubber9211--01 ~ ; T.4WD.MB.H.WT +DP.4WD |
50450-0T811 |
US $26.93 |
||
|
51102
|
51102
51102-T8600 Hook-Rear9110--01 ~ 9310--01; T.SB.H.WT.2T +DP +V.SB.H +CV +VC |
51102-T8600 |
US $29.95 |
||
|
95240X
|
95240X
95240-0T162 ﾌﾞﾗｹﾂﾄ,ﾄﾗﾆｵﾝ9211--01 ~ ; DP.4WD; ﾐｷﾞ ﾖｳ |
95240-0T162 |
US $149.76 |
||
|
95240X
|
95240X
95241-0T162 ﾌﾞﾗｹﾂﾄ,ﾄﾗﾆｵﾝ9211--01 ~ ; DP.4WD; ﾋﾀﾞﾘ ﾖｳ |
95241-0T162 |
US $149.76 |
||
|
95240XA
|
95240XA
95241-0T162 ﾌﾞﾗｹﾂﾄ,ﾄﾗﾆｵﾝ9211--01 ~ ; DP.4WD; ﾋﾀﾞﾘ ﾖｳ |
95241-0T162 |
US $149.76 |
