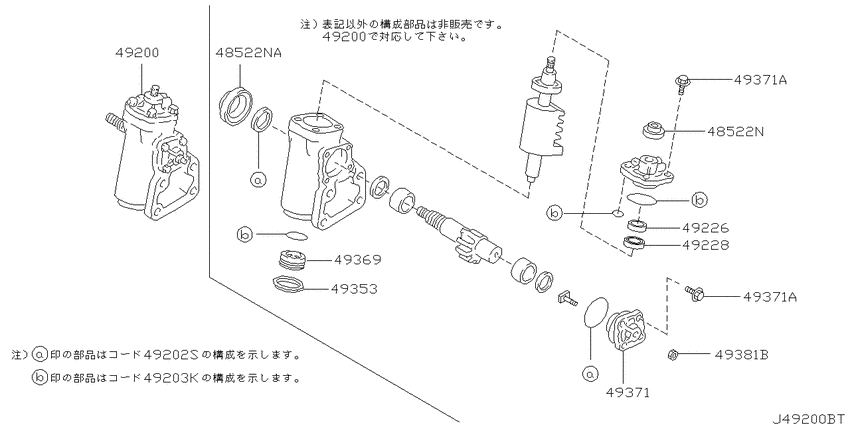

Power steering gear (1992-11-01 ~ 1993-10-01; 4WD.FD42) Diagram Nissan ATLAS/CONDOR
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- FD42
- drive
- 4WD
- grade
- VZ.S
- body
- CV
- body type
- HK.WT
- load
- 2T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48522N
|
48522N
49369-55G00 Cover-Dust9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49369-55G00 |
US $3.35 |
||
|
48522N
|
48522N
49373-0T000 Cover-Dust9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49373-0T000 |
US $11.52 |
||
|
48522NA
|
48522NA
49373-0T000 Cover-Dust9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49373-0T000 |
US $11.52 |
||
|
49200
|
49200
49200-0T300 Gear Assy-Power Steering9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49200-0T300 |
US $3,374 |
||
|
49202S
|
49202S
49321-0T026 Seal Kit-Oil, Sector Shaft9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49321-0T026 |
US $35.71 |
||
|
49203K
|
49203K
49345-0T025 Seal Kit-Pinion, Power Steering Gear9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49345-0T025 |
US $6.38 |
||
|
49226
|
49226
492650T000 Seal-Oil, Pinion9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
492650T000 |
from US $5.85 |
||
|
49228
|
49228
49254-0T000 Bearing-Pinion, Upper9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49254-0T000 |
US $24.77 |
||
|
49353
|
49353
49358-0T000 Nut-Self Lock9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49358-0T000 |
US $1.73 |
||
|
49369
|
49369
49369-0T000
Cap-Rear Cover
9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49369-0T000 |
— | ||
|
49371
|
49371
49371-0T000 Cover Assy-Sector9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49371-0T000 |
US $27.65 |
||
|
49371
|
49371
49375-0T000 Bolt-Sector Cover9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49375-0T000 |
US $0.86 |
||
|
49371A
|
49371A
49375-0T000 Bolt-Sector Cover9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49375-0T000 |
US $0.86 |
||
|
49371A
|
49371A
49375-0T000 Bolt-Sector Cover9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49375-0T000 |
US $0.86 |
||
|
49381B
|
49381B
49389-0T000 Nut-Seal, Sector Shaft9211--01 ~ ; (T.4WD+DP.4WD).FD42 |
49389-0T000 |
US $1.73 |
