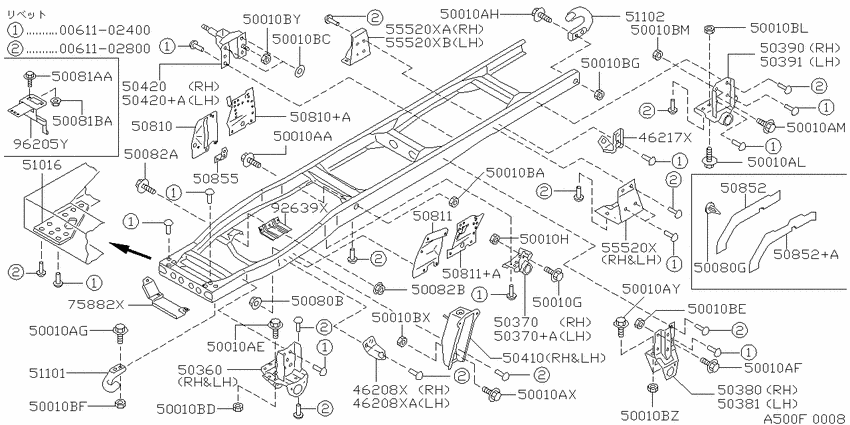

Frame (1993-10-01 ~ ; フィッティング パーツ; V.MB) Diagram Nissan ATLAS/CONDOR
- Year
- 1993 - 2012
- Sales region
- Japan
- Engine
- FD42
- drive
- 2WD
- grade
- SH.DX.A
- body
- V
- body type
- LF.HWT
- load
- 2T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0061102400
|
0061102400
00611-02400
ﾘﾍﾞﾂﾄ
|
00611-02400 |
— | ||
|
0061102800
|
0061102800
00611-02800 RIVET |
00611-02800 |
US $1.73 |
||
|
46208X
|
46208X
46208-0T000 Bracket-Front Brake Hose9310--01 ~ ; V.MB.LF.HWT; ﾐｷﾞ ﾖｳ |
46208-0T000 |
US $16.70 |
||
|
46208X
|
46208X
46209-0T000 Bracket-Front Brake Hose9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
46209-0T000 |
US $16.70 |
||
|
46208XA
|
46208XA
46209-0T000 Bracket-Front Brake Hose9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
46209-0T000 |
US $16.70 |
||
|
46217X
|
46217X
46217-0T002 Bracket-Rear Brake Hose9310--01 ~ ; V.MB.LF.HWT |
46217-0T002 |
US $20.16 |
||
|
50010AE
|
50010AE
01125-01534 SCREW9310--01 ~ 9507--01; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; FR SPR ﾏｴ RH&LH |
01125-01534 |
US $2.45 |
||
|
50010AE
|
50010AE
0112540304 BOLT-EGR TUBE9507--01 ~ ; V.MB.LF.HWT |
0112540304 |
US $2.88 |
||
|
50010AF
|
50010AF
01125-01534 SCREW9310--01 ~ 9507--01; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; RR SPR ﾏｴ RH&LH |
01125-01534 |
US $2.45 |
||
|
50010AF
|
50010AF
0112540304 BOLT-EGR TUBE9507--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; RR SPR ﾏｴ RH&LH |
0112540304 |
US $2.88 |
||
|
50010AG
|
50010AG
01125-01554 BOLT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; FR HOOK ﾖｳ |
01125-01554 |
US $2.45 |
||
|
50010AH
|
50010AH
01125-01554 BOLT9310--01 ~ 9507--01; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; RR HOOK ﾖｳ |
01125-01554 |
US $2.45 |
||
|
50010AH
|
50010AH
01125-42454 BOLT9507--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
01125-42454 |
US $2.45 |
||
|
50010AL
|
50010AL
01125-01534 SCREW9310--01 ~ 9507--01; V.MB.LF.HWT; 5TH CROSS MBR ﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010AL
|
50010AL
0112540304 BOLT-EGR TUBE9507--01 ~ ; V.MB.LF.HWT; 5TH CROSS MBR ﾖｳ |
0112540304 |
US $2.88 |
||
|
50010AM
|
50010AM
01125-01554 BOLT9310--01 ~ 9507--01; V.MB.LF.HWT; RR HOOK ﾖｳ |
01125-01554 |
US $2.45 |
||
|
50010AM
|
50010AM
01125-42454 BOLT9507--01 ~ ; V.MB.LF.HWT |
01125-42454 |
US $2.45 |
||
|
50010AX
|
50010AX
01125-01534 SCREW9310--01 ~ 9507--01; V.MB.LF.HWT |
01125-01534 |
US $2.45 |
||
|
50010AX
|
50010AX
0112540304 BOLT-EGR TUBE9507--01 ~ ; V.MB.LF.HWT |
0112540304 |
US $2.88 |
||
|
50010AY
|
50010AY
01125-01534 SCREW9310--01 ~ ; V.MB.LF.HWT; 4TH CROSS MBR |
01125-01534 |
US $2.45 |
||
|
50010BD
|
50010BD
0122501014 NUT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; FR SPR ﾏｴ RH&LH |
0122501014 |
US $4.18 |
||
|
50010BF
|
50010BF
01225-00192 NUT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; FR HOOK ﾖｳ |
01225-00192 |
US $1.73 |
||
|
50010BG
|
50010BG
01225-00192 NUT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; RR HOOK ﾖｳ |
01225-00192 |
US $1.73 |
||
|
50010BL
|
50010BL
0122501014 NUT9310--01 ~ ; V.MB.LF.HWT; 5TH CROSS MBR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BM
|
50010BM
0122501014 NUT9310--01 ~ ; V.MB.LF.HWT; RR SPR ﾌﾞﾗｹﾂﾄ RR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BX
|
50010BX
0122501014 NUT9310--01 ~ ; V.MB.LF.HWT; ABS ﾌﾞﾗｹﾂﾄ FR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BY
|
50010BY
0122501014 NUT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT; ABS BRKT RR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010BZ
|
50010BZ
0122501014 NUT9310--01 ~ ; V.MB.LF.HWT; 4TH CROSS MBR ﾖｳ |
0122501014 |
US $4.18 |
||
|
50010G
|
50010G
01125-01534 SCREW9310--01 ~ ; V.MB.LF.HWT; FR SPR ﾌﾞﾗｹﾂﾄ LHﾖｳ |
01125-01534 |
US $2.45 |
||
|
50010H
|
50010H
0122501014 NUT9310--01 ~ ; V.MB.LF.HWT; FR SPR ﾌﾞﾗｹﾂﾄ LHﾖｳ |
0122501014 |
US $4.18 |
||
|
50080B
|
50080B
0122500331 NUT-WIPER ARM9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
0122500331 |
US $1.93 |
||
|
50080G
|
50080G
0155300541 CLIP-TRIM9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
0155300541 |
from US $1.18 |
||
|
50081AA
|
50081AA
01125-01534 SCREW9310--01 ~ 9507--01; 0V.MB.LF.HWT +TW.MB.H.WT.3T.NR.DX.A +VW.MB.LF.HWT |
01125-01534 |
US $2.45 |
||
|
50081AA
|
50081AA
0112540304 BOLT-EGR TUBE9507--01 ~ ; 0V.MB.LF.HWT +TW.MB.H.WT.3T.NR.DX.A +VW.MB.LF.HWT |
0112540304 |
US $2.88 |
||
|
50081BA
|
50081BA
0122501014 NUT9310--01 ~ ; 0V.MB.LF.HWT +TW.MB.H.WT.3T.NR.DX.A +VW.MB.LF.HWT |
0122501014 |
US $4.18 |
||
|
50082A
|
50082A
01125-01534 SCREW9310--01 ~ 9507--01; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
01125-01534 |
US $2.45 |
||
|
50082A
|
50082A
0112540304 BOLT-EGR TUBE9507--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
0112540304 |
US $2.88 |
||
|
50082B
|
50082B
0122501014 NUT9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
0122501014 |
US $4.18 |
||
|
50360
|
50360
50360-0T003 Bracket Assy-Front Spring, Front9310--01 ~ ; V.MB.LF.HWT |
50360-0T003 |
US $143.42 |
||
|
50370
|
50370
50370-0T000 New Genuine Part9310--01 ~ ; V.MB.LF.HWT; ﾐｷﾞ ﾖｳ |
50370-0T000 |
US $143.42 |
||
|
50370
|
50370
50371-0T000 Bracket Assy-Front Spring, Rear9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
50371-0T000 |
US $143.42 |
||
|
50370+A
|
50370+A
50371-0T000 Bracket Assy-Front Spring, Rear9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
50371-0T000 |
US $143.42 |
||
|
50380
|
50380
50380-0T503 Bracket Assy-Rear Spring, Front Rh9310--01 ~ ; V.MB.LF.HWT; ﾐｷﾞ ﾖｳ |
50380-0T503 |
US $211.68 |
||
|
50381
|
50381
50381-0T503 Bracket Assy-Rear Spring, Front Lh9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
50381-0T503 |
US $211.68 |
||
|
50390
|
50390
50390-0T502 Bracket Assy-Rear Spring, Rear Rh9310--01 ~ ; V.MB.LF.HWT |
50390-0T502 |
US $211.68 |
||
|
50391
|
50391
50391-0T502 Bracket Assy-Rear Spring, Rear Lh9310--01 ~ ; V.MB.LF.HWT |
50391-0T502 |
US $211.68 |
||
|
50410
|
50410
50410-0T003 Bracket Assy-Front Shock Absrber9310--01 ~ ; V.MB.LF.HWT; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
50410-0T003 |
US $126 |
||
|
50420
|
50420
50420-0T801 Bracket Assy-Rear Shock Absorber9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
50420-0T801 |
US $81.07 |
||
|
50420
|
50420
50421-0T801 Bracket Assy-Rear Shock Absorber9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
50421-0T801 |
US $73.58 |
||
|
50420+A
|
50420+A
50421-0T801 Bracket Assy-Rear Shock Absorber9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
50421-0T801 |
US $73.58 |
||
|
50852
|
50852
50852-0T001 Seal-Side, Rubber9310--01 ~ ; V.MB.LF.HWT; ﾐｷﾞ ﾖｳ |
50852-0T001 |
US $33.26 |
||
|
50852
|
50852
50853-0T001 Seal-Side, Rubber9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
50853-0T001 |
US $33.26 |
||
|
50852+A
|
50852+A
50853-0T001 Seal-Side, Rubber9310--01 ~ ; V.MB.LF.HWT; ﾋﾀﾞﾘ ﾖｳ |
50853-0T001 |
US $33.26 |
||
|
50855
|
50855
50855-0T001 Bracket-Side Seal9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
50855-0T001 |
US $10.22 |
||
|
51016
|
51016
51016-0T002 Gusset-1St Cross Member9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
51016-0T002 |
US $43.92 |
||
|
51101
|
51101
51101-T8001 Hook Assy-Front9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
51101-T8001 |
US $48.10 |
||
|
51102
|
51102
51102-T8000 Hook-Rear9310--01 ~ ; V.MB.LF.HWT +VW.MB.LF.HWT |
51102-T8000 |
US $33.12 |
||
|
55520X
|
55520X
55520-0T500 Bracket Assy-Bumper Rubber9310--01 ~ ; V.MB.LF.HWT |
55520-0T500 |
US $59.18 |
||
|
55520X
|
55520X
55520-1T904
Bracket Assy-Bumper Rubber
9310--01 ~ ; V.MB.LF.HWT |
55520-1T904 |
— | ||
|
55520X
|
55520X
55521-1T904 Bracket Assy-Bumper Rubber9310--01 ~ ; V.MB.LF.HWT |
55521-1T904 |
US $59.18 |
||
|
55520XA
|
55520XA
55520-1T904
Bracket Assy-Bumper Rubber
9310--01 ~ ; V.MB.LF.HWT |
55520-1T904 |
— | ||
|
55520XB
|
55520XB
55521-1T904 Bracket Assy-Bumper Rubber9310--01 ~ ; V.MB.LF.HWT |
55521-1T904 |
US $59.18 |
||
|
75882X
|
75882X
75882-0T102 Guard-Splash, Front Under Cover9310--01 ~ ; V.MB.LF.HWT |
75882-0T102 |
US $73.73 |
||
|
92639X
|
92639X
92639-0T100 ｶﾊﾞ-,ｻｲﾄﾞ9310--01 ~ ; %V.MB.LF.HWT +TW.MB.H.WT +VW.MB.LF.HWT |
92639-0T100 |
US $33.26 |
||
|
96205Y
|
96205Y
96203-T8000 Clamp9310--01 ~ 9412--01; 0V.MB.LF.HWT +TW.MB.H.WT.3T.NR.DX.A +VW.MB.LF.HWT |
96203-T8000 |
US $88.27 |
||
|
96205Y
|
96205Y
96220-0T010 ﾌﾞﾗｹﾂﾄ,ﾗｲｾﾝｽ ﾌﾟﾚ-ﾄ9412--01 ~ ; 0V.MB.LF.HWT +TW.MB.H.WT.3T.NR.DX.A +VW.MB.LF.HWT |
96220-0T010 |
US $87.70 |
