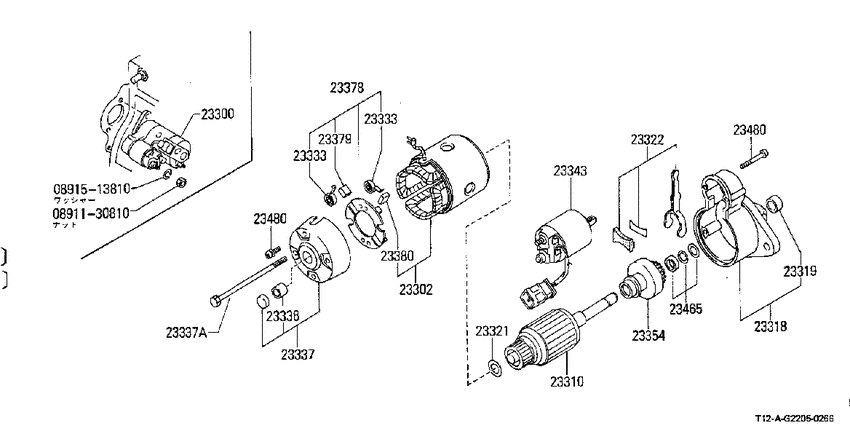

Starter motor (1985-10-01 ~ 1988-01-01; 三菱標準; CA18T.MT) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- MT
- grade
- XT
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891130810
|
0891130810
08911-30810
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-30810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-03E11 MOTOR ASSY-STARTER8510--01 ~ 8801--01; CA18T.MT; ﾐﾂﾋﾞｼ |
23300-03E11 |
US $758.98 |
||
|
23300
|
23300
23300-04E10 MOTOR ASSY-STARTER8510--01 ~ 8609--01; *(CA18I.AT+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23300-04E10 |
US $654.19 |
||
|
23300
|
23300
01121-00981 BOLT8510--01 ~ 8801--01; CA18T.MT+CA18DT.MT |
01121-00981 |
US $2.45 |
||
|
23302
|
23302
23302-04E10 YOKE ASSY8510--01 ~ 8609--01; *(CA18I.AT+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23302-04E10 |
US $211.68 |
||
|
23302
|
23302
23302-D0210 Yoke Assy8512--01 ~ 8801--01; CA18T.MT; ﾐﾂﾋﾞｼ |
23302-D0210 |
US $259.20 |
||
|
23310
|
23310
23310-42L11 Armature Assy8510--01 ~ 8801--01; CA18T.MT; ﾐﾂﾋﾞｼ |
23310-42L11 |
US $293.11 |
||
|
23310
|
23310
23310-U7511 Armature Assy8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23310-U7511 |
US $389.40 |
||
| replacement | |||||
|
23310
|
23310
23310-U7512 Armature Assy8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23310-U7512 |
US $463.03 |
||
|
23318
|
23318
23318-03E11 CASE ASSY-GEAR8510--01 ~ 8801--01; CA18T.MT; ﾐﾂﾋﾞｼ |
23318-03E11 |
US $106.99 |
||
|
23318
|
23318
23318-04E10 CASE ASSY-GEAR8510--01 ~ 8609--01; *(CA18I.AT+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23318-04E10 |
US $88.85 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case8510--01 ~ 8801--01; CA18T.MT+CA18DT; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23319
|
23319
23319W1710 Bearing-Gear Case8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23319W1710 |
US $15.98 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23322
|
23322
23322-N5910 Lever Set-Shift8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23322-N5910 |
US $9.36 |
||
|
23333
|
23333
23333M1510 Spring-Brush8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333M1510 Spring-Brush8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23337-N5910 Cover Assy-Rear8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23337-N5910 |
US $33.55 |
||
|
23337
|
23337
23340-M8010 Bolt-Through8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337
|
23337
23340-U7510 Bolt-Through8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23340-U7510 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-U7510 Bolt-Through8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23340-U7510 |
US $4.18 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23338
|
23338
23338W1710 Bearing-Rear Cover8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23338W1710 |
from US $13.71 |
||
|
23343
|
23343
23343-04E10 SWITCH ASSY-MAGNETIC8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23343-04E10 |
US $129.02 |
||
|
23343
|
23343
23343M8011 Switch Assy-Magnetic8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23343M8011 |
US $126.43 |
||
|
23343
|
23343
23340-N5915 Bolt8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23340-N5915 |
US $2.45 |
||
|
23354
|
23354
23354-D0210 Clutch Assy8510--01 ~ 8801--01; CA18T.MT; ﾐﾂﾋﾞｼ |
23354-D0210 |
US $165.60 |
||
|
23354
|
23354
23354-N5912 Clutch Assy8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23354-N5912 |
US $276.48 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23378-M8011 |
from US $37.87 |
||
|
23378
|
23378
23378N5911 Holder Assy-Brush8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23378N5911 |
US $35.71 |
||
|
23379
|
23379
23380M8311 Brush-Minus8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380M8310 Brush-Plus8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23359-N5911 Ring-Snap8510--01 ~ 8609--01; *(CA16S+CA18I+CA18T); ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23359-N5911 |
US $7.34 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion8510--01 ~ 8801--01; CA16S+CA18I+CA18T; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23480
|
23480
23480-M0100 Screw Set8510--01 ~ ; ALL; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set8510--01 ~ ; *ALL; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23480-M0110 |
US $9.36 |
||
|
23480
|
23480
23480-M0100 Screw Set8510--01 ~ ; ALL; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set8510--01 ~ ; *ALL; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23480-M0110 |
US $9.36 |
||
