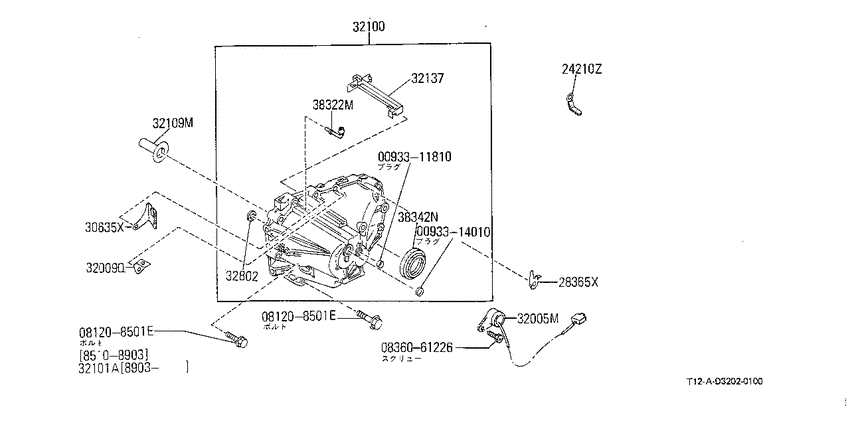

Transmission case (1985-10-01 ~ 1988-01-01; RS5F50A(ケース); (CA18T+CA18DT).MT) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- MT
- grade
- XT
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093311810
|
0093311810
00933-11810
PLUG-TAPER
|
00933-11810 |
— | ||
|
0093314010
|
0093314010
00933-14010 PLUG-WELCH |
00933-14010 |
US $1.73 |
||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
081208501E
|
081208501E
08120-8501E
Bolt-hexagon
|
08120-8501E |
— | ||
|
0836061226
|
0836061226
08360-61226
SCREW
|
08360-61226 |
— | ||
|
24210Z
|
24210Z
24210-89922 Clip-Wire8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
24210-89922 |
US $3.46 |
||
|
28365X
|
28365X
28365-71E00 TERMINAL-EARTH8709--01 ~ 8801--01; (CA18T+CA18DT).MT |
28365-71E00 |
US $0.86 |
||
|
30635X
|
30635X
30635-02Y10 Bracket-Clutch Hose8510--01 ~ 8801--01; CA18T.MT |
30635-02Y10 |
US $35.71 |
||
|
32005M
|
32005M
32005-08E03 SWITCH ASSY-POSITION8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32005-08E03 |
US $39.31 |
||
|
32009Q
|
32009Q
32009-D4000 Clip8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32009-D4000 |
US $5.33 |
||
| replacement | |||||
|
32009Q
|
32009Q
32009-51E11
Bracket-switch connector
8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32009-51E11 |
— | ||
|
32100
|
32100
32100-D5000 Case Assy-Transmission8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32100-D5000 |
US $409.22 |
||
| replacement | |||||
|
32100
|
32100
32100-D5004
Case assy-transmission
8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32100-D5004 |
— | ||
|
32109M
|
32109M
32106-03E02 Channel-Oil, Input Shaft Rear8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32106-03E02 |
US $2.36 |
||
|
32137
|
32137
32107-03E01 GUTTER-OIL,ADAPTER8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32107-03E01 |
US $5.18 |
||
|
32802
|
32802
32803-03E00 BUSH-FORK SHAFT8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
32803-03E00 |
US $2.45 |
||
|
38322M
|
38322M
38322-50A02 Breather-Transmission Case8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
38322-50A02 |
US $19.15 |
||
|
38342N
|
38342N
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE8510--01 ~ 8801--01; (CA18T+CA18DT).MT |
3834203E00 |
US $10.04 |
||
