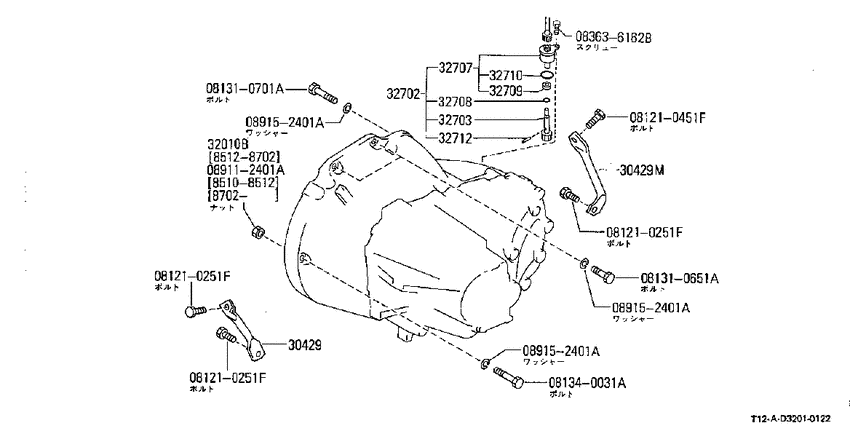

Transmission & transaxle assembly (1985-10-01 ~ 1988-01-01; &RS5F50A(フィッティングパーツ); (CA18T+CA18DT).MT) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- MT
- grade
- XT
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210251F
|
081210251F
08121-0251F
Bolt-hexagon
|
08121-0251F |
— | ||
|
081210451F
|
081210451F
08121-0451F
Bolt-hexagon
|
08121-0451F |
— | ||
|
081310651A
|
081310651A
08131-0651A
Bolt-hexagon
|
08131-0651A |
— | ||
|
081310701A
|
081310701A
08131-0701A
Bolt-hexagon
|
08131-0701A |
— | ||
|
081340031A
|
081340031A
08134-0031A
Bolt-hexagon
|
08134-0031A |
— | ||
|
083636162B
|
083636162B
083636162B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636162B |
— | ||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $1.48 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
30429
|
30429
30431-03E01 Gusset-Transmission To Engine8510--01 ~ 8801--01; (CA18T+CA18DT).MT; ﾌﾛﾝﾄ ﾖｳ |
30431-03E01 |
US $23.62 |
||
|
30429
|
30429
30441-03E00 Gusset-Transmission To Engine8510--01 ~ 8801--01; (CA18T+CA18DT).MT; ﾘﾔ ﾖｳ |
30441-03E00 |
US $23.62 |
||
|
30429M
|
30429M
30441-03E00 Gusset-Transmission To Engine8510--01 ~ 8801--01; (CA18T+CA18DT).MT; ﾘﾔ ﾖｳ |
30441-03E00 |
US $23.62 |
||
|
32010B
|
32010B
32133-06E00
NUT
8512--01 ~ 8702--01; MT |
32133-06E00 |
— | ||
|
32702
|
32702
32702-05E31
PINION ASSY-SPEEDOMETER
8510--01 ~ 8606--01; (CA18T+CA18DT).MT; 31T |
32702-05E31 |
— | ||
| replacement | |||||
|
32702
|
32702
32702-16E11 PINION ASSY-SPEEDOMETER8510--01 ~ 8606--01; (CA18T+CA18DT).MT; 31T |
32702-16E11 |
US $28.14 |
||
|
32702
|
32702
32702-16E11 PINION ASSY-SPEEDOMETER8606--01 ~ 8801--01; (CA18T+CA18DT).MT; 31T |
32702-16E11 |
US $28.14 |
||
|
32703
|
32703
32703-05E31 PINION-SPEEDOMETER8510--01 ~ 8801--01; (CA18T+CA18DT).MT; 31T |
32703-05E31 |
US $18.14 |
||
|
32707
|
32707
32707-05E00 SLEEVE-SPEEDOMETER PINION8510--01 ~ 8606--01; (CA18T+CA18DT).MT |
32707-05E00 |
US $15.70 |
||
|
32707
|
32707
32707-16E00 SLEEVE-SPEEDOMETER PINION8606--01 ~ 8801--01; (CA18T+CA18DT).MT |
32707-16E00 |
US $15.70 |
||
|
32708
|
32708
32713-M8001 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.61 |
32713-M8001 |
US $0.82 |
||
|
32708
|
32708
32713-M8002 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.67 |
32713-M8002 |
US $0.86 |
||
|
32708
|
32708
32713-M8003 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.73 |
32713-M8003 |
US $0.86 |
||
|
32708
|
32708
32713-M8004 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.79 |
32713-M8004 |
US $0.86 |
||
|
32708
|
32708
32713-M8005 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.85 |
32713-M8005 |
US $0.86 |
||
|
32708
|
32708
32713-M8006 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.91 |
32713-M8006 |
US $0.86 |
||
|
32708
|
32708
32713-M8007 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=0.97 |
32713-M8007 |
US $0.86 |
||
|
32708
|
32708
32713-M8008 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=1.03 |
32713-M8008 |
US $0.86 |
||
|
32708
|
32708
32713-M8009 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=1.09 |
32713-M8009 |
US $0.86 |
||
|
32708
|
32708
32713-M8010 Washer-Speedometer Pinion8510--01 ~ ; MT; SELECT T=1.15 |
32713-M8010 |
US $0.86 |
||
|
32709
|
32709
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ ; CA16S+CA18#.MT; |
3270958S00 |
from US $0.91 |
||
|
32710
|
32710
32710M8000 Seal-O Ring, Speedometer Pinion8510--01 ~ ; MT |
32710M8000 |
US $2.78 |
||
|
32712
|
32712
3287314600 Pin-Retainer, Speedometer Pinion8510--01 ~ ; MT; |
3287314600 |
US $2.21 |
||
