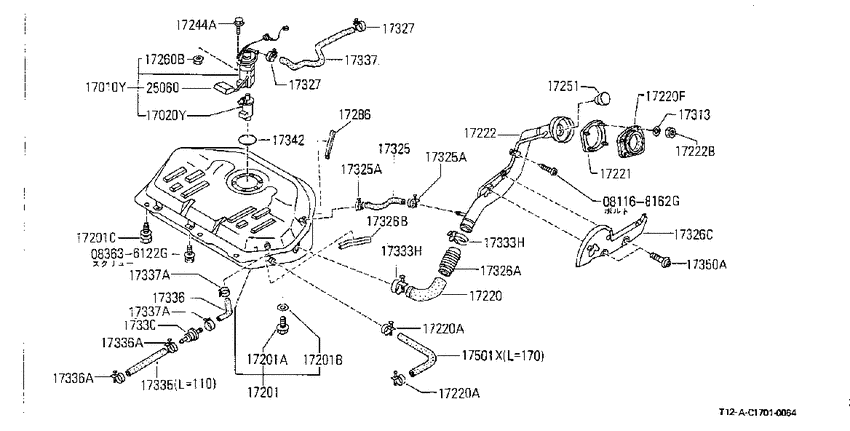

Fuel tank (1985-10-01 ~ ; CA18#) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- AT
- grade
- XT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168162G
|
081168162G
081168162G Bolt-hexagon |
081168162G |
US $3.06 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
17010Y
|
17010Y
17040-D4202 Pump Assy-Fuel8510--01 ~ 8801--01; CA18T |
17040-D4202 |
US $775.97 |
||
|
17020Y
|
17020Y
17042-D4201 Pump-fuel8510--01 ~ 8801--01; CA18T |
17042-D4201 |
US $615.96 |
||
|
17201
|
17201
17202-D4213 Tank Assy-Fuel8510--01 ~ ; CA18# |
17202-D4213 |
US $986.95 |
||
|
17201
|
17201
01125-00062 Plug-Drain8510--01 ~ ; ALL |
01125-00062 |
US $3.06 |
||
|
17201
|
17201
17232-S0160
Packing-Drain Plug
8510--01 ~ ; ALL |
17232-S0160 |
— | ||
| replacement | |||||
|
17201
|
17201
17232-79900 Packing-Drain Plug8510--01 ~ ; ALL |
17232-79900 |
US $3.06 |
||
|
17201
|
17201
01121-00911 BOLT8510--01 ~ 8801--01; ALL |
01121-00911 |
US $3.06 |
||
|
17201
|
17201
01121-02851 BOLT8801--01 ~ ; ALL |
01121-02851 |
US $2.08 |
||
|
17201A
|
17201A
01125-00062 Plug-Drain8510--01 ~ ; ALL |
01125-00062 |
US $3.06 |
||
|
17201B
|
17201B
17232-S0160
Packing-Drain Plug
8510--01 ~ ; ALL |
17232-S0160 |
— | ||
| replacement | |||||
|
17201B
|
17201B
17232-79900 Packing-Drain Plug8510--01 ~ ; ALL |
17232-79900 |
US $3.06 |
||
|
17201C
|
17201C
01121-00911 BOLT8510--01 ~ 8801--01; ALL |
01121-00911 |
US $3.06 |
||
|
17201C
|
17201C
01121-02851 BOLT8801--01 ~ ; ALL |
01121-02851 |
US $2.08 |
||
|
17220
|
17220
17228-16E00 HOSE-FILLER8510--01 ~ ; ALL |
17228-16E00 |
US $34.27 |
||
|
17220
|
17220
01555-00191 CLAMP8510--01 ~ ; CA18# |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17220
|
17220
0155500801 CLAMP8510--01 ~ ; CA18# |
0155500801 |
US $3.06 |
||
|
17220
|
17220
17240-01E01 GROMMET-FILLER TUBE8510--01 ~ ; ALL |
17240-01E01 |
US $26.06 |
||
|
17220A
|
17220A
01555-00191 CLAMP8510--01 ~ ; CA18# |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17220A
|
17220A
0155500801 CLAMP8510--01 ~ ; CA18# |
0155500801 |
US $3.06 |
||
|
17220A
|
17220A
01555-00191 CLAMP8510--01 ~ ; CA18# |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17220A
|
17220A
0155500801 CLAMP8510--01 ~ ; CA18# |
0155500801 |
US $3.06 |
||
|
17220F
|
17220F
17240-01E01 GROMMET-FILLER TUBE8510--01 ~ ; ALL |
17240-01E01 |
US $26.06 |
||
|
17221
|
17221
17241-01E01
PLATE-HOSE GROMMET
8510--01 ~ ; ALL |
17241-01E01 |
— | ||
|
17222
|
17222
17221-01E02 NECK ASSY-FILLER8510--01 ~ 8511--01; ALL |
17221-01E02 |
US $125.86 |
||
|
17222
|
17222
17221-28E00 NECK ASSY-FILLER8707--01 ~ ; ALL |
17221-28E00 |
US $180 |
||
|
17222
|
17222
17221-D4000
Neck Assy-Filler
8511--01 ~ 8707--01; ALL |
17221-D4000 |
— | ||
|
17222
|
17222
0122100261 NUT8609--01 ~ ; ALL |
0122100261 |
US $2.36 |
||
|
17222B
|
17222B
0122100261 NUT8609--01 ~ ; ALL |
0122100261 |
US $2.36 |
||
|
17244A
|
17244A
0143600291 SCREW8510--01 ~ ; CA18# |
0143600291 |
US $2.21 |
||
|
17251
|
17251
17251-79915
Cap Assy-Filler
8704--01 ~ ; ALL; |
17251-79915 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler8704--01 ~ ; ALL; |
1725179920 |
from US $33.13 |
||
|
17251
|
17251
17251-V5000
Cap Assy-Filler
8510--01 ~ 8603--01; ALL |
17251-V5000 |
— | ||
|
17251
|
17251
17251-V5001
Cap Assy-Filler
8603--01 ~ 8704--01; ALL |
17251-V5001 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler8603--01 ~ 8704--01; ALL |
1725179920 |
from US $33.13 |
||
|
17260B
|
17260B
74868-01E00 CUSHION-RUBBER8510--01 ~ ; CA18# |
74868-01E00 |
US $8.35 |
||
|
17286
|
17286
17285-28E05 PROTECTOR-FUEL TANK8602--01 ~ ; CA18#; L=120S/#76922-01A02 |
17285-28E05 |
US $3.89 |
||
| replacement | |||||
|
17286
|
17286
79923-4M400 Welt-Rear Seat Back8602--01 ~ ; CA18#; L=120S/#76922-01A02 |
79923-4M400 |
US $6.91 |
||
|
17286
|
17286
17286-04A10 Welt-Fuel Tank8510--01 ~ 8602--01; CA18#; L=130S/#76922-01A02 |
17286-04A10 |
US $3.46 |
||
| replacement | |||||
|
17286
|
17286
79923-4M400 Welt-Rear Seat Back8510--01 ~ 8602--01; CA18#; L=130S/#76922-01A02 |
79923-4M400 |
US $6.91 |
||
|
17313
|
17313
01311-00831 WASHER-SEALING8510--01 ~ 8609--01; ALL; [K202] |
01311-00831 |
US $1.73 |
||
|
17325
|
17325
17226-01E00 HOSE-VENTILATION8510--01 ~ ; ALL |
17226-01E00 |
US $12.10 |
||
|
17325
|
17325
01555-00391
CLAMP-HOSE
8510--01 ~ ; ALL |
01555-00391 |
— | ||
| replacement | |||||
|
17325
|
17325
0155500841 CLIP8510--01 ~ ; ALL |
0155500841 |
from US $1.37 |
||
|
17325A
|
17325A
01555-00391
CLAMP-HOSE
8510--01 ~ ; ALL |
01555-00391 |
— | ||
| replacement | |||||
|
17325A
|
17325A
0155500841 CLIP8510--01 ~ ; ALL |
0155500841 |
from US $1.37 |
||
|
17325A
|
17325A
01555-00391
CLAMP-HOSE
8510--01 ~ ; ALL |
01555-00391 |
— | ||
| replacement | |||||
|
17325A
|
17325A
0155500841 CLIP8510--01 ~ ; ALL |
0155500841 |
from US $1.37 |
||
|
17326A
|
17326A
17229-01E00 PROTECTOR-FILLER HOSE8510--01 ~ ; ALL |
17229-01E00 |
US $17.89 |
||
|
17326B
|
17326B
17285-28E00 PROTECTOR8510--01 ~ ; ALL |
17285-28E00 |
US $4.03 |
||
| replacement | |||||
|
17326B
|
17326B
79923-4M400 Welt-Rear Seat Back8510--01 ~ ; ALL |
79923-4M400 |
US $6.91 |
||
|
17326C
|
17326C
17281-01E01 PROTECTOR8510--01 ~ ; ALL |
17281-01E01 |
US $10.37 |
||
|
17327
|
17327
16439-N4710
Clamp-Hose
8510--01 ~ ; CA18# |
16439-N4710 |
— | ||
| replacement | |||||
|
17327
|
17327
1643953A00 Clamp-Hose8510--01 ~ ; CA18# |
1643953A00 |
from US $2.44 |
||
|
17327
|
17327
16439-N4710
Clamp-Hose
8510--01 ~ ; CA18# |
16439-N4710 |
— | ||
| replacement | |||||
|
17327
|
17327
1643953A00 Clamp-Hose8510--01 ~ ; CA18# |
1643953A00 |
from US $2.44 |
||
|
17330
|
17330
17330-D0100 Valve Assy-Fuel Check8510--01 ~ ; ALL |
17330-D0100 |
from US $42 |
||
|
17333H
|
17333H
01555-00311
CLAMP-HOSE
8510--01 ~ ; ALL |
01555-00311 |
— | ||
| replacement | |||||
|
17333H
|
17333H
0155500951 CLAMP8510--01 ~ ; ALL |
0155500951 |
from US $2.74 |
||
|
17333H
|
17333H
01555-00311
CLAMP-HOSE
8510--01 ~ ; ALL |
01555-00311 |
— | ||
| replacement | |||||
|
17333H
|
17333H
0155500951 CLAMP8510--01 ~ ; ALL |
0155500951 |
from US $2.74 |
||
|
17335
|
17335
A7335U0110 Hose-Evaporation8510--01 ~ ; ALL; L=110 02173-01120 |
A7335U0110 |
US $43.19 |
||
|
17336
|
17336
17333-01E01 HOSE-EVAPORATION8510--01 ~ ; ALL |
17333-01E01 |
US $5.04 |
||
|
17336
|
17336
01555-00411
CLAMP-HOSE
8510--01 ~ 8605--01; ALL |
01555-00411 |
— | ||
| replacement | |||||
|
17336
|
17336
0155500771 CLIP8510--01 ~ 8605--01; ALL |
0155500771 |
US $2.78 |
||
|
17336
|
17336
01555-00441 CLAMP8605--01 ~ ; ALL |
01555-00441 |
US $2.45 |
||
| replacement | |||||
|
17336
|
17336
01555-01051 CAP8605--01 ~ ; ALL |
01555-01051 |
US $2.45 |
||
|
17336A
|
17336A
01555-00411
CLAMP-HOSE
8510--01 ~ 8605--01; ALL |
01555-00411 |
— | ||
| replacement | |||||
|
17336A
|
17336A
0155500771 CLIP8510--01 ~ 8605--01; ALL |
0155500771 |
US $2.78 |
||
|
17336A
|
17336A
01555-00441 CLAMP8605--01 ~ ; ALL |
01555-00441 |
US $2.45 |
||
| replacement | |||||
|
17336A
|
17336A
01555-01051 CAP8605--01 ~ ; ALL |
01555-01051 |
US $2.45 |
||
|
17336A
|
17336A
01555-00411
CLAMP-HOSE
8510--01 ~ 8605--01; ALL |
01555-00411 |
— | ||
| replacement | |||||
|
17336A
|
17336A
0155500771 CLIP8510--01 ~ 8605--01; ALL |
0155500771 |
US $2.78 |
||
|
17336A
|
17336A
01555-00441 CLAMP8605--01 ~ ; ALL |
01555-00441 |
US $2.45 |
||
| replacement | |||||
|
17336A
|
17336A
01555-01051 CAP8605--01 ~ ; ALL |
01555-01051 |
US $2.45 |
||
|
17337
|
17337
17556-02E01 HOSE-BREATHER8510--01 ~ ; CA18# |
17556-02E01 |
US $18.14 |
||
| replacement | |||||
|
17337
|
17337
A7556-02E01
Hose-breather
8510--01 ~ ; CA18# |
A7556-02E01 |
— | ||
|
17337
|
17337
16439-N2100
Clamp-Hose
8510--01 ~ ; ALL |
16439-N2100 |
— | ||
| replacement | |||||
|
17337
|
17337
16439N210A Clamp-Hose8510--01 ~ ; ALL |
16439N210A |
from US $1.22 |
||
|
17337A
|
17337A
16439-N2100
Clamp-Hose
8510--01 ~ ; ALL |
16439-N2100 |
— | ||
| replacement | |||||
|
17337A
|
17337A
16439N210A Clamp-Hose8510--01 ~ ; ALL |
16439N210A |
from US $1.22 |
||
|
17337A
|
17337A
16439-N2100
Clamp-Hose
8510--01 ~ ; ALL |
16439-N2100 |
— | ||
| replacement | |||||
|
17337A
|
17337A
16439N210A Clamp-Hose8510--01 ~ ; ALL |
16439N210A |
from US $1.22 |
||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge8510--01 ~ ; CA18# |
1734201A00 |
from US $16.50 |
||
|
17350A
|
17350A
01461-00011 SCREW8510--01 ~ ; ALL |
01461-00011 |
US $1.73 |
||
|
17501X
|
17501X
A874220030 Hose-Fuel8510--01 ~ ; CA18#; L=170 08740-17031 |
A874220030 |
from US $37.68 |
||
|
25060
|
25060
25060-D4200 Gauge Assy-Unit, Fuel Tank8510--01 ~ ; CA18#; ｻﾞﾝﾘﾖｳ ｹｲｺｸﾄｳ ﾂｷ |
25060-D4200 |
US $240.48 |
||
| replacement | |||||
|
25060
|
25060
B5060-D4200
Gauge assy-unit,fuel tank
8510--01 ~ ; CA18#; ｻﾞﾝﾘﾖｳ ｹｲｺｸﾄｳ ﾂｷ |
B5060-D4200 |
— | ||
