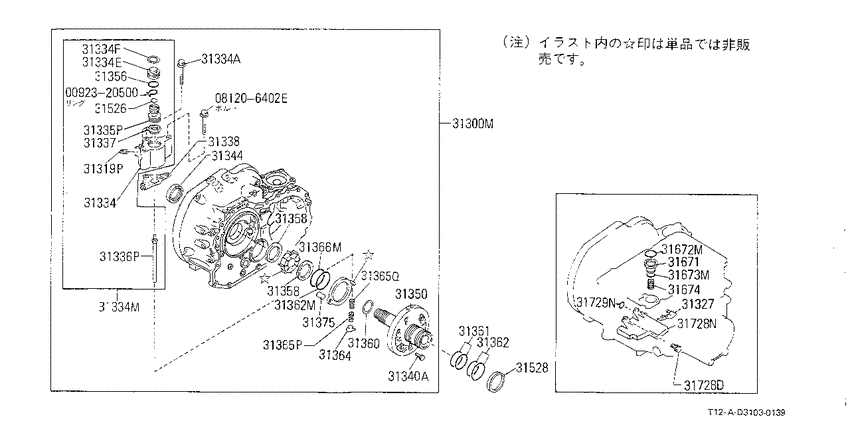

Oil pump & clutch (1985-10-01 ~ ; RL4F02A (ﾊｳｼﾞﾝｸﾞ&ｵｲﾙﾎﾟﾝﾌﾟ); CA18#.AT) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- AT
- grade
- XT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092320500
|
0092320500
00923-20500
ﾋﾟﾝ,ｽﾅﾂﾌﾟ
|
00923-20500 |
— | ||
|
081206402E
|
081206402E
08120-6402E
Bolt-hexagon
|
08120-6402E |
— | ||
|
31300M
|
31300M
31340-21X10 Housing Assy-Converter, W/oil Pump8510--01 ~ 8706--01; (CA18I+CA18T).AT |
31340-21X10 |
US $682.51 |
||
|
31300M
|
31300M
31340-21X18 Housing Assy-Converter, W/oil Pump8706--01 ~ 8801--01; (CA18I+CA18T).AT |
31340-21X18 |
US $682.51 |
||
|
31319P
|
31319P
31319-X0100 Plug-Thread, Square Head8510--01 ~ ; CA18#.AT |
31319-X0100 |
US $2.45 |
||
|
31327
|
31327
31327-21X00 Plate-Baffle8510--01 ~ ; CA18#.AT |
31327-21X00 |
US $4.18 |
||
|
31334
|
31334
31334-21X01 Cylinder-Control8510--01 ~ ; CA18#.AT |
31334-21X01 |
US $33.84 |
||
|
31334
|
31334
01121-02001 BOLT8510--01 ~ ; CA18#.AT |
01121-02001 |
US $1.73 |
||
|
31334
|
31334
31337-21X02 Plug-Control Cylinder8510--01 ~ ; CA18#.AT |
31337-21X02 |
US $4.18 |
||
|
31334
|
31334
01542-00011 RING-SNAP8510--01 ~ ; CA18#.AT |
01542-00011 |
US $1.73 |
||
|
31334
|
31334
31330-21X02 Cylinder Assy-Control8510--01 ~ ; CA18#.AT |
31330-21X02 |
US $81.07 |
||
|
31334A
|
31334A
01121-02001 BOLT8510--01 ~ ; CA18#.AT |
01121-02001 |
US $1.73 |
||
|
31334E
|
31334E
31337-21X02 Plug-Control Cylinder8510--01 ~ ; CA18#.AT |
31337-21X02 |
US $4.18 |
||
|
31334F
|
31334F
01542-00011 RING-SNAP8510--01 ~ ; CA18#.AT |
01542-00011 |
US $1.73 |
||
|
31334M
|
31334M
31330-21X02 Cylinder Assy-Control8510--01 ~ ; CA18#.AT |
31330-21X02 |
US $81.07 |
||
|
31335P
|
31335P
31334-21X02 Piston-Control8510--01 ~ ; CA18#.AT |
31334-21X02 |
US $13.82 |
||
|
31336P
|
31336P
31336-21X04 Rod-Control8510--01 ~ ; CA18#.AT |
31336-21X04 |
US $17.57 |
||
|
31337
|
31337
31337-21X01 Seal-Lip8510--01 ~ ; CA18#.AT |
31337-21X01 |
US $6.19 |
||
| replacement | |||||
|
31337
|
31337
C1337-21X01
Seal-lip
8510--01 ~ ; CA18#.AT |
C1337-21X01 |
— | ||
|
31338
|
31338
31338-21X01 Gasket-Control Cylinder8510--01 ~ ; CA18#.AT |
31338-21X01 |
US $1.73 |
||
|
31340A
|
31340A
31353-21X00 Bolt8510--01 ~ 8801--01; CA18#.AT |
31353-21X00 |
US $2.45 |
||
|
31344
|
31344
3134421X00 Seal-Oil Pump Housing8510--01 ~ ; CA18#.AT |
3134421X00 |
from US $4.66 |
||
|
31344
|
31344
3134421X00 Seal-Oil Pump Housing8510--01 ~ ; CA18#.AT |
3134421X00 |
from US $4.66 |
||
|
31350
|
31350
31350-21X02 Cover Assy-Oil Pump8510--01 ~ ; CA18#.AT |
31350-21X02 |
US $187.20 |
||
|
31356
|
31356
31356-21X02 Seal-O Ring8510--01 ~ ; CA18#.AT |
31356-21X02 |
US $5.18 |
||
| replacement | |||||
|
31356
|
31356
C1356-21X02
Seal-o ring
8510--01 ~ ; CA18#.AT |
C1356-21X02 |
— | ||
|
31358
|
31358
31358-21X01 Ring-Vane8510--01 ~ ; CA18#.AT |
31358-21X01 |
US $8.93 |
||
|
31358
|
31358
31358-21X01 Ring-Vane8510--01 ~ ; CA18#.AT |
31358-21X01 |
US $8.93 |
||
|
31360
|
31360
31360-21X01 Ring-Support Rotor8510--01 ~ ; CA18#.AT |
31360-21X01 |
US $6.48 |
||
|
31361
|
31361
31361-21X00 Ring-Seal8510--01 ~ ; CA18#.AT |
31361-21X00 |
US $10.80 |
||
|
31362
|
31362
31558-21X00 Ring-Seal8510--01 ~ ; CA18#.AT |
31558-21X00 |
US $10.80 |
||
|
31362
|
31362
31362-21X04
Seal-O Ring
8510--01 ~ ; CA18#.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31362
|
31362
C1362-21X04 O ring8510--01 ~ ; CA18#.AT |
C1362-21X04 |
US $5.96 |
||
|
31362M
|
31362M
31362-21X04
Seal-O Ring
8510--01 ~ ; CA18#.AT |
31362-21X04 |
— | ||
| replacement | |||||
|
31362M
|
31362M
C1362-21X04 O ring8510--01 ~ ; CA18#.AT |
C1362-21X04 |
US $5.96 |
||
|
31364
|
31364
31364-21X01 Retainer-Spring, Oil Pump8510--01 ~ 8801--01; (CA18I+CA18T).AT |
31364-21X01 |
US $0.86 |
||
|
31365P
|
31365P
31365-21X01 Spring-Camring8510--01 ~ 8801--01; (CA18I+CA18T).AT; ｱｳﾀ- |
31365-21X01 |
US $2.45 |
||
|
31366M
|
31366M
31366-21X04 Ring-Friction, Oil Pump8510--01 ~ ; CA18#.AT |
31366-21X04 |
US $25.06 |
||
|
31375
|
31375
31375-21X01 Pin-Pivot, Oil Pump8510--01 ~ ; CA18#.AT |
31375-21X01 |
US $1.73 |
||
|
31526
|
31526
31526-21X00 Seal-O Ring, Control Piston8510--01 ~ ; CA18#.AT |
31526-21X00 |
US $4.18 |
||
|
31528
|
31528
31528-21X00 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=0.7 |
31528-21X00 |
from US $5.04 |
||
|
31528
|
31528
31528-21X01 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=0.9 |
31528-21X01 |
US $5.04 |
||
|
31528
|
31528
31528-21X02 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=1.1 |
31528-21X02 |
US $5.04 |
||
|
31528
|
31528
31528-21X03 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=1.3 |
31528-21X03 |
US $5.04 |
||
|
31528
|
31528
31528-21X04 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=1.5 |
31528-21X04 |
US $4.85 |
||
|
31528
|
31528
31528-21X05 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=1.7 |
31528-21X05 |
US $5.04 |
||
|
31528
|
31528
31528-21X06 Washer-Thrust8510--01 ~ ; CA18#.AT; ｾﾝﾀｸ T=1.9 |
31528-21X06 |
US $5.04 |
||
|
31671
|
31671
31671-21X00 Piston-Accumulator8510--01 ~ 8806--01; CA18#.AT |
31671-21X00 |
US $15.84 |
||
|
31671
|
31671
31671-21X01 Piston-Accumulator8806--01 ~ ; CA18#.AT; |
31671-21X01 |
US $14.40 |
||
|
31672M
|
31672M
3167221X00 Seal-O Ring, Accumulator8510--01 ~ ; CA18#.AT |
3167221X00 |
US $4.99 |
||
|
31673M
|
31673M
3167321X00 Seal-O Ring, Accumulator8510--01 ~ ; CA18#.AT |
3167321X00 |
US $4.85 |
||
|
31674
|
31674
31674-01X02 Spring-Accumulator Servo8510--01 ~ 8801--01; (CA18I+CA18T).AT |
31674-01X02 |
US $2.45 |
||
|
31674
|
31674
31605-21X03 Spring-Accumulator Servo8510--01 ~ 8801--01; CA18T.AT |
31605-21X03 |
US $4.18 |
||
|
31674
|
31674
31605-21X07 Spring-Accumulator Servo8510--01 ~ 8801--01; CA18T.AT |
31605-21X07 |
US $4.18 |
||
|
31728D
|
31728D
01121-01991 BOLT8510--01 ~ 8812--01; CA18#.AT |
01121-01991 |
US $1.73 |
||
|
31728D
|
31728D
31377-21X04 Bolt8812--01 ~ ; CA18#.AT |
31377-21X04 |
US $1.73 |
||
|
31728N
|
31728N
31728-21X00
Strainer Assy-Oil
8510--01 ~ 8801--01; CA18#.AT |
31728-21X00 |
— | ||
|
31728N
|
31728N
31728-21X01 Strainer Assy-Oil8801--01 ~ 8812--01; CA18#.AT; |
31728-21X01 |
US $30.24 |
||
|
31728N
|
31728N
31728-21X02 Strainer Assy-Oil8812--01 ~ ; CA18#.AT; |
31728-21X02 |
US $30.24 |
||
|
31729N
|
31729N
31729-21X01 Seal-O Ring8510--01 ~ ; CA18#.AT |
31729-21X01 |
US $4.18 |
||
