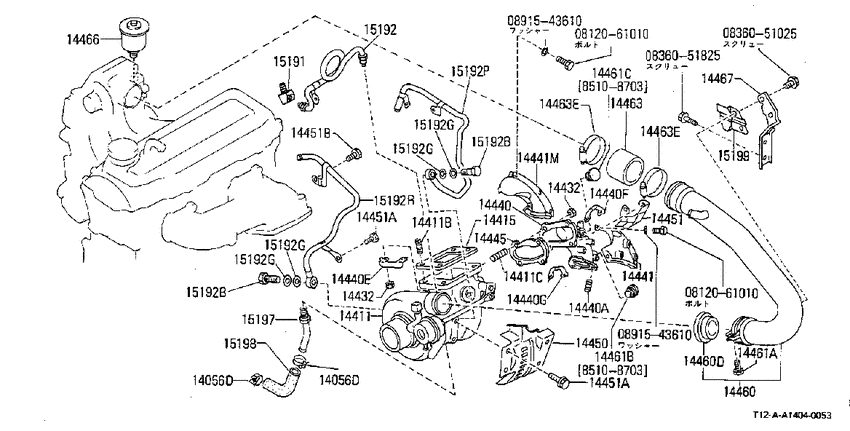

Turbo charger (1985-10-01 ~ 1988-01-01; CA18T) Diagram Nissan AUSTER/STANZA
- Year
- 1985 - 1988
- Sales region
- Japan
- Engine
- CA18T
- transmission
- AT
- grade
- XT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0836051025
|
0836051025
08360-51025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51025 |
— | ||
|
0836051825
|
0836051825
08360-51825
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51825 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
14056D
|
14056D
01555-00241 CLIP8510--01 ~ 8801--01; CA18T |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
14056D
|
14056D
0155500861 CLIP8510--01 ~ 8801--01; CA18T |
0155500861 |
US $2.45 |
||
|
14056D
|
14056D
01555-00241 CLIP8510--01 ~ 8801--01; CA18T |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
14056D
|
14056D
0155500861 CLIP8510--01 ~ 8801--01; CA18T |
0155500861 |
US $2.45 |
||
|
14411
|
14411
14411-17F11 Turbocharger8510--01 ~ 8606--01; CA18T |
14411-17F11 |
US $1,610 |
||
|
14411
|
14411
14411-17F16
Turbocharger
8606--01 ~ 8701--01; CA18T |
14411-17F16 |
— | ||
|
14411
|
14411
14411-17F70
Turbocharger
8701--01 ~ 8710--01; CA18T |
14411-17F70 |
— | ||
|
14411
|
14411
14411-17F72
Turbocharger
8710--01 ~ 8801--01; CA18T |
14411-17F72 |
— | ||
|
14411
|
14411
1406401M00 Stud8510--01 ~ 8801--01; CA18T |
1406401M00 |
US $4.27 |
||
|
14411
|
14411
1441417F00 Stud-Compressor Housing8510--01 ~ 8801--01; CA18T |
1441417F00 |
US $16.92 |
||
|
14411B
|
14411B
1406401M00 Stud8510--01 ~ 8801--01; CA18T |
1406401M00 |
US $4.27 |
||
|
14411C
|
14411C
1441417F00 Stud-Compressor Housing8510--01 ~ 8801--01; CA18T |
1441417F00 |
US $16.92 |
||
|
14415
|
14415
1441517M00 Turbocharger Inlet Gasket8510--01 ~ 8801--01; CA18T |
1441517M00 |
from US $17.74 |
||
|
14432
|
14432
14432-P7600
Nut-Outlet
8510--01 ~ 8801--01; CA18T |
14432-P7600 |
— | ||
| replacement | |||||
|
14432
|
14432
144320B700 Nut8510--01 ~ 8801--01; CA18T |
144320B700 |
from US $2.79 |
||
|
14432
|
14432
14432-P7600
Nut-Outlet
8510--01 ~ 8801--01; CA18T |
14432-P7600 |
— | ||
| replacement | |||||
|
14432
|
14432
144320B700 Nut8510--01 ~ 8801--01; CA18T |
144320B700 |
from US $2.79 |
||
|
14440
|
14440
14440-03E00 OUTLET-EXHAUST8703--01 ~ 8801--01; CA18T |
14440-03E00 |
US $98.93 |
||
|
14440
|
14440
14440-D4500 Outlet-Exhaust8510--01 ~ 8703--01; CA18T |
14440-D4500 |
US $154.08 |
||
|
14440
|
14440
14064N4200 Stud8510--01 ~ 8801--01; CA18T |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14440
|
14440
14064-N420A Stud8510--01 ~ 8801--01; CA18T |
14064-N420A |
from US $2.22 |
||
|
14440
|
14440
1449517F00 Plate-Lock8510--01 ~ 8801--01; CA18T |
1449517F00 |
US $5.23 |
||
|
14440
|
14440
14495-17F10 Plate-Lock8510--01 ~ 8801--01; CA18T |
14495-17F10 |
US $4.27 |
||
|
14440
|
14440
14495-17F20 Plate-Lock8510--01 ~ 8801--01; CA18T |
14495-17F20 |
US $4.27 |
||
|
14440A
|
14440A
14064N4200 Stud8510--01 ~ 8801--01; CA18T |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14440A
|
14440A
14064-N420A Stud8510--01 ~ 8801--01; CA18T |
14064-N420A |
from US $2.22 |
||
|
14440E
|
14440E
1449517F00 Plate-Lock8510--01 ~ 8801--01; CA18T |
1449517F00 |
US $5.23 |
||
|
14440F
|
14440F
14495-17F10 Plate-Lock8510--01 ~ 8801--01; CA18T |
14495-17F10 |
US $4.27 |
||
|
14440G
|
14440G
14495-17F20 Plate-Lock8510--01 ~ 8801--01; CA18T |
14495-17F20 |
US $4.27 |
||
|
14441
|
14441
14441-D4500 Cover-Exhaust Outlet8510--01 ~ 8801--01; CA18T; LH |
14441-D4500 |
US $15.55 |
||
|
14441
|
14441
14442-D4500 Cover-Exhaust Outlet8510--01 ~ 8801--01; CA18T; RH |
14442-D4500 |
US $16.42 |
||
|
14441M
|
14441M
14442-D4500 Cover-Exhaust Outlet8510--01 ~ 8801--01; CA18T; RH |
14442-D4500 |
US $16.42 |
||
|
14445
|
14445
14445-03E00 TURBOCHARGER OUTLET GASKET8510--01 ~ 8801--01; CA18T |
14445-03E00 |
US $57.80 |
||
|
14450
|
14450
14450-17F01 Insulator-Heat8510--01 ~ 8801--01; CA18T |
14450-17F01 |
US $14.54 |
||
|
14451
|
14451
14452-17F02 Bracket-Heat Insulator8510--01 ~ 8801--01; CA18T |
14452-17F02 |
US $14.11 |
||
|
14451
|
14451
0112100751 BOLT8510--01 ~ 8801--01; CA18T |
0112100751 |
from US $0.57 |
||
|
14451
|
14451
01436-00601 BOLT8510--01 ~ 8801--01; CA18T |
01436-00601 |
US $1.73 |
||
|
14451A
|
14451A
0112100751 BOLT8510--01 ~ 8801--01; CA18T |
0112100751 |
from US $0.57 |
||
|
14451A
|
14451A
0112100751 BOLT8510--01 ~ 8801--01; CA18T |
0112100751 |
from US $0.57 |
||
|
14451B
|
14451B
01436-00601 BOLT8510--01 ~ 8801--01; CA18T |
01436-00601 |
US $1.73 |
||
|
14460
|
14460
14460-03E00 TUBE ASSY-INLET8510--01 ~ 8801--01; CA18T |
14460-03E00 |
US $211.68 |
||
|
14460
|
14460
14463-03E10
SEAL RUBBER-INLET TUBE
8510--01 ~ 8801--01; CA18T |
14463-03E10 |
— | ||
|
14460D
|
14460D
14463-03E10
SEAL RUBBER-INLET TUBE
8510--01 ~ 8801--01; CA18T |
14463-03E10 |
— | ||
|
14461A
|
14461A
01121-00851 BOLT8510--01 ~ 8801--01; CA18T |
01121-00851 |
US $1.73 |
||
|
14461B
|
14461B
1405221R00 Plug-Taper8510--01 ~ 8703--01; CA18T; EAI |
1405221R00 |
from US $5.33 |
||
|
14461C
|
14461C
14052-21R10 Plug8510--01 ~ 8703--01; CA18T; O2ｾﾝｻ- |
14052-21R10 |
from US $4.37 |
||
|
14463
|
14463
14463-03E00
TURBOCHARGER TUBE HOSE
8510--01 ~ 8801--01; CA18T |
14463-03E00 |
— | ||
| replacement | |||||
|
14463
|
14463
14463-1E003 HOSE-AIR INLET8510--01 ~ 8801--01; CA18T |
14463-1E003 |
US $18.14 |
||
|
14463
|
14463
01555-00551
CLAMP-HOSE
8610--01 ~ 8801--01; CA18T |
01555-00551 |
— | ||
| replacement | |||||
|
14463
|
14463
0155501001 CLAMP-HOSE8610--01 ~ 8801--01; CA18T |
0155501001 |
US $5.27 |
||
|
14463
|
14463
14464-W1501 Clamp-Hose8510--01 ~ 8610--01; CA18T |
14464-W1501 |
US $11.81 |
||
| replacement | |||||
|
14463
|
14463
14464W150C
Clamp-Hose
8510--01 ~ 8610--01; CA18T |
14464W150C |
— | ||
|
14463E
|
14463E
01555-00551
CLAMP-HOSE
8610--01 ~ 8801--01; CA18T |
01555-00551 |
— | ||
| replacement | |||||
|
14463E
|
14463E
0155501001 CLAMP-HOSE8610--01 ~ 8801--01; CA18T |
0155501001 |
US $5.27 |
||
|
14463E
|
14463E
14464-W1501 Clamp-Hose8510--01 ~ 8610--01; CA18T |
14464-W1501 |
US $11.81 |
||
| replacement | |||||
|
14463E
|
14463E
14464W150C
Clamp-Hose
8510--01 ~ 8610--01; CA18T |
14464W150C |
— | ||
|
14463E
|
14463E
01555-00551
CLAMP-HOSE
8610--01 ~ 8801--01; CA18T |
01555-00551 |
— | ||
| replacement | |||||
|
14463E
|
14463E
0155501001 CLAMP-HOSE8610--01 ~ 8801--01; CA18T |
0155501001 |
US $5.27 |
||
|
14463E
|
14463E
14464-W1501 Clamp-Hose8510--01 ~ 8610--01; CA18T |
14464-W1501 |
US $11.81 |
||
| replacement | |||||
|
14463E
|
14463E
14464W150C
Clamp-Hose
8510--01 ~ 8610--01; CA18T |
14464W150C |
— | ||
|
14466
|
14466
14466-V5310
Valve Assy-Intake Bypass
8510--01 ~ 8801--01; CA18T |
14466-V5310 |
— | ||
|
14467
|
14467
14467-03E00 BRACKET-SUCTION TUBE8510--01 ~ 8801--01; CA18T |
14467-03E00 |
US $53.14 |
||
|
15191
|
15191
15191-D4200 Connector-3 Way8510--01 ~ 8801--01; CA18T |
15191-D4200 |
US $13.10 |
||
|
15192
|
15192
15192-D4200 Tube Assy-Oil8510--01 ~ 8801--01; CA18T |
15192-D4200 |
US $17.14 |
||
|
15192
|
15192
16432-17F00 Bolt-Eye, Water Tube8510--01 ~ 8801--01; CA18T |
16432-17F00 |
US $4.18 |
||
| replacement | |||||
|
15192
|
15192
1643217F0A Eyebolt-Water Tube8510--01 ~ 8801--01; CA18T |
1643217F0A |
from US $4.05 |
||
|
15192
|
15192
1519303E00 GASKET8510--01 ~ 8801--01; CA18T |
1519303E00 |
US $2.49 |
||
|
15192
|
15192
14499-03E00 TUBE ASSY-WATER INLET8510--01 ~ 8512--01; CA18T |
14499-03E00 |
US $78.77 |
||
|
15192
|
15192
14499-03E01 TUBE ASSY-WATER INLET8512--01 ~ 8801--01; CA18T |
14499-03E01 |
US $50.40 |
||
|
15192
|
15192
14498-03E01 TUBE ASSY-WATER OUTLET8512--01 ~ 8801--01; CA18T |
14498-03E01 |
US $38.02 |
||
|
15192
|
15192
14499-03E10 TUBE ASSY-WATER OUTLET8510--01 ~ 8512--01; CA18T |
14499-03E10 |
US $59.04 |
||
|
15192B
|
15192B
16432-17F00 Bolt-Eye, Water Tube8510--01 ~ 8801--01; CA18T |
16432-17F00 |
US $4.18 |
||
| replacement | |||||
|
15192B
|
15192B
1643217F0A Eyebolt-Water Tube8510--01 ~ 8801--01; CA18T |
1643217F0A |
from US $4.05 |
||
|
15192B
|
15192B
16432-17F00 Bolt-Eye, Water Tube8510--01 ~ 8801--01; CA18T |
16432-17F00 |
US $4.18 |
||
| replacement | |||||
|
15192B
|
15192B
1643217F0A Eyebolt-Water Tube8510--01 ~ 8801--01; CA18T |
1643217F0A |
from US $4.05 |
||
|
15192G
|
15192G
1519303E00 GASKET8510--01 ~ 8801--01; CA18T |
1519303E00 |
US $2.49 |
||
|
15192G
|
15192G
1519303E00 GASKET8510--01 ~ 8801--01; CA18T |
1519303E00 |
US $2.49 |
||
|
15192G
|
15192G
1519303E00 GASKET8510--01 ~ 8801--01; CA18T |
1519303E00 |
US $2.49 |
||
|
15192G
|
15192G
1519303E00 GASKET8510--01 ~ 8801--01; CA18T |
1519303E00 |
US $2.49 |
||
|
15192P
|
15192P
14499-03E00 TUBE ASSY-WATER INLET8510--01 ~ 8512--01; CA18T |
14499-03E00 |
US $78.77 |
||
|
15192P
|
15192P
14499-03E01 TUBE ASSY-WATER INLET8512--01 ~ 8801--01; CA18T |
14499-03E01 |
US $50.40 |
||
|
15192R
|
15192R
14498-03E01 TUBE ASSY-WATER OUTLET8512--01 ~ 8801--01; CA18T |
14498-03E01 |
US $38.02 |
||
|
15192R
|
15192R
14499-03E10 TUBE ASSY-WATER OUTLET8510--01 ~ 8512--01; CA18T |
14499-03E10 |
US $59.04 |
||
|
15197
|
15197
15197-17F00 Turbocharger Oil Outlet8510--01 ~ 8801--01; CA18T |
15197-17F00 |
US $18.58 |
||
|
15198
|
15198
15198-17F00
Turbocharger Oil Hose
8510--01 ~ 8801--01; CA18T |
15198-17F00 |
— | ||
| replacements | |||||
|
15198
|
15198
1519817F01
Turbocharger Oil Hose
8510--01 ~ 8801--01; CA18T |
1519817F01 |
— | ||
|
15198
|
15198
1519717F06 Turbocharger Oil Outlet8510--01 ~ 8801--01; CA18T |
1519717F06 |
US $21.32 |
||
|
15199
|
15199
14461-03E10 PLATE-HEAT SHIELD8510--01 ~ 8801--01; CA18T |
14461-03E10 |
US $9.36 |
||
