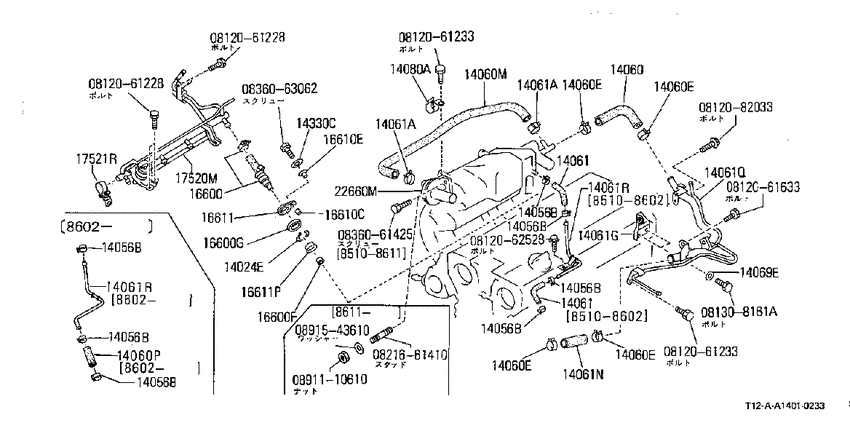

Manifold (1985-10-01 ~ ; パイピング パーツ; CA18DT) Diagram Nissan AUSTER/STANZA
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA18DT
- transmission
- AT
- grade
- XTT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061233
|
0812061233
0812061233 Bolt-hexagon |
0812061233 |
US $0.56 |
||
|
0812061233
|
0812061233
0812061233 Bolt-hexagon |
0812061233 |
US $0.56 |
||
|
0812061633
|
0812061633
08120-61633
Bolt-hexagon
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F Bolt-hexagon |
08120-6161F |
from US $2.36 |
||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812082033
|
0812082033
08120-82033
Bolt-hexagon
|
08120-82033 |
— | ||
|
081308161A
|
081308161A
08130-8161A Bolt-hexagon |
08130-8161A |
US $1.73 |
||
|
0821661410
|
0821661410
08216-61410
ｽﾀﾂﾄﾞ
|
08216-61410 |
— | ||
|
0836061425
|
0836061425
08360-61425
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61425 |
— | ||
|
0836063062
|
0836063062
0836063062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836063062 |
— | ||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
14024E
|
14024E
16616-V5000 Ring-Snap8510--01 ~ ; CA18DT |
16616-V5000 |
US $3.60 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14056B
|
14056B
16439-01B00 Clamp-Hose8510--01 ~ ; CA18DT |
16439-01B00 |
US $5.18 |
||
|
14060
|
14060
23786-D4201 Hose-3 Way Connector To Air Regulator8510--01 ~ ; CA18DT |
23786-D4201 |
US $12.38 |
||
|
14060
|
14060
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
14060
|
14060
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
14060
|
14060
14060-D4200 Hose-Air Box To Connector8510--01 ~ ; CA18DT |
14060-D4200 |
US $21.02 |
||
|
14060
|
14060
14061-D4205 Hose-Air8602--01 ~ ; CA18DT |
14061-D4205 |
US $6.48 |
||
|
14060E
|
14060E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
14060E
|
14060E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
14060E
|
14060E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
14060E
|
14060E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
14060E
|
14060E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
14060E
|
14060E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
14060E
|
14060E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
14060E
|
14060E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
14060M
|
14060M
14060-D4200 Hose-Air Box To Connector8510--01 ~ ; CA18DT |
14060-D4200 |
US $21.02 |
||
|
14060P
|
14060P
14061-D4205 Hose-Air8602--01 ~ ; CA18DT |
14061-D4205 |
US $6.48 |
||
|
14061
|
14061
14061-59S13
Hose-Idle Adjust Air
8510--01 ~ ; CA18DT |
14061-59S13 |
— | ||
|
14061
|
14061
16439-V5000
Clamp-Hose A
8510--01 ~ ; CA18DT |
16439-V5000 |
— | ||
| replacement | |||||
|
14061
|
14061
16439V500B Clamp-Hose A8510--01 ~ ; CA18DT |
16439V500B |
from US $2.50 |
||
|
14061
|
14061
16581-D4200 Bracket-Air Pipe8510--01 ~ ; CA18DT |
16581-D4200 |
US $10.80 |
||
|
14061
|
14061
23786-D4200 Hose8510--01 ~ ; CA18DT |
23786-D4200 |
US $12.38 |
||
|
14061
|
14061
14061-D4200 Pipe-Air Regulator8510--01 ~ ; CA18DT |
14061-D4200 |
US $81.22 |
||
|
14061
|
14061
14825-D4201
Pipe-Air
8510--01 ~ 8602--01; CA18DT |
14825-D4201 |
— | ||
|
14061
|
14061
14825-D4202 Pipe-Air8602--01 ~ ; CA18DT |
14825-D4202 |
US $19.73 |
||
|
14061
|
14061
14061-59S13
Hose-Idle Adjust Air
8510--01 ~ ; CA18DT |
14061-59S13 |
— | ||
|
14061
|
14061
16439-V5000
Clamp-Hose A
8510--01 ~ ; CA18DT |
16439-V5000 |
— | ||
| replacement | |||||
|
14061
|
14061
16439V500B Clamp-Hose A8510--01 ~ ; CA18DT |
16439V500B |
from US $2.50 |
||
|
14061
|
14061
16581-D4200 Bracket-Air Pipe8510--01 ~ ; CA18DT |
16581-D4200 |
US $10.80 |
||
|
14061
|
14061
23786-D4200 Hose8510--01 ~ ; CA18DT |
23786-D4200 |
US $12.38 |
||
|
14061
|
14061
14061-D4200 Pipe-Air Regulator8510--01 ~ ; CA18DT |
14061-D4200 |
US $81.22 |
||
|
14061
|
14061
14825-D4201
Pipe-Air
8510--01 ~ 8602--01; CA18DT |
14825-D4201 |
— | ||
|
14061
|
14061
14825-D4202 Pipe-Air8602--01 ~ ; CA18DT |
14825-D4202 |
US $19.73 |
||
|
14061A
|
14061A
16439-V5000
Clamp-Hose A
8510--01 ~ ; CA18DT |
16439-V5000 |
— | ||
| replacement | |||||
|
14061A
|
14061A
16439V500B Clamp-Hose A8510--01 ~ ; CA18DT |
16439V500B |
from US $2.50 |
||
|
14061A
|
14061A
16439-V5000
Clamp-Hose A
8510--01 ~ ; CA18DT |
16439-V5000 |
— | ||
| replacement | |||||
|
14061A
|
14061A
16439V500B Clamp-Hose A8510--01 ~ ; CA18DT |
16439V500B |
from US $2.50 |
||
|
14061G
|
14061G
16581-D4200 Bracket-Air Pipe8510--01 ~ ; CA18DT |
16581-D4200 |
US $10.80 |
||
|
14061N
|
14061N
23786-D4200 Hose8510--01 ~ ; CA18DT |
23786-D4200 |
US $12.38 |
||
|
14061Q
|
14061Q
14061-D4200 Pipe-Air Regulator8510--01 ~ ; CA18DT |
14061-D4200 |
US $81.22 |
||
|
14061R
|
14061R
14825-D4201
Pipe-Air
8510--01 ~ 8602--01; CA18DT |
14825-D4201 |
— | ||
|
14061R
|
14061R
14825-D4202 Pipe-Air8602--01 ~ ; CA18DT |
14825-D4202 |
US $19.73 |
||
|
14061R
|
14061R
14825-D4201
Pipe-Air
8510--01 ~ 8602--01; CA18DT |
14825-D4201 |
— | ||
|
14061R
|
14061R
14825-D4202 Pipe-Air8602--01 ~ ; CA18DT |
14825-D4202 |
US $19.73 |
||
|
14069E
|
14069E
01323-00021 WASHER-FINAL DRIVE8510--01 ~ ; CA18DT |
01323-00021 |
US $1.73 |
||
|
14080A
|
14080A
24210-D4200 Clamp-Hose8510--01 ~ ; CA18DT |
24210-D4200 |
US $3.17 |
||
|
14330C
|
14330C
16611-V5000 Washer-Injector8510--01 ~ ; CA18DT |
16611-V5000 |
US $3.60 |
||
|
16600
|
16600
16600-D4202 Injector Assy8510--01 ~ ; CA18DT; JECS ｷｲﾛ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
16600-D4202 |
US $197.28 |
||
|
16600
|
16600
16600-D4207 Injector Assy8510--01 ~ ; CA18DT; DKC ｷｲﾛ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
16600-D4207 |
US $197.28 |
||
|
16600
|
16600
16600-D4212 Injector Assy8510--01 ~ ; CA18DT; JECS ﾐﾄﾞﾘ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
16600-D4212 |
US $197.28 |
||
|
16600
|
16600
16600-D4217 Injector Assy8510--01 ~ ; CA18DT; DKC ﾐﾄﾞﾘ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
16600-D4217 |
US $197.28 |
||
|
16600
|
16600
16636V5000 Insulator-Injector8510--01 ~ ; CA18DT |
16636V5000 |
from US $3.16 |
||
|
16600
|
16600
16635V5000 Insulator-Injector8510--01 ~ ; CA18DT |
16635V5000 |
US $2.74 |
||
|
16600F
|
16600F
16636V5000 Insulator-Injector8510--01 ~ ; CA18DT |
16636V5000 |
from US $3.16 |
||
|
16600G
|
16600G
16635V5000 Insulator-Injector8510--01 ~ ; CA18DT |
16635V5000 |
US $2.74 |
||
|
16610C
|
16610C
16614-D4200 Spacer-Fuel Tube8510--01 ~ ; CA18DT |
16614-D4200 |
US $3.32 |
||
|
16610E
|
16610E
16613-V5000 Collar-Injector Holder8510--01 ~ ; CA18DT |
16613-V5000 |
US $4.61 |
||
|
16611
|
16611
16612-D4200 Holder-Injector8510--01 ~ ; CA18DT |
16612-D4200 |
US $9.94 |
||
|
16611
|
16611
1661535F00 Socket-Fuel Injector Hose8904--01 ~ ; CA18DT |
1661535F00 |
US $2.02 |
||
|
16611
|
16611
16615-V5000 Socket-Fuel Injector Hose8510--01 ~ 8904--01; CA18DT |
16615-V5000 |
US $1.01 |
||
|
16611P
|
16611P
1661535F00 Socket-Fuel Injector Hose8904--01 ~ ; CA18DT |
1661535F00 |
US $2.02 |
||
|
16611P
|
16611P
16615-V5000 Socket-Fuel Injector Hose8510--01 ~ 8904--01; CA18DT |
16615-V5000 |
US $1.01 |
||
|
17520M
|
17520M
17520-D4202 Tube Assy-Fuel8510--01 ~ 8908--01; CA18DT |
17520-D4202 |
US $352.58 |
||
|
17520M
|
17520M
17520-D4203 Tube Assy-Fuel8908--01 ~ ; CA18DT |
17520-D4203 |
US $352.58 |
||
|
17521R
|
17521R
21514-30F00 Clamp-Fuel Tube8510--01 ~ ; CA18DT |
21514-30F00 |
US $9.94 |
||
|
22660M
|
22660M
22660-D4200
Iacv-Air Regulator
8510--01 ~ 8606--01; CA18DT |
22660-D4200 |
— | ||
|
22660M
|
22660M
22660-D4201
Iacv-Air Regulator
8606--01 ~ 8709--01; CA18DT |
22660-D4201 |
— | ||
|
22660M
|
22660M
22660-D4202 Iacv-Air Regulator8709--01 ~ 9007--01; CA18DT |
22660-D4202 |
US $129.31 |
||
|
22660M
|
22660M
22660-D4210 Iacv-Air Regulator9007--01 ~ ; CA18DT |
22660-D4210 |
US $129.31 |
||
