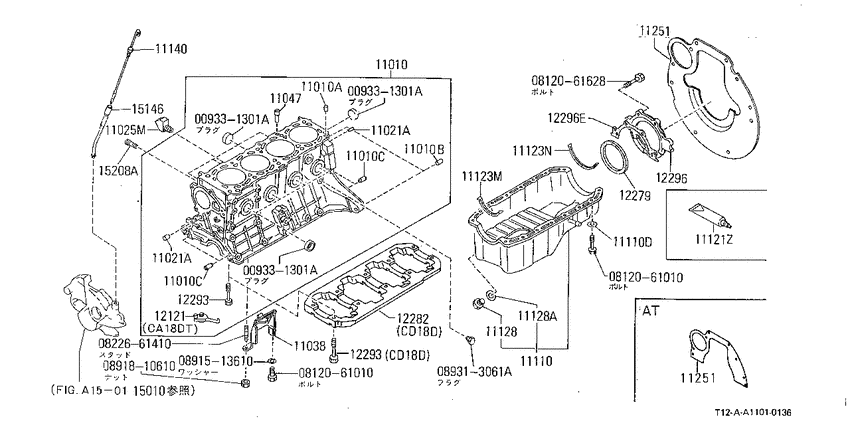

Cylinder - block & ｵｲﾙﾊﾟﾝ (1985-10-01 ~ ; CA18DT) Diagram Nissan AUSTER/STANZA
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA18DT
- transmission
- AT
- grade
- XTT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.09 |
||
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.09 |
||
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.09 |
||
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.63 |
||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891810610
|
0891810610
08918-10610 NUTHEX |
08918-10610 |
US $0.50 |
||
|
089313061A
|
089313061A
08931-3061A
PLUGTHREAD
|
08931-3061A |
— | ||
|
11010
|
11010
11010-D4200 Block Assy-Cylinder8510--01 ~ 8705--01; CA18DT |
11010-D4200 |
US $2,282 |
||
|
11010
|
11010
11010-D42A0 Block Assy-Cylinder8705--01 ~ ; CA18DT |
11010-D42A0 |
US $1,806 |
||
|
11010
|
11010
1105316A00
Dowel-Block To Head
8510--01 ~ ; CA18DT |
1105316A00 |
— | ||
|
11010
|
11010
1102221000 Dowel-Block To Transmission8510--01 ~ ; CA18DT |
1102221000 |
from US $1.83 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump8510--01 ~ ; CA18DT |
1104673402 |
from US $0.48 |
||
|
11010A
|
11010A
1105316A00
Dowel-Block To Head
8510--01 ~ ; CA18DT |
1105316A00 |
— | ||
|
11010B
|
11010B
1102221000 Dowel-Block To Transmission8510--01 ~ ; CA18DT |
1102221000 |
from US $1.83 |
||
|
11010C
|
11010C
1104673402 Dowel-Water Pump8510--01 ~ ; CA18DT |
1104673402 |
from US $0.48 |
||
|
11010C
|
11010C
1104673402 Dowel-Water Pump8510--01 ~ ; CA18DT |
1104673402 |
from US $0.48 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8510--01 ~ ; CA18DT |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8510--01 ~ ; CA18DT |
11024K0100 |
from US $0.52 |
||
|
11025M
|
11025M
25071-D4200 Connector8510--01 ~ 8801--01; CA18T+CA18DT; ｵｲﾙ ﾌﾟﾚﾂｼﾔ- SW ﾖｳ |
25071-D4200 |
US $19.87 |
||
|
11038
|
11038
11038-D4200
Plate-Baffle, Crank Case
8510--01 ~ ; CA18DT |
11038-D4200 |
— | ||
|
11047
|
11047
11036D4200
Jet-Oil, Cylinder Head
8510--01 ~ ; CA18DT |
11036D4200 |
— | ||
|
11110
|
11110
11110-D4210 Pan Assy-Oil8510--01 ~ ; CA18DT |
11110-D4210 |
US $264.96 |
||
|
11110
|
11110
01323-00041 WASHER-LOCK8510--01 ~ 8801--01; CA18DT |
01323-00041 |
US $1.73 |
||
|
11110D
|
11110D
01323-00041 WASHER-LOCK8510--01 ~ 8801--01; CA18DT |
01323-00041 |
US $1.73 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid8510--01 ~ ; CA18DT; [K504] |
KP510-00150 |
US $29.51 |
||
|
11123M
|
11123M
11121-01F10
Seal-Oil Pan, Front
8510--01 ~ ; CA18DT |
11121-01F10 |
— | ||
| replacement | |||||
|
11123M
|
11123M
111210C400 Seal-Oil Pan, Front8510--01 ~ ; CA18DT |
111210C400 |
from US $5.96 |
||
|
11123N
|
11123N
11121-01F15
Seal-Oil Pan, Rear
8510--01 ~ ; CA18DT |
11121-01F15 |
— | ||
| replacement | |||||
|
11123N
|
11123N
111210C410 Seal-Oil Pan, Rear8510--01 ~ ; CA18DT |
111210C410 |
from US $5.44 |
||
|
11128
|
11128
11128-01M00 Plug-Drain8510--01 ~ ; CA18DT |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain8510--01 ~ ; CA18DT |
1112801M0B |
from US $2.28 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug8510--01 ~ ; CA18DT |
1102601M02 |
from US $0.81 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8510--01 ~ ; CA18DT |
1102601M02 |
from US $0.81 |
||
|
11140
|
11140
11140-D4200 Gauge-Oil Level8510--01 ~ 8810--01; CA18DT |
11140-D4200 |
US $22.90 |
||
|
11140
|
11140
11140-D4201 Gauge-Oil Level8810--01 ~ ; CA18D+CA18DT |
11140-D4201 |
US $14.83 |
||
|
11251
|
11251
30411-03E11 PLATE-ENGINE,REAR8606--01 ~ ; CA18DT.AT |
30411-03E11 |
US $64.66 |
||
|
11251
|
11251
30411-03E11 PLATE-ENGINE,REAR8606--01 ~ ; CA18DT.AT |
30411-03E11 |
US $64.66 |
||
|
12121
|
12121
11560-D4201 Jet Assy-Oil8510--01 ~ ; CA18DT |
11560-D4201 |
US $56.02 |
||
|
12279
|
12279
12279-18V00 Seal-Oil, Crankshaft Rear9004--01 ~ ; CA18D+CA18DT |
12279-18V00 |
US $21.74 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear9004--01 ~ ; CA18D+CA18DT |
12279AD205 |
from US $17.71 |
||
|
12279
|
12279
12279-D0100 Seal-Oil, Crankshaft Rear8510--01 ~ 9004--01; CA18DT |
12279-D0100 |
US $28.94 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear8510--01 ~ 9004--01; CA18DT |
12279AD205 |
from US $17.71 |
||
|
12279
|
12279
13042-42L00
Seal-Oil, Crankshaft Front
8510--01 ~ ; CA18DT |
13042-42L00 |
— | ||
| replacement | |||||
|
12279
|
12279
13042-16V0A SI - Le, oil camsiyaft8510--01 ~ ; CA18DT |
13042-16V0A |
from US $7.09 |
||
|
12293
|
12293
12293-D0100 Bolt-Main Bearing Cap8510--01 ~ ; CA18DT |
12293-D0100 |
US $2.91 |
||
|
12293
|
12293
12293-D0100 Bolt-Main Bearing Cap8510--01 ~ ; CA18DT |
12293-D0100 |
US $2.91 |
||
|
12296
|
12296
12297-D0100
Retainer-Oil Seal, Rear
8510--01 ~ ; CA18DT |
12297-D0100 |
— | ||
| replacement | |||||
|
12296
|
12296
12298-D5700 Gasket-Retainer8510--01 ~ ; CA18DT |
12298-D5700 |
US $12.20 |
||
|
12296
|
12296
12298-D0100 Gasket-Retainer8510--01 ~ 9002--01; CA18DT |
12298-D0100 |
US $3.31 |
||
|
12296
|
12296
12298-D5700 Gasket-Retainer9002--01 ~ ; CA18D+CA18DT |
12298-D5700 |
US $12.20 |
||
|
12296E
|
12296E
12298-D0100 Gasket-Retainer8510--01 ~ 9002--01; CA18DT |
12298-D0100 |
US $3.31 |
||
|
12296E
|
12296E
12298-D5700 Gasket-Retainer9002--01 ~ ; CA18D+CA18DT |
12298-D5700 |
US $12.20 |
||
|
15146
|
15146
11150-D4200 Guide-Oil Level Gauge8510--01 ~ ; CA18DT |
11150-D4200 |
US $18.86 |
||
|
15208A
|
15208A
15213-V0711 Stud-Oil Filter8510--01 ~ ; CA18DT |
15213-V0711 |
from US $6.99 |
||
