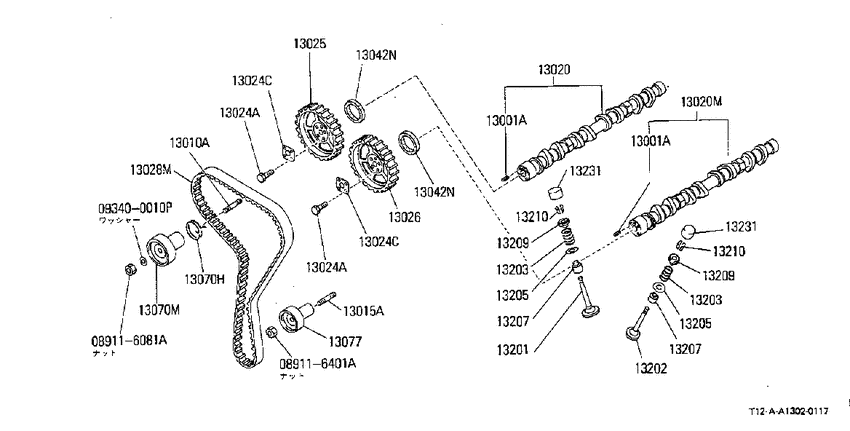

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1985-10-01 ~ ; CA18DT) Diagram Nissan AUSTER/STANZA
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA18DT
- transmission
- AT
- grade
- XTT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089116081A
|
089116081A
089116081A
NUT
|
089116081A |
— | ||
|
089116401A
|
089116401A
089116401A Nut-Stopper, Alternator |
089116401A |
from US $1.09 |
||
|
093400010P
|
093400010P
09340-0010P Washer-Plain |
09340-0010P |
US $1.73 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8510--01 ~ ; CA18DT |
1303218000 |
from US $0.57 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8510--01 ~ ; CA18DT |
1303218000 |
from US $0.57 |
||
|
13010A
|
13010A
01151-00221
BOLT
8510--01 ~ ; CA18DT |
01151-00221 |
— | ||
|
13015A
|
13015A
01151-00231
BOLT
8510--01 ~ ; CA18DT |
01151-00231 |
— | ||
|
13020
|
13020
13020-D4202 Camshaft Assy8510--01 ~ ; CA18DT; ｲﾝﾁ-ｸ ｶﾞﾜ |
13020-D4202 |
US $329.93 |
||
|
13020
|
13020
13020-D4211 Camshaft Assy8510--01 ~ ; CA18DT; ｴｷｿﾞ-ｽﾄ ｶﾞﾜ |
13020-D4211 |
US $338.42 |
||
|
13020M
|
13020M
13020-D4211 Camshaft Assy8510--01 ~ ; CA18DT; ｴｷｿﾞ-ｽﾄ ｶﾞﾜ |
13020-D4211 |
US $338.42 |
||
|
13024
|
13024
13012-D4200
Bolt-Sprocket, Camshaft
8510--01 ~ ; CA18DT |
13012-D4200 |
— | ||
| replacement | |||||
|
13024
|
13024
13012-D420A 13012D420A8510--01 ~ ; CA18DT |
13012-D420A |
US $4.57 |
||
|
13024
|
13024
13030-D4200
Washer-Lock
8510--01 ~ ; CA18DT |
13030-D4200 |
— | ||
| replacement | |||||
|
13024
|
13024
13030-D420A Washer-plain8510--01 ~ ; CA18DT |
13030-D420A |
US $4.85 |
||
|
13024A
|
13024A
13012-D4200
Bolt-Sprocket, Camshaft
8510--01 ~ ; CA18DT |
13012-D4200 |
— | ||
| replacement | |||||
|
13024A
|
13024A
13012-D420A 13012D420A8510--01 ~ ; CA18DT |
13012-D420A |
US $4.57 |
||
|
13024C
|
13024C
13030-D4200
Washer-Lock
8510--01 ~ ; CA18DT |
13030-D4200 |
— | ||
| replacement | |||||
|
13024C
|
13024C
13030-D420A Washer-plain8510--01 ~ ; CA18DT |
13030-D420A |
US $4.85 |
||
|
13024C
|
13024C
13030-D4200
Washer-Lock
8510--01 ~ ; CA18DT |
13030-D4200 |
— | ||
| replacement | |||||
|
13024C
|
13024C
13030-D420A Washer-plain8510--01 ~ ; CA18DT |
13030-D420A |
US $4.85 |
||
|
13025
|
13025
13024-D4200
Sprocket-Camshaft, Intake
8510--01 ~ 8512--01; CA18DT |
13024-D4200 |
— | ||
|
13025
|
13025
13024-D4201 Sprocket-Camshaft, Intake8512--01 ~ ; CA18DT |
13024-D4201 |
US $66.82 |
||
|
13026
|
13026
13024-D4200
Sprocket-Camshaft, Intake
8510--01 ~ 8512--01; CA18DT |
13024-D4200 |
— | ||
|
13026
|
13026
13024-D4201 Sprocket-Camshaft, Intake8512--01 ~ ; CA18DT |
13024-D4201 |
US $66.82 |
||
|
13028M
|
13028M
AY440NS003 Belt-Timing8510--01 ~ ; CA18DT |
AY440NS003 |
US $132.48 |
||
|
13042N
|
13042N
1304216V00
Seal-Oil, Camshaft
8708--01 ~ ; CA18DT |
1304216V00 |
— | ||
| replacement | |||||
|
13042N
|
13042N
13042-16V0A SI - Le, oil camsiyaft8708--01 ~ ; CA18DT |
13042-16V0A |
from US $7.09 |
||
|
13042N
|
13042N
13042-42L00
Seal-Oil, Crankshaft Front
8510--01 ~ 8708--01; CA18DT |
13042-42L00 |
— | ||
| replacement | |||||
|
13042N
|
13042N
13042-16V0A SI - Le, oil camsiyaft8510--01 ~ 8708--01; CA18DT |
13042-16V0A |
from US $7.09 |
||
|
13042N
|
13042N
1304216V00
Seal-Oil, Camshaft
8708--01 ~ ; CA18DT |
1304216V00 |
— | ||
| replacement | |||||
|
13042N
|
13042N
13042-16V0A SI - Le, oil camsiyaft8708--01 ~ ; CA18DT |
13042-16V0A |
from US $7.09 |
||
|
13042N
|
13042N
13042-42L00
Seal-Oil, Crankshaft Front
8510--01 ~ 8708--01; CA18DT |
13042-42L00 |
— | ||
| replacement | |||||
|
13042N
|
13042N
13042-16V0A SI - Le, oil camsiyaft8510--01 ~ 8708--01; CA18DT |
13042-16V0A |
from US $7.09 |
||
|
13070H
|
13070H
13072-01M00 Spring-Tensioner8510--01 ~ ; CA18DT |
13072-01M00 |
from US $1.30 |
||
|
13070M
|
13070M
AY460NS004 Tensioner Assy-Belt8510--01 ~ ; CA18DT |
AY460NS004 |
US $84.85 |
||
|
13077
|
13077
AY660NS010 Pulley Assy-Idler8510--01 ~ 8906--01; CA18DT |
AY660NS010 |
US $104.40 |
||
|
13201
|
13201
13201-D4201 Valve-Intake8510--01 ~ ; CA18DT |
13201-D4201 |
US $22.75 |
||
|
13202
|
13202
13202-D4201 Valve-Exhaust8510--01 ~ ; CA18DT |
13202-D4201 |
US $27.79 |
||
|
13203
|
13203
13203-58S00 Spring-Valve, Outer8510--01 ~ ; CA18DT |
13203-58S00 |
US $10.51 |
||
|
13203
|
13203
13203-58S00 Spring-Valve, Outer8510--01 ~ ; CA18DT |
13203-58S00 |
US $10.51 |
||
|
13205
|
13205
13205-58S00 Seat-Valve Spring, Outer8510--01 ~ ; CA18DT |
13205-58S00 |
from US $0.57 |
||
|
13205
|
13205
13205-58S00 Seat-Valve Spring, Outer8510--01 ~ ; CA18DT |
13205-58S00 |
from US $0.57 |
||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8907--01 ~ ; CA18D+CA18DT; ｷ-ﾊﾟ- ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-D4200 Seal-Oil, Valve8510--01 ~ 8907--01; CA18DT |
13207-D4200 |
US $4.75 |
||
|
13207
|
13207
13207-D4201 Seal-Oil, Valve8909--01 ~ ; CA18D+CA18DT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
13207-D4201 |
from US $4.33 |
||
| replacement | |||||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8909--01 ~ ; CA18D+CA18DT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8907--01 ~ ; CA18D+CA18DT; ｷ-ﾊﾟ- ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1320784A00 |
US $3.89 |
||
|
13207
|
13207
13207-D4200 Seal-Oil, Valve8510--01 ~ 8907--01; CA18DT |
13207-D4200 |
US $4.75 |
||
|
13207
|
13207
13207-D4201 Seal-Oil, Valve8909--01 ~ ; CA18D+CA18DT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
13207-D4201 |
from US $4.33 |
||
| replacement | |||||
|
13207
|
13207
1320784A00 Seal-Oil, Valve8909--01 ~ ; CA18D+CA18DT; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1320784A00 |
US $3.89 |
||
|
13209
|
13209
13209-D4200 Retainer-valve spring8510--01 ~ ; CA18DT |
13209-D4200 |
from US $1.28 |
||
|
13209
|
13209
13209-D4200 Retainer-valve spring8510--01 ~ ; CA18DT |
13209-D4200 |
from US $1.28 |
||
|
13210
|
13210
13210D4200 Collet-Valve Spring8510--01 ~ ; CA18DT |
13210D4200 |
from US $0.87 |
||
|
13210
|
13210
13210D4200 Collet-Valve Spring8510--01 ~ ; CA18DT |
13210D4200 |
from US $0.87 |
||
|
13231
|
13231
13231-58S12 Lifter-Valve8510--01 ~ 8801--01; CA18DT |
13231-58S12 |
US $77.04 |
||
|
13231
|
13231
1323179S00
Lifter-Valve
8906--01 ~ ; CA18D+CA18DT |
1323179S00 |
— | ||
|
13231
|
13231
13231-58S12 Lifter-Valve8510--01 ~ 8801--01; CA18DT |
13231-58S12 |
US $77.04 |
||
|
13231
|
13231
1323179S00
Lifter-Valve
8906--01 ~ ; CA18D+CA18DT |
1323179S00 |
— | ||
