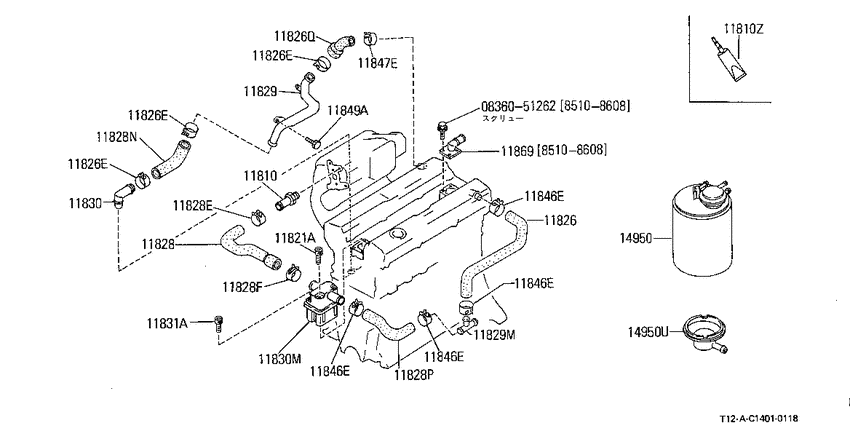

ｷﾔﾆｽﾀ- & ﾌﾞﾛ-ﾊﾞｲ ｺﾝﾄﾛ-ﾙ (1985-10-01 ~ ; CA18DT) Diagram Nissan AUSTER/STANZA
- Year
- 1986 - 2012
- Sales region
- Japan
- Engine
- CA18DT
- transmission
- AT
- grade
- XTT
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836051262
|
0836051262
08360-51262
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51262 |
— | ||
|
11810
|
11810
11810-E3001 Valve Assy-Control Blowby8510--01 ~ ; CA18DT |
11810-E3001 |
US $23.16 |
||
|
11810
|
11810
KP510-00150 Gasket-Liquid8510--01 ~ ; CA18DT; [K504] |
KP510-00150 |
US $29.51 |
||
|
11810Z
|
11810Z
KP510-00150 Gasket-Liquid8510--01 ~ ; CA18DT; [K504] |
KP510-00150 |
US $29.51 |
||
|
11821A
|
11821A
01131-00191 SCREW8510--01 ~ ; CA18DT |
01131-00191 |
US $3.46 |
||
|
11826
|
11826
11827-D4201 Hose-Blow By, A8510--01 ~ ; CA18DT |
11827-D4201 |
US $31.82 |
||
|
11826
|
11826
16439-V5002
Clamp
8510--01 ~ ; CA18DT |
16439-V5002 |
— | ||
| replacement | |||||
|
11826
|
11826
16439V500D Clamp8510--01 ~ ; CA18DT |
16439V500D |
from US $1.67 |
||
|
11826
|
11826
11828-D4207 Hose-Blow By, A8510--01 ~ 8603--01; CA18DT |
11828-D4207 |
US $9.07 |
||
|
11826
|
11826
11828-D4208 Hose-Blow By, B8603--01 ~ ; CA18DT |
11828-D4208 |
US $8.78 |
||
|
11826E
|
11826E
16439-V5002
Clamp
8510--01 ~ ; CA18DT |
16439-V5002 |
— | ||
| replacement | |||||
|
11826E
|
11826E
16439V500D Clamp8510--01 ~ ; CA18DT |
16439V500D |
from US $1.67 |
||
|
11826E
|
11826E
16439-V5002
Clamp
8510--01 ~ ; CA18DT |
16439-V5002 |
— | ||
| replacement | |||||
|
11826E
|
11826E
16439V500D Clamp8510--01 ~ ; CA18DT |
16439V500D |
from US $1.67 |
||
|
11826E
|
11826E
16439-V5002
Clamp
8510--01 ~ ; CA18DT |
16439-V5002 |
— | ||
| replacement | |||||
|
11826E
|
11826E
16439V500D Clamp8510--01 ~ ; CA18DT |
16439V500D |
from US $1.67 |
||
|
11826Q
|
11826Q
11828-D4207 Hose-Blow By, A8510--01 ~ 8603--01; CA18DT |
11828-D4207 |
US $9.07 |
||
|
11826Q
|
11826Q
11828-D4208 Hose-Blow By, B8603--01 ~ ; CA18DT |
11828-D4208 |
US $8.78 |
||
|
11828
|
11828
1182830F02
Hose-Blow By, B
8601--01 ~ ; CA18DT |
1182830F02 |
— | ||
|
11828
|
11828
11828-D4201 Hose-Blow By, B8510--01 ~ 8601--01; CA18DT |
11828-D4201 |
US $34.27 |
||
|
11828
|
11828
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11828
|
11828
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11828
|
11828
16439-26E00
CLAMP-HOSE
8510--01 ~ ; CA18DT |
16439-26E00 |
— | ||
| replacement | |||||
|
11828
|
11828
1643926E0A Clamp-Hose8510--01 ~ ; CA18DT |
1643926E0A |
US $5.96 |
||
|
11828
|
11828
11828-D4202 Hose-Blow By, A8510--01 ~ ; CA18DT |
11828-D4202 |
US $18.14 |
||
|
11828
|
11828
11827-D4200 Hose-Blow By, B8510--01 ~ ; CA18DT |
11827-D4200 |
US $31.82 |
||
|
11828E
|
11828E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11828E
|
11828E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11828F
|
11828F
16439-26E00
CLAMP-HOSE
8510--01 ~ ; CA18DT |
16439-26E00 |
— | ||
| replacement | |||||
|
11828F
|
11828F
1643926E0A Clamp-Hose8510--01 ~ ; CA18DT |
1643926E0A |
US $5.96 |
||
|
11828N
|
11828N
11828-D4202 Hose-Blow By, A8510--01 ~ ; CA18DT |
11828-D4202 |
US $18.14 |
||
|
11828P
|
11828P
11827-D4200 Hose-Blow By, B8510--01 ~ ; CA18DT |
11827-D4200 |
US $31.82 |
||
|
11829
|
11829
11829-D4202 Pipe-Extension, Blow By8510--01 ~ 8603--01; CA18DT |
11829-D4202 |
US $45.50 |
||
|
11829
|
11829
11829-D4203 Pipe-Extension, Blow By8603--01 ~ ; CA18DT |
11829-D4203 |
US $35.14 |
||
|
11829
|
11829
01692-00421 PIPE-EXTENSION,BLOW BY8510--01 ~ 8607--01; CA18DT |
01692-00421 |
US $17.57 |
||
|
11829
|
11829
14875-D4201 Pipe-Extension, Blow By8607--01 ~ ; CA18DT |
14875-D4201 |
US $37.30 |
||
|
11829M
|
11829M
01692-00421 PIPE-EXTENSION,BLOW BY8510--01 ~ 8607--01; CA18DT |
01692-00421 |
US $17.57 |
||
|
11829M
|
11829M
14875-D4201 Pipe-Extension, Blow By8607--01 ~ ; CA18DT |
14875-D4201 |
US $37.30 |
||
|
11830
|
11830
01692-00451 CONNECTOR-PIPE8510--01 ~ ; CA18DT |
01692-00451 |
US $5.90 |
||
|
11830
|
11830
11830-D4202 Separator Assy-Breather8510--01 ~ ; CA18DT |
11830-D4202 |
US $111.02 |
||
|
11830M
|
11830M
11830-D4202 Separator Assy-Breather8510--01 ~ ; CA18DT |
11830-D4202 |
US $111.02 |
||
|
11831A
|
11831A
01131-00181 SCREW8510--01 ~ ; CA18DT |
01131-00181 |
US $3.46 |
||
|
11846E
|
11846E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11846E
|
11846E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11846E
|
11846E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11846E
|
11846E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11846E
|
11846E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11846E
|
11846E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11846E
|
11846E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11846E
|
11846E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11847E
|
11847E
16439-V5001
Clamp-Hose, A
8510--01 ~ ; CA18DT |
16439-V5001 |
— | ||
| replacement | |||||
|
11847E
|
11847E
16439V500C Clamp-Hose8510--01 ~ ; CA18DT |
16439V500C |
from US $2.76 |
||
|
11849A
|
11849A
01131-00221 BOLT8510--01 ~ ; CA18DT |
01131-00221 |
US $2.45 |
||
|
11869
|
11869
11831-D4201 Cover Assy8510--01 ~ 8608--01; CA18DT |
11831-D4201 |
US $4.32 |
||
|
14950
|
14950
14950-01F00 Canister Assy-Evaporation8510--01 ~ 8801--01; CA16S+CA18I+CA18T +CA18DT |
14950-01F00 |
US $155.52 |
||
|
14950
|
14950
14954-37A00 Tray-Canister8510--01 ~ 8801--01; CA16S+CA18I+CA18T +CA18DT |
14954-37A00 |
US $5.90 |
||
|
14950U
|
14950U
14954-37A00 Tray-Canister8510--01 ~ 8801--01; CA16S+CA18I+CA18T +CA18DT |
14954-37A00 |
US $5.90 |
||
