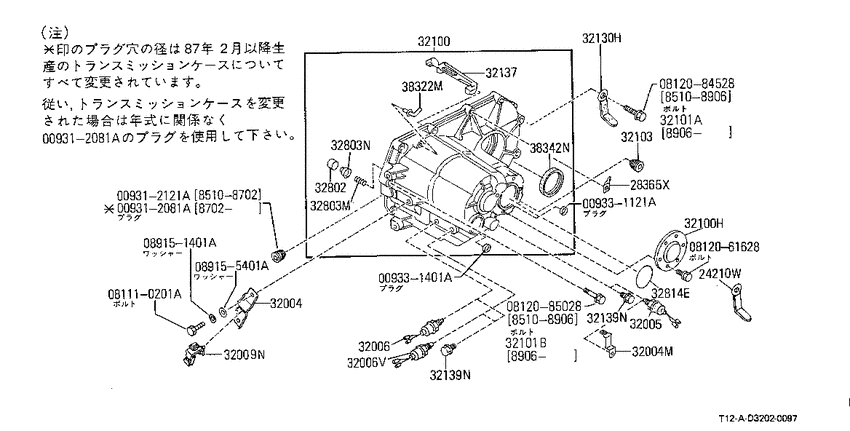

Transmission case (1985-10-01 ~ ; RS5F31A(ケース); (CA16S+CA18I).MT) Diagram Nissan AUSTER/STANZA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA16S
- transmission
- MT
- grade
- MC
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312081A
|
009312081A
009312081A Plug-Drain |
009312081A |
from US $1.87 |
||
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
009331121A
|
009331121A
00933-1121A
PLUG
|
00933-1121A |
— | ||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
081110201A
|
081110201A
08111-0201A
Bolt-hexagon
|
08111-0201A |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812084528
|
0812084528
08120-84528 Bolt-hexagon |
08120-84528 |
US $1.73 |
||
|
0812085028
|
0812085028
08120-85028
Bolt-hexagon
|
08120-85028 |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089155401A
|
089155401A
089155401A WASHERPLAIN |
089155401A |
from US $0.52 |
||
|
24210W
|
24210W
24210-89963 Clip-Wiring Harness8510--01 ~ 8801--01; (CA16S+CA18I).MT |
24210-89963 |
US $3.46 |
||
|
28365X
|
28365X
28365-41L00 Terminal-Earth8709--01 ~ ; (CA16S+CA18I).MT |
28365-41L00 |
US $0.86 |
||
|
32004
|
32004
32004-51A00 Bracket-Clip, Top & Overdrive Switch8510--01 ~ ; CA16S.MT |
32004-51A00 |
US $5.04 |
||
|
32004
|
32004
32004-50A00 Bracket-Clip, Top & Overdrive Switch8510--01 ~ ; (CA16S+CA18I).MT |
32004-50A00 |
US $6.19 |
||
|
32004M
|
32004M
32004-50A00 Bracket-Clip, Top & Overdrive Switch8510--01 ~ ; (CA16S+CA18I).MT |
32004-50A00 |
US $6.19 |
||
|
32005
|
32005
32005-51A00 Switch Assy-Reverse Lamp8510--01 ~ ; (CA16S+CA18I).MT |
32005-51A00 |
US $40.32 |
||
| replacement | |||||
|
32005
|
32005
32005-51A10 Switch Assy-Reverse Lamp8510--01 ~ ; (CA16S+CA18I).MT |
32005-51A10 |
US $48.67 |
||
|
32006
|
32006
32006D1106 Switch Assy-Top8510--01 ~ ; CA16S.MT |
32006D1106 |
US $25.63 |
||
|
32006
|
32006
32006-M8005 Switch Assy-Neutral Position8510--01 ~ 8704--01; (CA16S+CA18I).MT |
32006-M8005 |
US $21.17 |
||
| replacement | |||||
|
32006
|
32006
32006M8060 ﾆﾕ-ﾄﾗﾙ ｽｲﾂﾁassy8510--01 ~ 8704--01; (CA16S+CA18I).MT |
32006M8060 |
US $21.22 |
||
|
32006
|
32006
32006-M8010 Switch Assy-Neutral Position8704--01 ~ ; (CA16S+CA18I).MT |
32006-M8010 |
US $30.38 |
||
| replacement | |||||
|
32006
|
32006
32006M8060 ﾆﾕ-ﾄﾗﾙ ｽｲﾂﾁassy8704--01 ~ ; (CA16S+CA18I).MT |
32006M8060 |
US $21.22 |
||
|
32006
|
32006
32006-D1206 Switch Assy-Shift8510--01 ~ ; CA16S.MT |
32006-D1206 |
US $25.63 |
||
|
32006V
|
32006V
32006-D1206 Switch Assy-Shift8510--01 ~ ; CA16S.MT |
32006-D1206 |
US $25.63 |
||
|
32009N
|
32009N
32009-51A00 Bracket-Switch Connector, 4Th & 5Th8510--01 ~ ; CA16S.MT |
32009-51A00 |
US $6.19 |
||
|
32100
|
32100
32100-D4510 Case Assy-Transmission8510--01 ~ 8703--01; (CA16S+CA18I).MT |
32100-D4510 |
US $409.22 |
||
|
32100
|
32100
32131-M8001 Cover-Case8510--01 ~ ; (CA16S+CA18I).MT |
32131-M8001 |
US $7.49 |
||
|
32100H
|
32100H
32131-M8001 Cover-Case8510--01 ~ ; (CA16S+CA18I).MT |
32131-M8001 |
US $7.49 |
||
|
32101A
|
32101A
31377-31X03 Bolt8906--01 ~ ; (CA16S+CA18I).MT |
31377-31X03 |
US $2.45 |
||
|
32101B
|
32101B
31377-50J00 Bolt8906--01 ~ ; (CA16S+CA18I).MT |
31377-50J00 |
US $2.45 |
||
|
32103
|
32103
32103-01A01
Plug-Drain
8510--01 ~ ; (CA16S+CA18I).MT |
32103-01A01 |
— | ||
| replacements | |||||
|
32103
|
32103
3210301A0A
Plug-Drain
8510--01 ~ ; (CA16S+CA18I).MT |
3210301A0A |
— | ||
|
32103
|
32103
32103-01A02 Plug-Drain8510--01 ~ ; (CA16S+CA18I).MT |
32103-01A02 |
US $6.79 |
||
|
32130H
|
32130H
24210-S5010
Clip-Wiring Harness
8510--01 ~ 8801--01; (CA16S+CA18I).MT |
24210-S5010 |
— | ||
| replacement | |||||
|
32130H
|
32130H
01551-00281 CLIP-WIRING HARNESS8510--01 ~ 8801--01; (CA16S+CA18I).MT |
01551-00281 |
US $3.75 |
||
|
32137
|
32137
32107D0203 Gutter-Oil, Adapter8510--01 ~ ; (CA16S+CA18I).MT |
32107D0203 |
US $6.19 |
||
|
32139N
|
32139N
32139-M8002 Plug-Switch8510--01 ~ 8703--01; (CA16S+CA18I).MT |
32139-M8002 |
US $7.06 |
||
| replacement | |||||
|
32139N
|
32139N
32139-M800A
Plug-switch
8510--01 ~ 8703--01; (CA16S+CA18I).MT |
32139-M800A |
— | ||
|
32139N
|
32139N
32139-M8002 Plug-Switch8510--01 ~ 8703--01; (CA16S+CA18I).MT |
32139-M8002 |
US $7.06 |
||
| replacement | |||||
|
32139N
|
32139N
32139-M800A
Plug-switch
8510--01 ~ 8703--01; (CA16S+CA18I).MT |
32139-M800A |
— | ||
|
32802
|
32802
32802-M8000 Bush-Fork Shaft8510--01 ~ ; (CA16S+CA18I).MT |
32802-M8000 |
US $8.87 |
||
|
32802
|
32802
32803-M8000 Bush-Fork Shaft8510--01 ~ ; (CA16S+CA18I).MT |
32803-M8000 |
US $2.45 |
||
|
32803M
|
32803M
32828-M8000 Spring-Support Fork Shaft8510--01 ~ ; (CA16S+CA18I).MT |
32828-M8000 |
US $0.86 |
||
|
32803N
|
32803N
32804-M8000 Holder-Spring8510--01 ~ ; (CA16S+CA18I).MT |
32804-M8000 |
US $0.86 |
||
|
32814E
|
32814E
32136-M8000 Seal-O Ring8510--01 ~ ; (CA16S+CA18I).MT |
32136-M8000 |
US $4.03 |
||
|
38322M
|
38322M
38322-50A02 Breather-Transmission Case8510--01 ~ ; (CA16S+CA18I).MT |
38322-50A02 |
US $19.15 |
||
|
38342N
|
38342N
38342D2100 Seal-Oil, Differential Clutch Housing8510--01 ~ ; (CA16S+CA18I).MT; ﾒ-ｶ-ﾁｶﾞｲﾆﾖﾙｹｲｼﾞﾖｳﾁｶﾞ ｲｱﾘ |
38342D2100 |
from US $7.20 |
||
