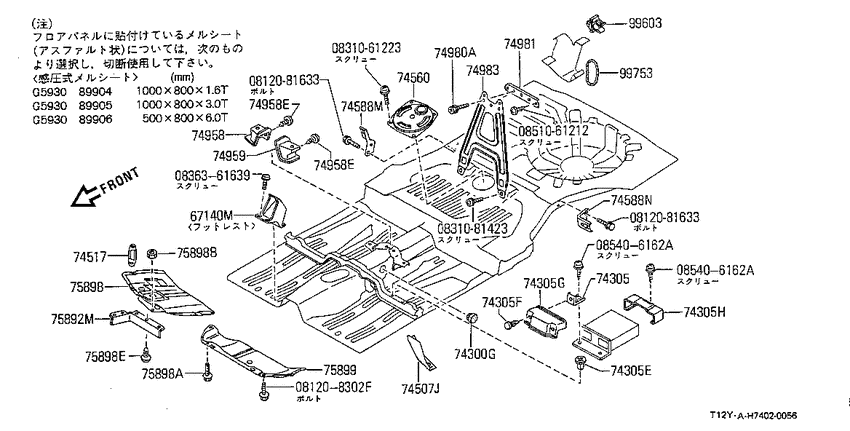

Floor fitting (1986-06-01 ~ ; その2; ALL) Diagram Nissan AUSTER/STANZA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA18D
- transmission
- MT
- grade
- SPR/T
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
081208302F
|
081208302F
08120-8302F
Bolt-hexagon
|
08120-8302F |
— | ||
|
0831061223
|
0831061223
08310-61223
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61223 |
— | ||
|
0831081423
|
0831081423
08310-81423
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-81423 |
— | ||
|
0836361639
|
0836361639
0836361639
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361639 |
— | ||
|
0851061212
|
0851061212
08510-61212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61212 |
— | ||
|
085406162A
|
085406162A
085406162A SCREWTAPPING |
085406162A |
US $1.93 |
||
|
085406162A
|
085406162A
085406162A SCREWTAPPING |
085406162A |
US $1.93 |
||
|
67140M
|
67140M
67840-D4000 Footrest Assy8606--01 ~ ; ALL |
67840-D4000 |
US $9.94 |
||
|
74305
|
74305
74975-D4000 Bracket-Computer8606--01 ~ ; ALL |
74975-D4000 |
US $2.74 |
||
|
74305
|
74305
01651-00491 GROMMET-SCREW8606--01 ~ ; ALL |
01651-00491 |
from US $0.57 |
||
|
74305
|
74305
01553-01831 CLIP8606--01 ~ 8801--01; ALL; (B) |
01553-01831 |
US $1.73 |
||
|
74305
|
74305
01553-03301 CLIP8606--01 ~ 8801--01; ALL; (A) |
01553-03301 |
US $1.73 |
||
|
74305
|
74305
01553-05561 CLIP8801--01 ~ ; ALL; (K) |
01553-05561 |
US $2.45 |
||
|
74305
|
74305
01553-05581 CLIP8801--01 ~ ; ALL; (B) |
01553-05581 |
US $2.45 |
||
|
74305
|
74305
01553-05591 ｸﾘﾂﾌﾟ8801--01 ~ ; ALL; (A) |
01553-05591 |
US $2.45 |
||
|
74305
|
74305
6384801G00 Clip-Harness Protector8801--01 ~ ; ALL; (G) |
6384801G00 |
from US $0.54 |
||
|
74305
|
74305
74937-D4001 Cover-Computer8801--01 ~ ; ALL; (K) |
74937-D4001 |
US $5.47 |
||
|
74305
|
74305
74937-D4002 Cover-Computer8606--01 ~ ; ALL; (B) |
74937-D4002 |
US $5.33 |
||
|
74305
|
74305
74937-D4003 ｶﾊﾞ-,ｺﾝﾋﾟﾕ-ﾀ-8606--01 ~ ; ALL; (A) |
74937-D4003 |
US $11.38 |
||
|
74305
|
74305
74970-02E02 COVER-COMPUTER8801--01 ~ ; ALL; (G) |
74970-02E02 |
US $8.93 |
||
|
74305
|
74305
74826-D4500 Protector8606--01 ~ 8801--01; CA18# |
74826-D4500 |
US $11.66 |
||
|
74305E
|
74305E
01651-00491 GROMMET-SCREW8606--01 ~ ; ALL |
01651-00491 |
from US $0.57 |
||
|
74305F
|
74305F
01553-01831 CLIP8606--01 ~ 8801--01; ALL; (B) |
01553-01831 |
US $1.73 |
||
|
74305F
|
74305F
01553-03301 CLIP8606--01 ~ 8801--01; ALL; (A) |
01553-03301 |
US $1.73 |
||
|
74305F
|
74305F
01553-05561 CLIP8801--01 ~ ; ALL; (K) |
01553-05561 |
US $2.45 |
||
|
74305F
|
74305F
01553-05581 CLIP8801--01 ~ ; ALL; (B) |
01553-05581 |
US $2.45 |
||
|
74305F
|
74305F
01553-05591 ｸﾘﾂﾌﾟ8801--01 ~ ; ALL; (A) |
01553-05591 |
US $2.45 |
||
|
74305F
|
74305F
6384801G00 Clip-Harness Protector8801--01 ~ ; ALL; (G) |
6384801G00 |
from US $0.54 |
||
|
74305G
|
74305G
74937-D4001 Cover-Computer8801--01 ~ ; ALL; (K) |
74937-D4001 |
US $5.47 |
||
|
74305G
|
74305G
74937-D4002 Cover-Computer8606--01 ~ ; ALL; (B) |
74937-D4002 |
US $5.33 |
||
|
74305G
|
74305G
74937-D4003 ｶﾊﾞ-,ｺﾝﾋﾟﾕ-ﾀ-8606--01 ~ ; ALL; (A) |
74937-D4003 |
US $11.38 |
||
|
74305G
|
74305G
74970-02E02 COVER-COMPUTER8801--01 ~ ; ALL; (G) |
74970-02E02 |
US $8.93 |
||
|
74305H
|
74305H
74826-D4500 Protector8606--01 ~ 8801--01; CA18# |
74826-D4500 |
US $11.66 |
||
|
74507J
|
74507J
74749-D4010 ﾌﾟﾛﾃｸﾀ-8609--01 ~ ; *MT; F/ﾋ-ﾄ ｲﾝｼﾕﾚ-ﾀ- |
74749-D4010 |
US $9.65 |
||
|
74517
|
74517
75896-01E00 STOPPER-ENGINE COVER8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
75896-01E00 |
US $12.10 |
||
|
74560
|
74560
74824-01E01
COVER-INSPECTION HOLE
8606--01 ~ ; ALL |
74824-01E01 |
— | ||
|
74588M
|
74588M
75572-01E01 BRACKET-BRAKE HOSE,REAR8606--01 ~ ; ALL |
75572-01E01 |
US $7.92 |
||
|
74588N
|
74588N
75573-01E02 BRACKET-BRAKE HOSE,REAR8606--01 ~ ; ALL |
75573-01E02 |
US $5.76 |
||
|
74958
|
74958
74954-D4000 Cover-Seat Mounting, Rh8801--01 ~ ; ALL; (G) |
74954-D4000 |
US $8.64 |
||
|
74958
|
74958
74954-D4001 Cover-Seat Mounting, Rh8801--01 ~ ; ALL; (K) |
74954-D4001 |
US $8.64 |
||
|
74958
|
74958
74954-D4002 Cover-Seat Mounting, Rh8606--01 ~ ; ALL; (B) |
74954-D4002 |
US $8.64 |
||
|
74958
|
74958
74954-D4003
ｶﾊﾞ-,ｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ rh
8606--01 ~ ; ALL; (A) |
74954-D4003 |
— | ||
|
74958
|
74958
0155301182 CLIP8801--01 ~ ; ALL; (G) |
0155301182 |
from US $0.59 |
||
|
74958
|
74958
01553-04221 CLIP8606--01 ~ ; ALL; (B) |
01553-04221 |
US $1.73 |
||
|
74958
|
74958
01553-04271 ｸﾘﾂﾌﾟ8606--01 ~ ; ALL; (A) |
01553-04271 |
US $1.73 |
||
|
74958
|
74958
01553-04281 CLIP8801--01 ~ ; ALL; (K) |
01553-04281 |
US $1.73 |
||
|
74958E
|
74958E
0155301182 CLIP8801--01 ~ ; ALL; (G) |
0155301182 |
from US $0.59 |
||
|
74958E
|
74958E
01553-04221 CLIP8606--01 ~ ; ALL; (B) |
01553-04221 |
US $1.73 |
||
|
74958E
|
74958E
01553-04271 ｸﾘﾂﾌﾟ8606--01 ~ ; ALL; (A) |
01553-04271 |
US $1.73 |
||
|
74958E
|
74958E
01553-04281 CLIP8801--01 ~ ; ALL; (K) |
01553-04281 |
US $1.73 |
||
|
74958E
|
74958E
0155301182 CLIP8801--01 ~ ; ALL; (G) |
0155301182 |
from US $0.59 |
||
|
74958E
|
74958E
01553-04221 CLIP8606--01 ~ ; ALL; (B) |
01553-04221 |
US $1.73 |
||
|
74958E
|
74958E
01553-04271 ｸﾘﾂﾌﾟ8606--01 ~ ; ALL; (A) |
01553-04271 |
US $1.73 |
||
|
74958E
|
74958E
01553-04281 CLIP8801--01 ~ ; ALL; (K) |
01553-04281 |
US $1.73 |
||
|
74959
|
74959
74955-D4000 Cover-Seat Mounting, Lh8801--01 ~ ; ALL; (G) |
74955-D4000 |
US $8.64 |
||
|
74959
|
74959
74955-D4001 Cover-Seat Mounting, Lh8801--01 ~ ; ALL; (K) |
74955-D4001 |
US $8.64 |
||
|
74959
|
74959
74955-D4002 Cover-Seat Mounting, Lh8606--01 ~ ; ALL; (B) |
74955-D4002 |
US $8.64 |
||
|
74959
|
74959
74955-D4003
ｶﾊﾞ-,ｼ-ﾄ ﾏｳﾝﾃｲﾝｸﾞ lh
8606--01 ~ ; ALL; (A) |
74955-D4003 |
— | ||
|
74980A
|
74980A
0143600052 BOLT8606--01 ~ ; ALL; |
0143600052 |
US $2.91 |
||
|
75892M
|
75892M
75882-D4001 ｶﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｱﾝﾀﾞ-8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
75882-D4001 |
US $15.41 |
||
|
75898
|
75898
75892-01E01 COVER-ENGINE,LOWER8606--01 ~ ; ALL |
75892-01E01 |
US $23.47 |
||
|
75898
|
75898
75896-D4001 ｶﾊﾞ-,ﾌﾛﾝﾄ ｱﾝﾀﾞ- rh8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
75896-D4001 |
US $129.17 |
||
|
75898
|
75898
0146600261 SCREW8606--01 ~ ; ALL |
0146600261 |
from US $0.46 |
||
|
75898
|
75898
01221-00161 NUT8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
01221-00161 |
US $1.73 |
||
|
75898
|
75898
01553-01321 CLIP8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
01553-01321 |
US $2.21 |
||
|
75898A
|
75898A
0146600261 SCREW8606--01 ~ ; ALL |
0146600261 |
from US $0.46 |
||
|
75898B
|
75898B
01221-00161 NUT8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
01221-00161 |
US $1.73 |
||
|
75898E
|
75898E
01553-01321 CLIP8606--01 ~ 8801--01; *CA18T+CA18D; ﾃﾞﾝｼｾｲｷﾞﾖ ｻｽﾍﾟﾝｼﾖﾝ |
01553-01321 |
US $2.21 |
||
|
75899
|
75899
75893-28E00 COVER-ENGINE,LOWER8606--01 ~ ; ALL |
75893-28E00 |
US $29.81 |
||
|
99603
|
99603
74898-D0100 ｸﾗﾝﾌﾟ,ｼﾞﾔﾂｷ ﾊﾝﾄﾞﾙ8606--01 ~ ; ALL |
74898-D0100 |
US $0.86 |
||
|
99753
|
99753
74842-01E00 MOUNTING RUBBER-JACK8606--01 ~ ; ALL |
74842-01E00 |
US $5.90 |
