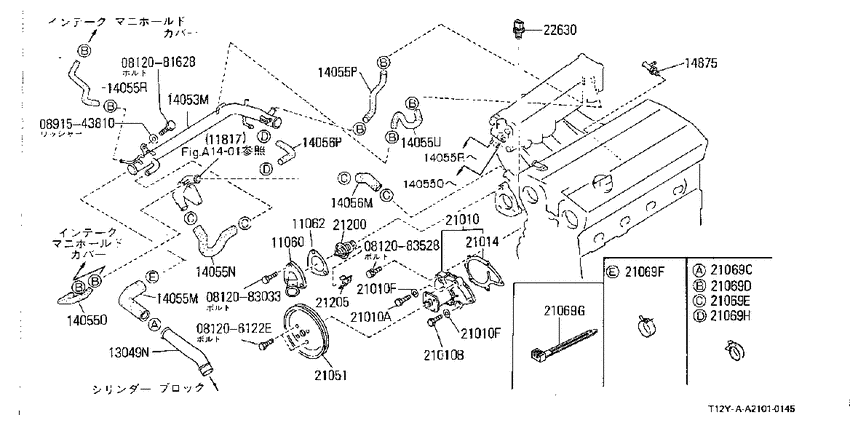

water pump & ｻ-ﾓｽﾀﾂﾄ (1988-01-01 ~ ; CA18D) Diagram Nissan AUSTER/STANZA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA18D
- transmission
- MT
- grade
- SPR/T
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206122E
|
081206122E
081206122E
Bolt-hexagon
|
081206122E |
— | ||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
0812083033
|
0812083033
08120-83033
Bolt-hexagon
|
08120-83033 |
— | ||
| replacement | |||||
|
0812083033
|
0812083033
08120-8302F
Bolt-hexagon
|
08120-8302F |
— | ||
|
0812083528
|
0812083528
0812083528 Bolt-hexagon |
0812083528 |
US $2.45 |
||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
11060
|
11060
11060-D4200
Outlet-Water
8801--01 ~ ; CA18D |
11060-D4200 |
— | ||
|
11062
|
11062
11062-D4200 Gasket-Water Outlet8801--01 ~ 9001--01; CA18D+CA18DT |
11062-D4200 |
US $4.03 |
||
| replacement | |||||
|
11062
|
11062
11062D5700 Gasket-Water Outlet8801--01 ~ 9001--01; CA18D+CA18DT |
11062D5700 |
US $4.30 |
||
|
11062
|
11062
11062D5700 Gasket-Water Outlet9001--01 ~ ; CA18D+CA18DT |
11062D5700 |
US $4.30 |
||
|
13049N
|
13049N
13049-55M00 Inlet-Water8801--01 ~ ; CA18D |
13049-55M00 |
US $52.99 |
||
|
14053M
|
14053M
2102151E01 PIPE-WATER8801--01 ~ ; CA18D |
2102151E01 |
US $152.55 |
||
|
14055M
|
14055M
21047-55M01 Hose-Water8801--01 ~ ; CA18D |
21047-55M01 |
US $19.68 |
||
|
14055N
|
14055N
14055-51E02 HOSE-WATER8801--01 ~ ; CA18D |
14055-51E02 |
US $17.71 |
||
|
14055P
|
14055P
14056-51E03 HOSE-WATER8801--01 ~ ; CA18D |
14056-51E03 |
US $15.26 |
||
|
14055Q
|
14055Q
14056-51E00 HOSE-WATER8801--01 ~ ; CA18D |
14056-51E00 |
US $11.81 |
||
|
14055R
|
14055R
14056-51E04 HOSE-WATER8801--01 ~ ; CA18D |
14056-51E04 |
US $12.82 |
||
|
14055U
|
14055U
14056-51E02 HOSE-WATER8801--01 ~ ; CA18D |
14056-51E02 |
US $15.26 |
||
|
14056M
|
14056M
14055-51E01 HOSE-WATER8801--01 ~ ; CA18D |
14055-51E01 |
US $4.03 |
||
|
14056P
|
14056P
1405555M03 Hose-Water8801--01 ~ ; CA18D |
1405555M03 |
US $5.90 |
||
|
14875
|
14875
14075-51E00 CONNECTOR-BYPASS8801--01 ~ ; CA18D |
14075-51E00 |
US $17.28 |
||
|
14875
|
14875
01691-00132 CONNECTOR-STRAIGHT8801--01 ~ ; CA18D |
01691-00132 |
US $11.66 |
||
|
14875
|
14875
01692-00341 CONNECTOR-INTAKE MANIFOLD WATER8801--01 ~ ; CA18D |
01692-00341 |
US $4.03 |
||
|
14875
|
14875
01692-00331 CONNECTOR-INTAKE MANIFOLD WATER8801--01 ~ ; CA18D |
01692-00331 |
US $2.45 |
||
|
14875
|
14875
11827-51E00 CONNECTOR-STRAIGHT8801--01 ~ 8807--01; CA18D; ﾊｲｼ |
11827-51E00 |
US $9.79 |
||
|
21010
|
21010
21010-06E25
PUMP ASSY-WATER
8801--01 ~ 8902--01; CA18D; [B106] |
21010-06E25 |
— | ||
| replacement | |||||
|
21010
|
21010
BA010-06E26
Pump assy-water
8801--01 ~ 8902--01; CA18D; [B106] |
BA010-06E26 |
— | ||
|
21010
|
21010
21010-06E26 PUMP ASSY-WATER8902--01 ~ ; CA16S+CA18I CA18D+CA18DT; [B106] |
21010-06E26 |
US $127.30 |
||
| replacement | |||||
|
21010
|
21010
BA010-06E26
Pump assy-water
8902--01 ~ ; CA16S+CA18I CA18D+CA18DT; [B106] |
BA010-06E26 |
— | ||
|
21010
|
21010
21012-D0103 Bolt8801--01 ~ ; CA18D; L=30.5 |
21012-D0103 |
US $1.73 |
||
|
21010
|
21010
21012-D0104 Bolt8801--01 ~ ; CA18D; L=20.5 |
21012-D0104 |
US $1.73 |
||
|
21010
|
21010
01323-00011 WASHER-LOCK8801--01 ~ ; CA18D |
01323-00011 |
US $1.90 |
||
|
21010A
|
21010A
21012-D0103 Bolt8801--01 ~ ; CA18D; L=30.5 |
21012-D0103 |
US $1.73 |
||
|
21010B
|
21010B
21012-D0104 Bolt8801--01 ~ ; CA18D; L=20.5 |
21012-D0104 |
US $1.73 |
||
|
21010F
|
21010F
01323-00011 WASHER-LOCK8801--01 ~ ; CA18D |
01323-00011 |
US $1.90 |
||
|
21010F
|
21010F
01323-00011 WASHER-LOCK8801--01 ~ ; CA18D |
01323-00011 |
US $1.90 |
||
|
21014
|
21014
21014-D4200 Gasket-Water Pump8801--01 ~ 9002--01; CA18D |
21014-D4200 |
US $5.04 |
||
|
21014
|
21014
21014-D5700 Gasket-Water Pump9002--01 ~ 9010--01; CA18D+CA18DT |
21014-D5700 |
US $5.04 |
||
|
21014
|
21014
21014-D5701 Gasket-Water Pump9010--01 ~ ; CA18D+CA18DT |
21014-D5701 |
US $5.04 |
||
|
21051
|
21051
21051-06E00 PULLEY-FAN & WATER PUMP8801--01 ~ ; CA18D; |
21051-06E00 |
US $81.36 |
||
|
21069C
|
21069C
01555-00291
CLAMP-HOSE
8801--01 ~ ; CA18D |
01555-00291 |
— | ||
| replacement | |||||
|
21069C
|
21069C
0155500911 CLAMP-HOSE8801--01 ~ ; CA18D |
0155500911 |
from US $2.98 |
||
|
21069D
|
21069D
01555-00181
CLIP
8801--01 ~ ; CA18D; |
01555-00181 |
— | ||
| replacement | |||||
|
21069D
|
21069D
01555-00791 CLAMP8801--01 ~ ; CA18D; |
01555-00791 |
US $4.57 |
||
|
21069E
|
21069E
01555-00231
CLAMP
8801--01 ~ ; CA18D |
01555-00231 |
— | ||
| replacement | |||||
|
21069E
|
21069E
0155500851 CLAMP8801--01 ~ ; CA18D |
0155500851 |
from US $2.98 |
||
|
21069F
|
21069F
21514-V7000 Clamp-Hose8801--01 ~ ; CA18D |
21514-V7000 |
US $4.61 |
||
| replacement | |||||
|
21069F
|
21069F
01558-00271 CLAMP-HOSE8801--01 ~ ; CA18D |
01558-00271 |
US $3.31 |
||
|
21069G
|
21069G
01552-00421
CLAMP-HOSE,A
8801--01 ~ ; CA18D |
01552-00421 |
— | ||
| replacement | |||||
|
21069G
|
21069G
0155200083 CLIP-WIRING HARNESS8801--01 ~ ; CA18D |
0155200083 |
US $2.21 |
||
|
21069H
|
21069H
01555-00231
CLAMP
8801--01 ~ ; CA18D |
01555-00231 |
— | ||
| replacement | |||||
|
21069H
|
21069H
0155500851 CLAMP8801--01 ~ ; CA18D |
0155500851 |
from US $2.98 |
||
|
21200
|
21200
21200V0201
Thermostat Assy
8606--01 ~ ; ALL; 82C |
21200V0201 |
— | ||
|
21200
|
21200
21200V0206
Thermostat Assy
8606--01 ~ ; *ALL; 88C ｶﾝﾁﾖｳ |
21200V0206 |
— | ||
|
21205
|
21205
21205-D4200 Holder-Thermostat8606--01 ~ ; ALL |
21205-D4200 |
US $1.01 |
||
|
22630
|
22630
22630-V5010
Engine Coolant Temperature Sensor
8801--01 ~ ; CA18D |
22630-V5010 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR8801--01 ~ ; CA18D |
2263051E02 |
from US $38.79 |
||
