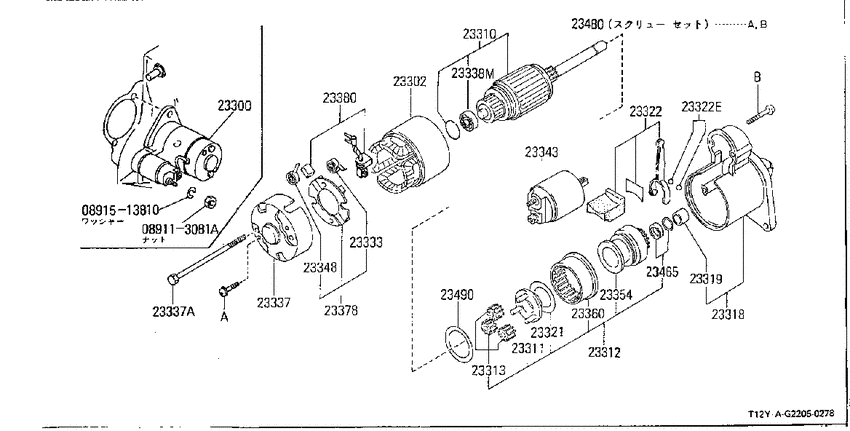

Starter motor (1988-01-01 ~ ; 寒冷地仕様; *CA18D.MT) Diagram Nissan AUSTER/STANZA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- CA18D
- transmission
- MT
- grade
- SPR/T
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23302
|
23302
23302-42L70 Yoke Assy8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23302-42L70 |
US $259.20 |
||
|
23302
|
23302
23302-D0210 Yoke Assy8801--01 ~ ; CA18D.MT; ﾐﾂﾋﾞｼ |
23302-D0210 |
US $259.20 |
||
|
23310
|
23310
23310-01N11 Armature Assy9006--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-01N11 |
US $671.18 |
||
|
23310
|
23310
23310-42L11 Armature Assy8801--01 ~ ; CA18D.MT; ﾐﾂﾋﾞｼ |
23310-42L11 |
US $293.11 |
||
|
23310
|
23310
23310-42L70 Armature Assy8801--01 ~ 9006--01; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23310-42L70 |
US $382.32 |
||
|
23311
|
23311
23312-42L75 Shaft-Pinion8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23312-42L75 |
US $69.70 |
||
|
23312
|
23312
23312-20R10 Pinion Assy8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23312-20R10 |
US $335.59 |
||
|
23313
|
23313
23361-42L70 Planet Gear8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-03E11 CASE ASSY-GEAR8801--01 ~ ; CA18D.MT; ﾐﾂﾋﾞｼ |
23318-03E11 |
US $106.99 |
||
|
23318
|
23318
23318-D0510 Case Assy-Gear8801--01 ~ 9006--01; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23318-D0510 |
US $88.85 |
||
|
23318
|
23318
23318-D0513 Case Assy-Gear9006--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-D0513 |
US $121.68 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case8801--01 ~ ; CA18D+CA18DT; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23321
|
23321
23320-42L70 Washer8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23320-42L70 |
US $9.36 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333M1510 Spring-Brush8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear9006--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23337-42L70 Cover Assy-Rear8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23337-42L70 |
US $45.65 |
||
|
23337
|
23337
23340-20P10 Bolt-Through8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
233404W01A |
US $4.03 |
||
|
23337
|
23337
23340-M8010 Bolt-Through8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338M
|
23338M
23319-42L70 Bearing-Gear Case8801--01 ~ 9006--01; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23319-42L70 |
US $15.70 |
||
|
23338M
|
23338M
23338-01N10 Metal-Rear Cover9006--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-01N10 |
US $9.94 |
||
|
23343
|
23343
23343-D0510 Switch Assy-Magnetic8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23343-D0510 |
US $181.44 |
||
|
23343
|
23343
23343M8011 Switch Assy-Magnetic8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23343M8011 |
US $126.43 |
||
|
23348
|
23348
23333-42L71 Spring8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23333-42L71 |
US $4.03 |
||
|
23354
|
23354
23354-20R10 Clutch Assy8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23354-20R10 |
US $152.64 |
||
|
23354
|
23354
23354-D0210 Clutch Assy8801--01 ~ ; CA18D.MT; ﾐﾂﾋﾞｼ |
23354-D0210 |
US $165.60 |
||
|
23360
|
23360
23360-42L70 Gear8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23360-42L70 |
US $22.75 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23378-42L70 |
US $60.19 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23378-M8011 |
US $37.87 |
||
|
23380
|
23380
2338042L70 Brush-Plus8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
2338042L70 |
US $8.93 |
||
|
23380
|
23380
23380M8310 Brush-Plus8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion8801--01 ~ ; CA16S+CA18I+CA18D.MT; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0100 Screw Set8606--01 ~ ; ALL; ﾋﾀﾁ |
23480-M0100 |
US $4.18 |
||
|
23480
|
23480
23480-M0110 Screw Set8606--01 ~ ; ALL; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
23490
|
23490
23385-42L70 Packing Set8801--01 ~ ; *CA18D.MT; ﾐﾂﾋﾞｼ ｶﾝﾁ ﾖｳ |
23385-42L70 |
US $4.18 |
||
